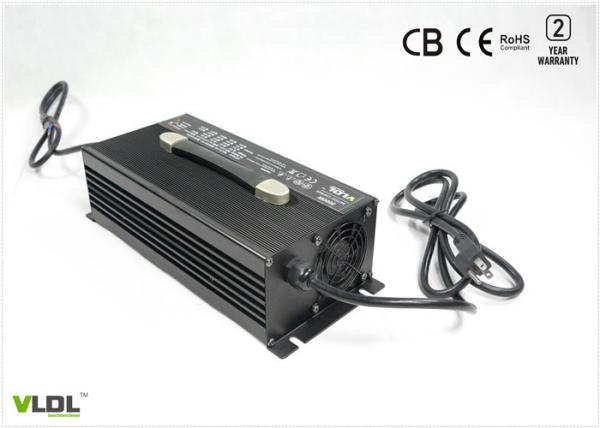

2KW 24V 60A AGM / GEL Quick Battery Smart Charger Portable With Aluminum Casing

Brief Description:

24V 60A AGM / GEL deep cycle battery charger, input with worldwide 110 to 230Vac and rated output voltatge is 24V 60A. Smart max charging voltage is 28.8 / 29.4V for SLA type batteries or AGM batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) 100% full load burn-in test.

6) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 28.8 / 29.4 volt

4) Floating voltage: customized

5) Max output current (CC): 60 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Battery Charger Knowledge

Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.
