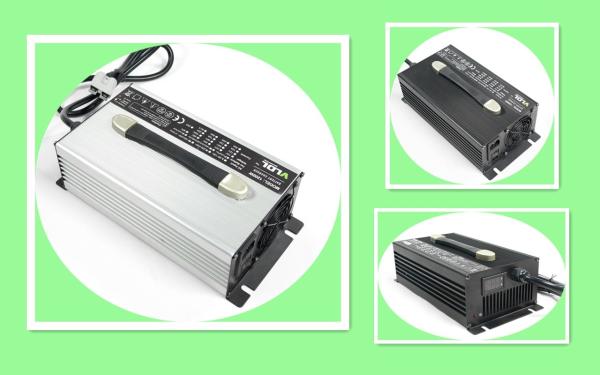

Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Smart 48V 18A Lithium Battery Charger With CAN Communication Port
Specifications
Brand Name :
VLDL
Model Number :
VL4818LC
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
TT, Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
7-10 days
Packaging Details :
4pcs/carton
Housing :
Aluminum
Dimension :
260×150×90 MM
Net Weight :
4.5 KG
AC Input :
110 / 230 Vac
DC Output :
Rated 48V 18A, Max 58.4V or 54.6V
Portable :
Yes
Charge Battery :
Lithium-ion
Communication :
CAN or RS485
Manufacturer :
DANL
Warranty :
2 Years
Description

48V 18A Lithium Battery Charger with CAN communication port

Descriptions:

110V or 220Vac single input.
48V 18A rated output.

With CAN or RS485 communication port
54.6V / 58.4V customized max charging voltage.
Smart CC CV charging.
Small size.
Aluminum case.
High reliability.

Specifications:
AC input voltage: 110V or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 18A
Max charging voltage: customized 54.6V / 58.4V
Dimensions(LxWxH): 260 x 150 x 90 mm
Net weight: 5.0 KG
Housing: Aluminum
Color: Black or silver

Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.

CAN bus or RS485 communication port.

Smart and Automatic 4 Steps Charging.

Aluminum Casing, Light Weight, Portable.

High Quality, Factory Price.

Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Applications:

Automatic Charging For 48V Lithium ion, LiFePO4 Batteries.

Suit for E-bikes, E-scooters.

Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.

Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.

Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

110 / 230V

Frequency:

47~63HZ

 VL1260L 12V LiFePO4 Battery 14.6V 60A CC5~8%
VL1260 12V Lead-acid Battery 13.5V 14.7V 60A CC20%
VL1460 14V AGM Battery 13.5V 14.4V 60A CC20%
VL1660L 16V LiFePO4 Battery 18.2V 60A CC5~8%
VL2435LM 24V Li-MnO2 Battery 29.4V 35A CC5~8%
VL2435L 24V LiFePO4 Battery 29.2V 35A CC5~8%
VL2435 24V Lead-acid Battery 27.6V 29.4V 35A CC20%
VL3620LM 36V Li-MnO2 Battery 42V 20A CC5~8%
VL3620L 36V LiFePO4 Battery 43.8V 20A CC5~8%
VL3620 36V Lead-acid Battery 41.4V 44.1V 20A CC20%
VL4818LM 48V Li-MnO2 Battery 54.6V 18A CC5~8%
VL4818L 48V LiFePO4 Battery 43.8V 18A CC5~8%
VL4818 48V Lead-acid Battery 55.2V 58.8V 18A CC20%
VL6015L 60V LiFePO4 Battery 73V 15A CC5~8%
VL6015 60V Lead-acid Battery 67.5V 73.5V 15A CC20%
VL7213L 72V LiFePO4 Battery 87.6V 13A CC5~8%
VL7213 72V Lead-acid Battery 81V 88.2V 13A CC20%
VL8411L 84V LiFePO4 Battery 102.2V 11A CC5~8%
VL8411 84V Lead-acid Battery 94.5V 102.9V 11A CC20%
VL9610L 96V LiFePO4 Battery 116.8V 10A CC5~8%
VL9610 96V Lead-acid Battery 108V 117.6V 10A CC20%
Note: customized input / output / plug type / connectors are available.


Factory pictures:

Smart 48V 18A Lithium Battery Charger With CAN Communication Port
