Specifications
Brand Name :
HKANON
Model Number :
3.2V 75Ah
Certification :
CE RoHS MSDS UN38.3
Place of Origin :
CN
MOQ :
12PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
10K/Month
Packaging Details :
12PCS/Carton
Name :
3.2v 72ah 75ah lifepo4 batteri cell
Nominal voltage :
3.2V
Nominal capacity :
75Ah
Cell rate :
3C 225A
Size :
201*131*37.2mm
Weight :
1.91kgs
Description

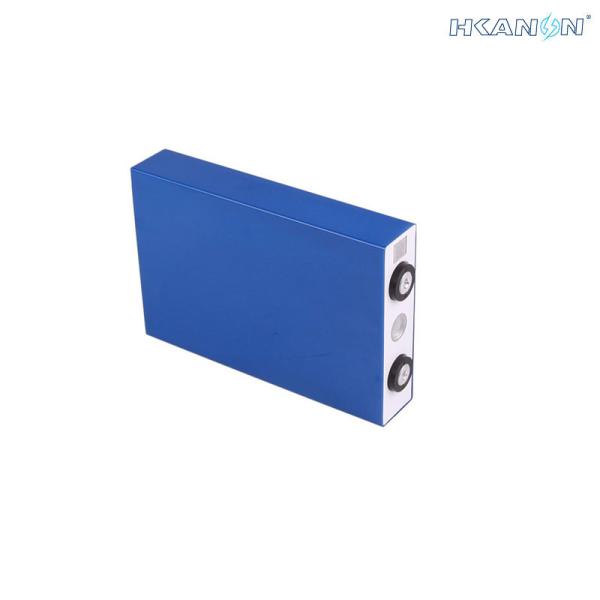

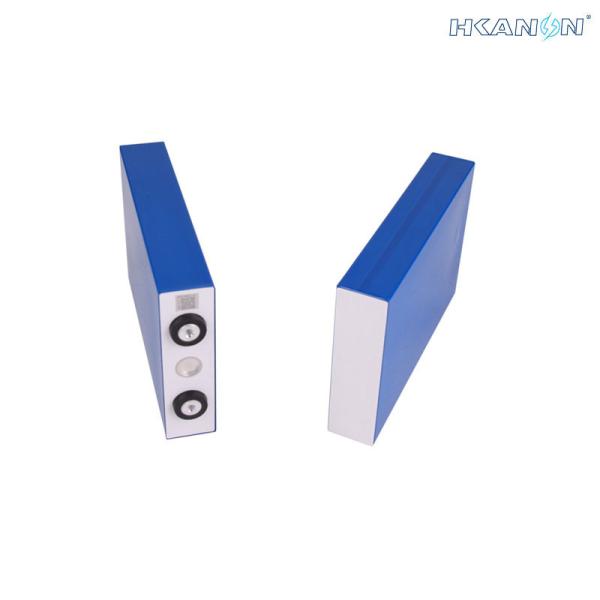

Flat Prismatic LFP Li Ion Battery 3.2V 72Ah 75Ah EV LiFePO4 Lithium Batteri Cell

Lithium batteries can be used on many traffic tools

(1) Energy storage equipment: energy storage equipment based on solar energy, wind energy, geothermal energy, ocean energy power generation system; peak shaving of power grid; UPS of uninterruptible power system; use of solar energy battery as energy storage equipment (BYD is already producing such batteries) Lighting, etc.


(2) Power tools High-power power tools (wireless); electric hammers, electric drills, weeders, etc.;


(3) Light electric vehicle electric motor vehicles, electric bicycles, recreational vehicles, golf carts, electric pushers, cleaning vehicles; hybrid electric vehicles (HEV), the latest 2-3 years of goals, forklifts, forklifts and other power sources;


(4) Small equipment Medical equipment: electric wheelchairs, electric scooters); toys (remote control electric planes, cars, boats?);


(5) Other small appliances Miner's lamp;


(6) Starting the power supply: starting power supply for automobiles, motorcycles, tractors, diesel engines, railway diesel locomotives, electric locomotives, and buses;


(7) Fixed power supply: mainly used for communication, mobile base station, telecommunications, railway transportation, electric power, finance, power plants, computer systems as a backup power supply for protection and automatic control;


(8) Military field: military on-site electronic command system, sea (submarine, underwater robot), land (Army soldier system, machine warrior), day (unmanned aircraft), air (satellite, spacecraft) arms.

Specifications
Nominal voltage 3.2V
Nominal Capacity 75Ah
Stanadard Charge Current 15A (0.2C)
Max Charge Current 35A(0.5C)
Max continuous Discharge Current 3C-225A
Charge Cut-off Voltage 3.65V
Discharge Cut-off Voltage 2.5V
Weight 2.05kgs
Dimensions 201*131*37.2mm
Operating Temperature

Charging: 0°C ~ 45°C,

Discharging: -20°C ~ 60°C

(The cell surface temperature cannot exceed 70°C)
Cycle Life at 0.2C Discharge, 100% DOD ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
Accessories BMS ,charger ,bolts ,connectors

Flat Prismatic Lifepo4 Battery Cells High Safety Performance Climate ResistanceFlat Prismatic Lifepo4 Battery Cells High Safety Performance Climate ResistanceFlat Prismatic Lifepo4 Battery Cells High Safety Performance Climate ResistanceFlat Prismatic Lifepo4 Battery Cells High Safety Performance Climate Resistance

Flat Prismatic Lifepo4 Battery Cells High Safety Performance Climate Resistance

Flat Prismatic Lifepo4 Battery Cells High Safety Performance Climate Resistance

Flat Prismatic Lifepo4 Battery Cells High Safety Performance Climate Resistance

Other products

Nominal Capacity Nominal Voltage Dimension (H*W*T) Weight Max Continuous Discharge Current
50Ah 3.2V 186*136*31(+/-1) mm 1.41+/-0.1kg 3C(150A)
100Ah 3.2V 221*142*61 (+/-1) mm 3.15+/-0.1kg 3C (300A)
200Ah 3.2V 280*180*69 (+/-1) mm 5.8+/-0.2kg 3C(600A)
300Ah 3.2V 308*360*53 (+/-1) mm 9.5+/-0.3kg 1C(300A)
400Ah 3.2V 285*400*71(+/-1)mm 14.3+/-0.3kg 1C(400A)
Cycle Life: > 2000 times @ 80% DOD, retention capacity ≥ 80%
