Specifications
Brand Name :
HKANON
Model Number :
3.2V 10AH
Certification :
CE
Place of Origin :
CN
MOQ :
100PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10K/Month
Delivery Time :
5-8 work days
Name :
pouch cell 10ah
Material :
3.7v nmc pouch cell
Cell size :
9.5±0.5(T) x 90±2(W) x 130±2(L)
Cell weight :
184g
Internal resistance :
≤7mΩ
Type :
9590130
Description

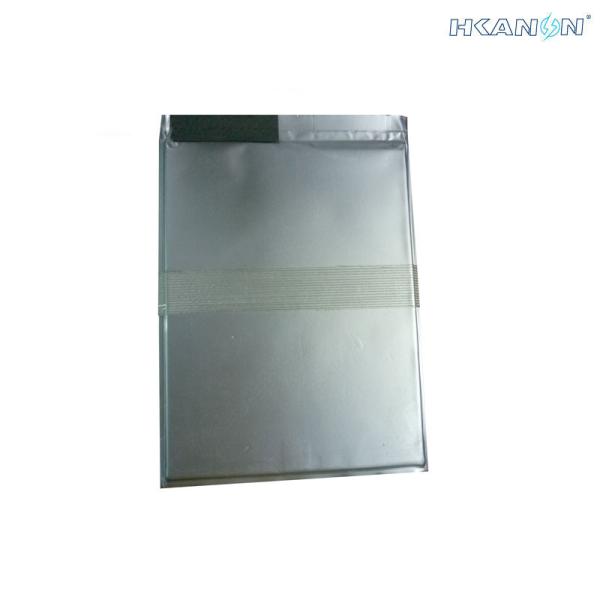

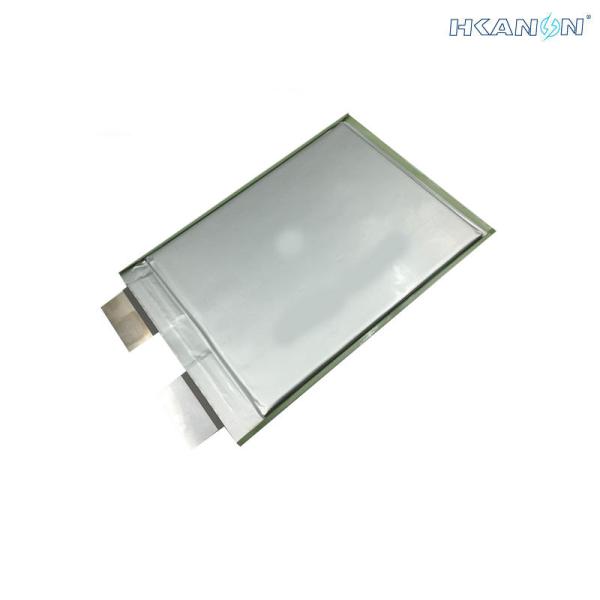

Rechargeable Lipo 3.7V 10Ah NMC Lithium Li-Ion Pouch Cell

Specifications nmc pouch cell
Nominal voltage 3.7V
Nominal capacity 10Ah
Standard charge current 5A 0.5C
Fast charge current 30A 3C
Max charge full voltage 4.2V
Internal resistance ≤7mΩ
Charge temperature 0~40℃
Discharge temperature -20~50℃
Storage temperature -20~45℃

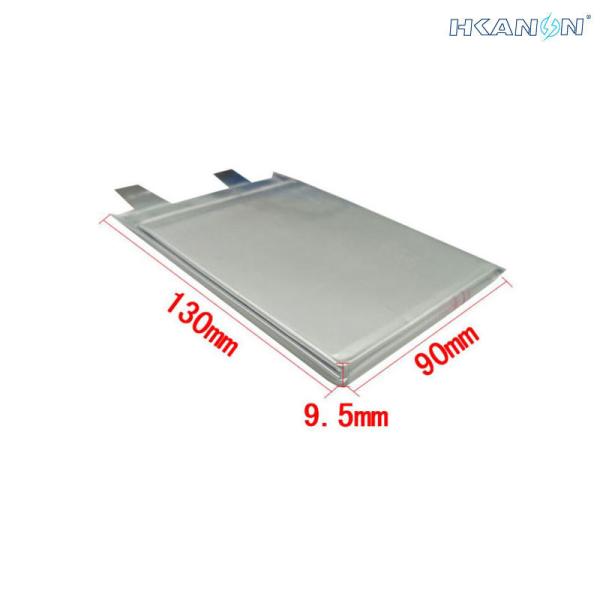

Size 9.5±0.5(T) x 90±2(W) x 130±2(L)

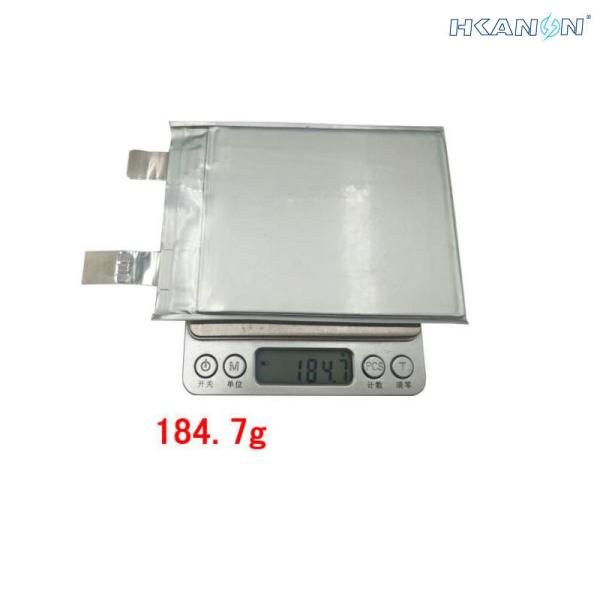

Weight 184g(±10)

Pictures

Polymer Rechargeable Lifepo4 Battery Cells 3.7v 10ah Nmc High Working VoltagePolymer Rechargeable Lifepo4 Battery Cells 3.7v 10ah Nmc High Working VoltagePolymer Rechargeable Lifepo4 Battery Cells 3.7v 10ah Nmc High Working VoltagePolymer Rechargeable Lifepo4 Battery Cells 3.7v 10ah Nmc High Working Voltage

The rules for use and storage of batteries
Protect from improper handling.
Do not insert with opposite polarity, follow the signs. If the batteries are inserted in reverse, can cause a short-circuit or charging.
Prevent short-circuiting. If possitive (+) and negative (-) battery terminals are connected, short-circuiting happens.
Before installing, clean the terminals of battery and the terminals facilities.
The LiFePO4 should be always mounted with the terminals facing upwards.
Do not heat excessively. – batteries operate at temperatures according to the specifications.
Do not weld the cells.
Do not disassemble. When open may be contact with different parts of the battery harmful.
Do not distort. Batteries should not be compressed, punctured or damaged in any way.
Do not dispose of in fire.
Do not expose to water or excessive humidity.
Keep away from children. Beyond their reach, it is necessary first of all to keep away batteries which can be swallowed. In addition, children should not be allowed replacement of batteries without adult supervision.
Do not incase or modify. Any modifying of the battery may cause block safety ventilation mechanism. Any adjustments should consult the dealer.
Unused batteries should be stored charged and keep them away from metal subjects, which can make short-circuiting the battery. Alreary unpackage units should not be mixed and stored with unused batteries.
Avoid extreme humidity (over 95%) High temperature or humidity may worsening of battery characteristics and / or corrosion of the surface.
Do not storage / expose the battery to direct sunlight, in places where they may be exposed to rain, excessive heat such as radiators or heaters.
Batteries stored in well-ventilated and dry environment, ideally enclosed in a protective case.
During storage, keep the temperature within the range according to the specifications of a particular article.
Do not mix with other materials.
Do not stack cardboard box with batteries. When stacking may cause deformation of the battery in the lower layers and the subsequent flow of electrolyte.
For additional transportation / handling and packing materials, choose the method of packaging to prevent unintentional electrical contact and corrosion terminals, providing protection against environmental influences and mechanical damage.
Considerate handling of the boxes. Rough handling can cause a short circuit or damage.
Ensure proper circulation of stocks, follow FIFO system (First In, First Out).
Check the voltage of the cell every 2 month. Charge the cell if the voltage dropped to a minimum value of voltage
