LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
Specifications
Brand Name :
Sinopoly
Model Number :
LFP-100Ah
Certification :
CE RoHS MSDS UN38.3
Place of Origin :
China
MOQ :
4PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10K/Month
Delivery Time :
5-8 Work days
Packaging Details :
100PCS/Innder Box
Name :
lifepo4 3.2v 100ah polymer prismatic pouch battery cell
Nominal capacity :
100Ah
Nominal voltage :
3.2V
Cell rate :
3C
Size :
221x142x61 mm
Weight :
3.2kgs
Description

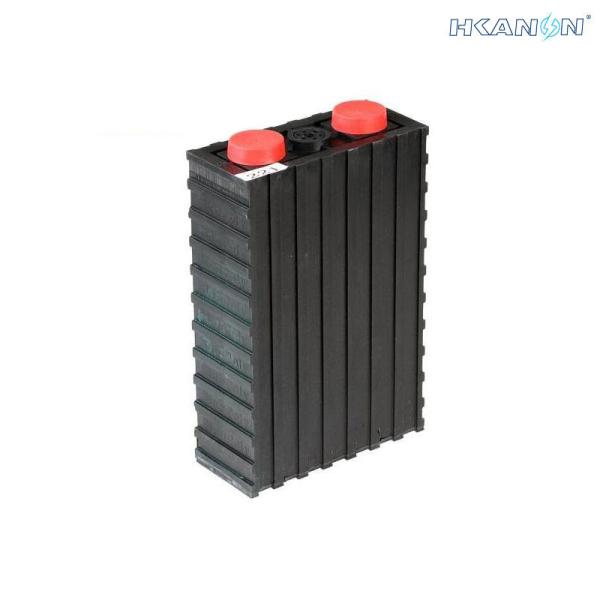

LFP Li Ion Batteri LiFePO4 3.2V 100Ah Polymer Prismatic Pouch Battery Cell

Specifications
Model SP-LFP100AHA
Manufacturer Sinopoly
Nominal capacity 100Ah
Nominal voltage 3.2V
operational voltage 2,8 - 3,65 V
The maximum charging voltage for initial charge 3,7 V.
Recommended subsequent charging 3.65V
The minimum voltage 2.65V
Maximum discharge current 3C continously.
Operating temperature

-20°C up to 55°C (discharging)

0°C up to 55°C(charging)
Size 221x142x61 mm,
Weight 3.25kgs


LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery

LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery

These battery cells are suitable for all traction applications including passenger cars. Fully complies also for stationary applications - such as energy storage.
There is no Selfdischarging effect.
Can be recharged at any state of discharge - no memory effect
LiFePO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen

The batteries are charged conservation.
To be able to use it must first be charged with a low current.
The first charge should not exceed 0.3 C - eg for 100Ah cell is 33A.

Other products

Nominal Capacity Nominal Voltage Dimension (H*W*T) Weight Max Continuous Discharge Current
100Ah 3.2V 221*142*61 (+/-1) mm 3.15+/-0.1kg 3C (300A)
200Ah 3.2V 280*180*69 (+/-1) mm 5.8+/-0.2kg 3C(600A)
300Ah 3.2V 308*360*53 (+/-1) mm 9.5+/-0.3kg 1C(300A)
400Ah 3.2V 285*400*71(+/-1)mm 14.3+/-0.3kg 1C(400A)
Cycle Life: > 2000 times @ 80% DOD, retention capacity ≥ 80%

LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery

Applications

LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery

LFP Lithium Iron Phosphate Prismatic Cells , High Discharge Lithium Polymer Battery
