15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS
Specifications
Brand Name :
HKANON
Model Number :
HK-144V200Ah
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/Month
Delivery Time :
25 work days
Packaging Details :
1PC/Wooden Case
Name :
lifepo4 144v battery pack
Nominal capacity :
200Ah
BMS :
CANBUS
Case :
Metal Iron Box
Application :
EV Car
Size :
Customized
Description

30KWH 15KW Lithium Li Ion 144v 200ah LiFePO4 Battery Pack with CANBUS BMS

Electrical Characteristics

Nominal Voltage - 144V

Nominal Capacity – 200Ah

Energy - 28.8KWH

Internal Resistance - ≤50mΩ

Cycle Life -> 2000 cycles @1C 100%DOD( see below picture )

Months Self Discharge - <9%

Efficiency of charge - 100% @0.2C

Efficiency of discharge - 96~99% @1C

Standard Charge

Charging voltage - 167 +/- 0.1V

Standard Charger current - 60A

Fast charge current - 1C 200A

Standard Discharge

Continuous Current - 100A

Max. Pulse Current - 150A (<5s)

Environmental

Charge Temperature - 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity

Discharge Temperature - -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity

Storage temperature - 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity

Mechanical

Body casing – Metal Iron Box

Application

EV Car

About BMS knowledge

Measurement :
Cell and Pack voltage
Cell and Pack temperature
Current measurement by shunt and Hall effect sensor

Management :
Hundreds for battery modules in series/parallel
Cell Protection
Thermal Management
Balancing passive or active
Redistribution (active balancing)
Precharge system
Life-Line for safety feature

Evaluation :
Accurate State of Charge (SOC)
Accurate State of Health (SOH)
Depth of Discharge (DOD)
Internal Resistance
Residual Capacity

External Communication :
Communication by CAN bus, CAN Open, RS485, RS232, Ethernet, WIFI, 4G.
Charger Management using CAN Bus
Cloud-based Data logging using API REST
Cloud-based Remote monitoring

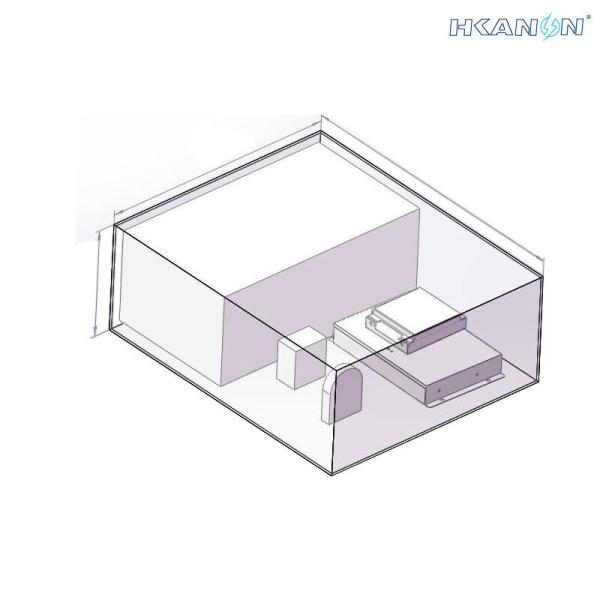

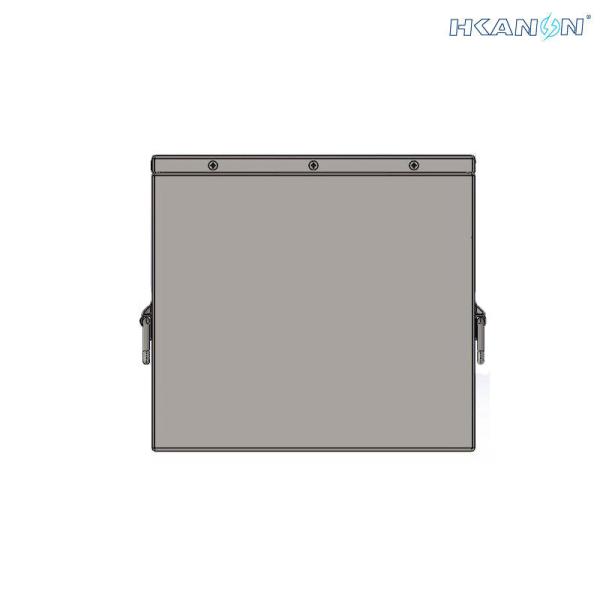

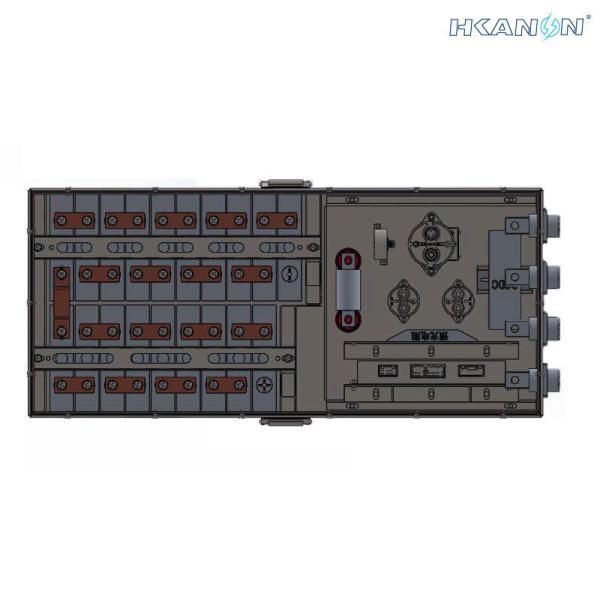

Pictures

15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS15KW 30KWH EV Car Battery Pack , High Capacity Lithium Ion Battery With CANBUS BMS

Lithium for E-Mobility and last Mile
minibus electrique
Mobility is at the heart of our lives. The new environmental rules are an opportunity for everyone to live better on our planet.
We designs solutions to switch to electricity easily.
We equip many commercial vehicles, recreational vehicles, industrial trucks

We offers a range of 12V, 24V and 48V Lithium-Ion battery pack to meet most of our customer needs.
Our battery offer a high level of safety through the use of Lithium Iron Phosphate cylindrical cells and a built-in BMS. We can be assembled in series (4S maximum) and parallel (10P maximum) to increase operating voltages and energy stored.
Batteries can be discharged up to 100% and have a minimum operation life of 2000 charge/discharge cycles.

Batteries are advanced energy solutions for traction applications requiring high capacity and/or high voltage (up to 700 volts). The modules can be connected in series or parallel to increase capacity or voltage.
Up to 255 modules can be assembled in series or parallel. Batteries are ideal solutions for advanced energy systems requiring high voltage or capacity. This lightweight, flexible and scalable system greatly simplify deployment and operation.
