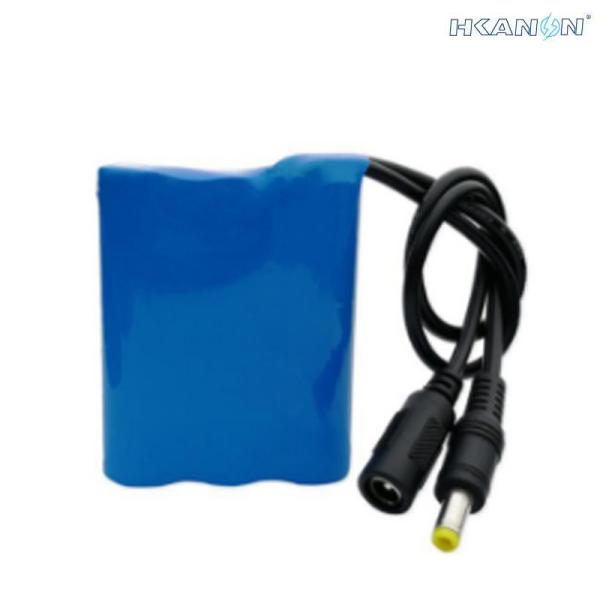

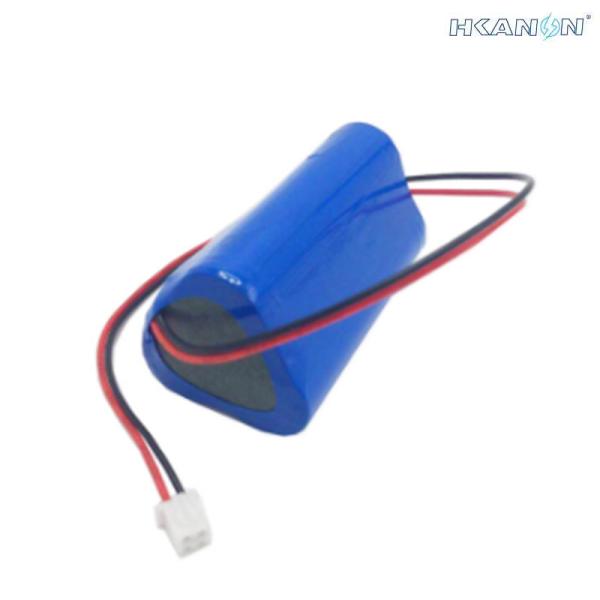

High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
Specifications
Brand Name :
HKANON
Model Number :
HN-12V 2200mAHA
Certification :
CE, UL, RoHS, MSDS, UN38.3
Place of Origin :
Shenzhen, China
MOQ :
10Pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000Pcs/Month
Delivery Time :
10 Days
Packaging Details :
1PC/1 Carton
Product name :
12V 50mAh 100mAh 300mAh 500mAh 1200mAh 2000mAh 2200mAh Rechargeable Lithium ion Battery Pack
Cell inside :
Polymer lithium / NCM lithium / LiFePO4 lithium
Chemistry :
Lithium
Application :
LED lighting, Monitor, CCTV Camera, etc.
Ingress protection :
IP65
BMS :
Included
Description

12V 50mAh 100mAh 300mAh 500mAh 1200mAh 2000mAh 2200mAh Rechargeable Lithium ion Battery Pack

Product Feature and Advantage:

1. Large capacity. 18650 lithium battery capacity is generally between 900mAh - 2600mAh. 18650 lithium battery pack is casually can break through 5000mAh.

2. Long life. Cycle life can reach more than 500 times.

3. High safety performance. No explosion, no combustion, no poison, no pollution.

4. High voltage. Nominal voltage is 3.7v.

5. No memory effect. Before charging Do not have to discharge the remaining electricity, easy to use.

6. Small internal resistance. Greatly reduces the battery self power consumption.

Product application:

Solar power system, Notebook, walkie-talkie, instrumentation, audio equipment, aeromodelling, toys, cameras, digital cameras, LED light, electric tools , robot, GPS, radio, portable source, loudspaker box, unmanned aerial vehicle, torch, aeromodelling and other electronic equipment.

Product storage:

Battery storage environment should be clean, dry, ventilated room, should avoid contact with corrosive substances, should be far away from fire and heat source.

SPECIFICATION

Rated Capacity 2200mAh (0.2CA Discharge)
Rated Voltage 12V
Internal Resistance ≤60mΩ
Input Voltage 12.6V
Output Voltage 12.6-9V
Standard Charging Current 0.2C
Max charging current 0.5C
Standard Discharging Current 1C
Max Discharging Current 2C
Structure 3S1P + PCM
Size Customized
Operational Temperature charge (0 ~ 45°C)
discharge (-20 ~ 60°C)
Storage Temperature within a month (-5 ~ 35°C)
within six months (0 ~ 35°C)
Certificate CE, UL, RoHS, MSDS, UN38.3

INTERIOR AND EXTERIOR GALLERY

High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance

High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance

High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance

OTHER RELATED PRODUCTS

Rechargeable LiFePO4 Battery pack for Solar Street Light

Voltage

(V)

Capacity

(Ah)

Stored energy

(Wh)

 Dimension
(mm)		 Battery cells Built in PCM
(Yes/No)
12.8 6.0 76.8 110*150*30 IFR26650 Yes
12.8 9.0 115.2 160*150*30 IFR26650 Yes
12.8 12.0 153.6 210*150*30 IFR26650 Yes
12.8 15.0 192 132*275*30 IFR26650 Yes
12.8 18.0 230.4 160*275*30 IFR26650 Yes
12.8 20.0 256 190*275*30 IFR26650 Yes
12.8 24.0 307.2 210*275*30 IFR26650 Yes
12.8 27.0 345.6 250*275*30 IFR26650 Yes
12.8 30.0 384 270*275*30 IFR26650 Yes
12.8 33.0 422.4 295*275*30 IFR26650 Yes
12.8 40.0 512 350*275*30 IFR26650 Yes
12.8 50.0 640 460*275*30 IFR26650 Yes
12.8 60.0 768 270*275*60 IFR26650 Yes
12.8 70.0 896 295*275*60 IFR26650 Yes
12.8 80.0 1024 350*275*60 IFR26650 Yes

Note: Our 3.2V 10Ah,12Ah, 20Ah battery cells can be assembled as hight power LiFePO4 modules.

It can be also used individully and can be connected in serial or parallet to achieve ideal voltage

and capacity

High Voltage 12V Rechargeable Battery Pack Large Capacity High Safety Performance
