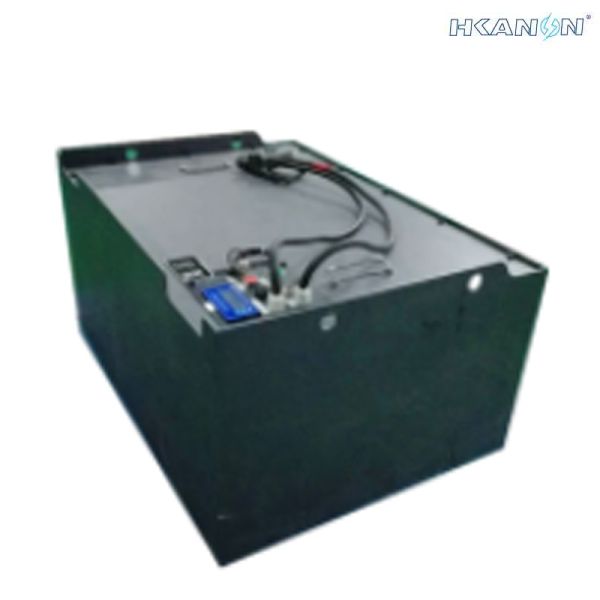

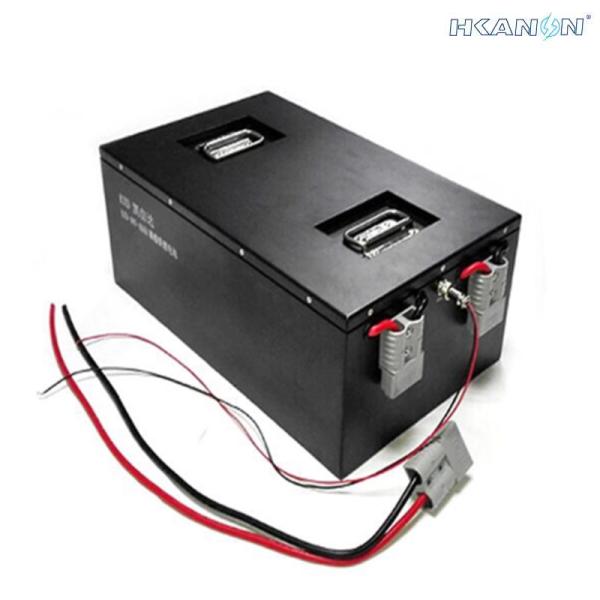

LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion
Specifications
Brand Name :
HKANON
Model Number :
HN-LFP 36V 430AHA
Certification :
CE, UL, RoHS, MSDS, UN38.3
Place of Origin :
Shenzhen, China
MOQ :
1Pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000Pcs/Month
Delivery Time :
10 Days
Packaging Details :
1PC/1 Wooden Box
Product name :
1KW 3KW 5KW 8KW 10KW 2V 12V 24V 36V 48V 80V Forklift Battery Lithium ion Power Energy
Cell inside :
12S5P-3.2V 86Ah
Chemistry :
LiFePO4
Application :
Electric forklift, AGV, UTV, Electric Stacker Cars, Electric Pallet Trucks, Road Vehicles
Ingress protection :
IP65
BMS :
Included
Description

1KW 3KW 5KW 8KW 10KW 2V 12V 24V 36V 48V 80V Forklift Battery Lithium ion Power Energy

HKANON traction lithium ion batteries as a DC power widely supplied in forklifts, tractors and other equipment. Widely used in airports,stations, ports, vegetables and fruit market, factory warehouses and so on. At the same time, it widely used in buses, sports and entertainment as a clean and pollution-free DC power supply. Battery size in line with Chinese GB standards, the British BS standards, the Germanic DIN standard, also respectively passed DIN / N60254-2 and IEC60254-2 standards.

Features

  • High Energy density, long cycle life, reliable safety
  • High lifespan: two thousand cycles and more
  • Ultra safe Lithium Iron Phosphate chemistry(no thermal run-away, no fire or explosion risks)
  • No lead, no heavy metal, no toxic element
  • Excellent temperature robustness(-20℃ up to +60℃ )
  • Flexbile deployment: combining in parallel and series
  • Constant power during discharge(very low internal resistance)
  • Energy efficiency>96%
  • Very low self discharge(<3% per month)
  • No memory effect
  • Certificate: CE, RoHs, MSDS, UN38.3

LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion

SPECIFICATIONS

Items MODEL : HN-LFP 48V 344AHA
Cell Technology LiFePO4
Battery Module Capacity (KWh) 17KWH
Battery Module Voltage (Vdc) 51.2V
Battery Module Capacity (AH) 344Ah
Battery Module Cell Quantity in Series (pcs) 16 series with 4 parallel
Battery Module Charge Voltage (Vdc) 58.4
Battery System Charge Current (Standard) 60A
Battery Module Charge Current (Normal) 60A
Battery Module Charge Current (Max.) 150A
Battery Module Discharge lower-Voltage (Vdc) 43.2V
Battery System Discharge Current (Standard) 1C @ 344Ah
Battery Module Discharge Current (Normal) 1C @ 344Ah
Battery Module Discharge Current (Max.) 2C @ 344Ah 10 seconds
Efficiency 98%
Depth of Discharge 100%
Dimension (L*W*H, mm) 1000*700*460 mm
Additional weight/ Battery Weight 170KG/580 Kg
Communication Option of CANBUS OR RS485/RS232
Protection Class IP65
Operation Cycle Life Over 2500 times
Operation Life 5+ years
Operation Temperature ~10-50°C
Storage Temperature minus ~20 - 60 °C
Products certificates ISO9001, UL 1642, CE, RoHS
Transfer Certificates UN38.3 , MSDS

INTERIOR AND EXTERIOR GALLERY

LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion

LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion

LiFePO4 Electric Forklift Battery Lithium Ion Power Energy No Explosion

OTHER RELATED PRODUCT

Battery type Power(kwh) Size(mm) Weight(kg) Voltage Capacity
12V 270Ah 3.46 430*380*200 36 12.8 270
12V 350Ah 4.48 530*380*200 45 12.8 350
12V 450Ah 5.76 630*380*200 52 12.8 450
12V 280Ah 3.58 380*380*290 36 12.8 280
12V 380Ah 4.86 380*380*290 44 12.8 380
12V 480Ah 6.14 480*380*290 52 12.8 480
12V 550Ah 7.04 480*380*290 61 12.8 550
12V 650Ah 8.32 580*380*290 69 12.8 650
12V 750Ah 9.6 630*380*290 78 12.8 750
12V 850Ah 10.88 730*380*290 86 12.8 850
12A 950Ah 12.16 730*380*290 94 12.8 950
24V 190Ah 4.86 380*380*290 44 25.6 190
24V 280Ah 7.17 480*380*290 61 25.6 280
24V 380Ah 9.73 630*380*290 78 25.6 380
24V 470Ah 12.03 730*380*290 94 25.6 470
48V 95Ah 4.86 380*380*290 44 51.2 95
48V 185Ah 9.47 630*380*290 78 51.2 185
60V 95Ah 6.08 480*380*290 52 64 95
60V 185Ah 11.84 730*380*290 94 64 185
72V 95Ah 7.3 480*380*290 61 76.8 95
