Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
Specifications
Brand Name :
HKANON
Model Number :
HN-LFP 48V
Certification :
CE, UL, RoHS, MSDS, UN38.3
Place of Origin :
Shenzhen, China
MOQ :
1Pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000Pcs/Month
Delivery Time :
10 Days
Packaging Details :
1PC/1 Wooden Box
Product name :
48V Forklift Traction Battery Replacing for Heli Manitou Hawker Toyota Forklift Battery 48V
Cell inside :
Series and Parallel Connected-16S 3.2V 86Ah
Chemistry :
LiFePO4
Application :
Electric forklift, AGV, UTV, Electric Stacker Cars, Electric Pallet Trucks, Road Vehicles
Ingress protection :
IP65
BMS :
Included
Description

48V Forklift Traction Battery Replacing for Heli Manitou Hawker Toyota Forklift Battery 48V

Connection methods

  • Place a single battery in thebattery box in turn.
  • Follow the sequence of positive and negative pole links shown on the right.
  • Connect part of the line to the equipment line in the same color.

Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery

Safety Precautions

  • In accordance with the principle of upright placement in the upper and lower directions, it is forbidden to use the battery on the upside down.
  • Do not give abnormal vibration and impact on the battery.
  • Pay attention to insulation during installation.
  • Don't install the machine into a closed structure.
  • In the installation, it is necessary to keep a certain distance between the batteries to ensure air circulation.
  • Please do not mix different types of batteries. Don't expose the battery to organic solvents.

SPECIFICATIONS

Material LFP Battery (LiFePO4)
Nominal Voltage 51.2V
Nominal Capacity 344Ah
Cell Assembly Prismatic 3.2V 86Ah
16 series with 4 parallel
Built-in (16S 150A BMS) Over-charging & charging protection.
Temperature control function.
Short circuit protection.
Balances the cells and ensures long cell life.
Charging Charging Model CC / CV
Charging Current 0.5C @344Ah
BMS Charging Cut-off Voltage 58.4V
Cell Overcharge Protection Voltage 3.65V / Cell
Discharge Continuous Discharge Current 1C @ 344Ah
Peak Discharge Current 2C @ 344Ah 10 seconds
BMS Discharge Cut-off Voltage 41.6V +/-1V
Cell Over-discharge Protection Voltage 2.5V / Cell
Working Temperature Charging Temperature Range 0~45°C
Discharge Temperature Range _20~60°C
Cycle Life More than 2500 times (100% DOD)
Our certifications ISO9001, UL 1642, CE, RoHS
Communication CAN/RS485/RS232 (Optional) 　
Dimension 1000*700*460 mm
Additional weight/ Battery Weight 170KG/580 Kg
Application Forklift, Electric Car
Warranty 15 Months
Part Included 1× 51.2V 344Ah Lithium Ion Battery
1× 51.2V 70A Charger

Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery

INTERIOR AND EXTERIOR GALLERY

Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery

Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery

Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery

OTHER RELATED PRODUCT

Battery type Power(kwh) Size(mm) Weight(kg) Voltage Capacity
12V 270Ah 3.46 430*380*200 36 12.8 270
12V 350Ah 4.48 530*380*200 45 12.8 350
12V 450Ah 5.76 630*380*200 52 12.8 450
12V 280Ah 3.58 380*380*290 36 12.8 280
12V 380Ah 4.86 380*380*290 44 12.8 380
12V 480Ah 6.14 480*380*290 52 12.8 480
12V 550Ah 7.04 480*380*290 61 12.8 550
12V 650Ah 8.32 580*380*290 69 12.8 650
12V 750Ah 9.6 630*380*290 78 12.8 750
12V 850Ah 10.88 730*380*290 86 12.8 850
12A 950Ah 12.16 730*380*290 94 12.8 950
24V 190Ah 4.86 380*380*290 44 25.6 190
24V 280Ah 7.17 480*380*290 61 25.6 280
24V 380Ah 9.73 630*380*290 78 25.6 380
24V 470Ah 12.03 730*380*290 94 25.6 470
48V 95Ah 4.86 380*380*290 44 51.2 95
48V 185Ah 9.47 630*380*290 78 51.2 185
60V 95Ah 6.08 480*380*290 52 64 95
60V 185Ah 11.84 730*380*290 94 64 185
72V 95Ah 7.3 480*380*290 61 76.8 95

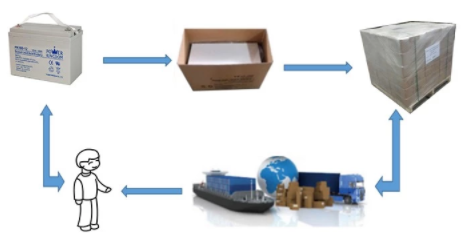

PACKING AND SHIPPING

Safe Electric Forklift Battery Replacing For Heli Manitou Hawker Toyota Forklift Battery
