20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack
Specifications
Brand Name :
HKANON
Model Number :
HK-12V 33AHA
Certification :
CE, UL, MSDS, UN38.3
Place of Origin :
Shenzhen, China
MOQ :
10Pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000Pcs/month
Delivery Time :
7 working days
Packaging Details :
Carton/Wooden box
Type :
LiFePO4
Nominal Voltage :
12.8V
Capacity :
33Ah
Cell Inside :
4S10P
Casing Material :
ABS
Warranty :
12 Months
Description

12V 33Ah 20hr Electric Bike Mobility Scooter Golf Trolley Lithium Battery Pack

LiFePO4 Lithium iron phosphate battery are designed as the drop-in replacement for the similar capacity of lead-acid batteries, it offering twice of the run-time but only half of the weight. Moreover, it with non-toxic and non-polluting, Eco-friendly, good thermal stability, and longer run-time features.

BATTERY SPECIFICATION

Item Specification
Application Area To replace lead-acid battery
Model HK-LFP 12V 33AH
Nominal Voltage 12.8V
Nominal Capacity 33Ah
Cell Combination 4S10P-IFR26650 3.2V 3300mAh
Size 195*130*167mm
Weight 4.9Kg
Charge Voltage 14.6 ± 0.2V
Max. Charge Current 16.5A
Continues Discharge Current 30A
Peak Discharge Current 60A
Charge Cut-off Voltage 10V
Charge Temperature 0 ~ 45℃
Discharge Temperature _20 ~ 60℃
Storage Temperature _20 ~ 45℃
Cycle Life > 2000
Battery Case ABS
Terminal M6

20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack

Applications

1) Energy Storage: UPS, backup, power station.

2) EV : Golf trolleys , Electric scooters .

3) Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.

4) Telecommunications Base Stations.

5) UPS(Uninterrupted Power Supply).

6) General Energy Storage (Such as: Back-up Power, Miner's lamp, portable power supply, digital products etc.)


BATTERY ADVANTAGES AND FEATURES

1. Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/ calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

2. Lighter Weight: About 40% of the weight of a comparable lead acid battery. A' drop in' replacement for lead acid batteries.

3. Higher Power: Delivers twice power of lead acid battery, even high discharge rate while maintaining high energy capacity.

4. Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

5. Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to then batteries in parallel.

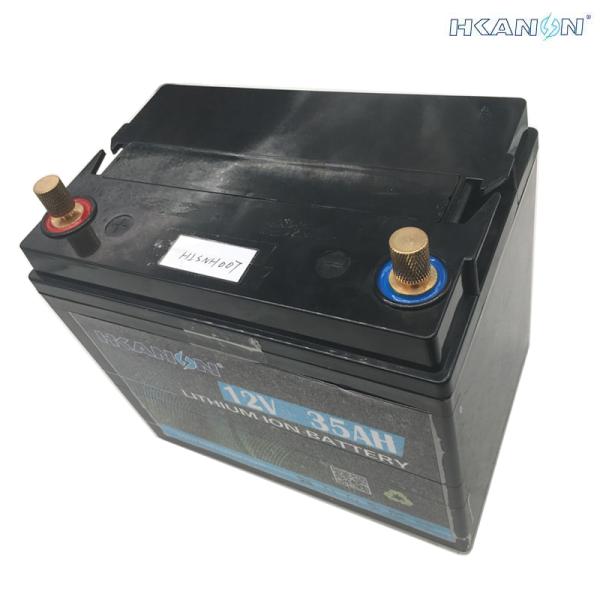

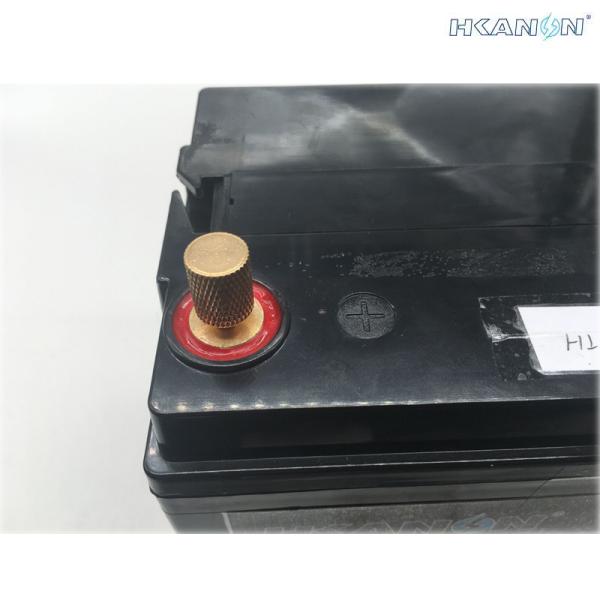

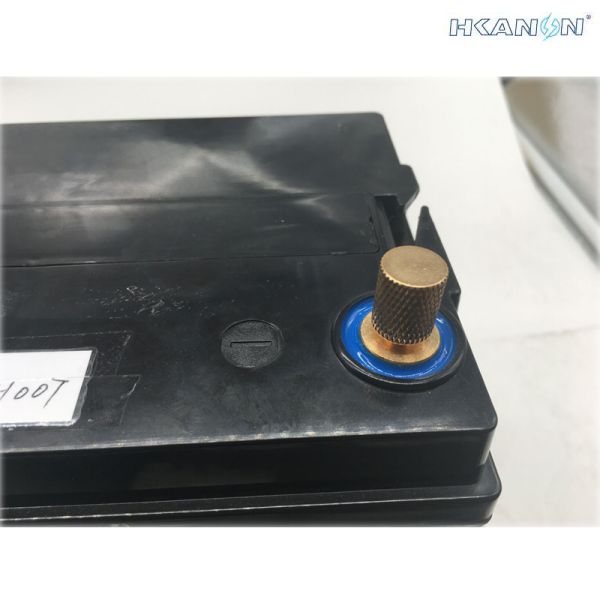

INTERIOR AND EXTERIOR GALLERY

20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack

20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack

20hr Golf Trolley 12V 33Ah 4S10P Cell Lithium Battery Pack

RELATED ITEMS

Capacity Wh size L*W*H*TL(mm) Weigh KG Max.Charge (A) Charge Voltage (V) Max Discharge Current Peak Discharge Current Discharge Cut off Voltage Terminal Housing
6.4V 6Ah 38.4 70*47*102*107 0.4 3 7.3 ± 0.1 6A 20A (<3S) 5V F2 IP65
6.4V 7Ah 44.8 151*35*94*100 0.54 3.5 7.3 ± 0.1 7A 20A (<3S) 5V F2 IP65
12.8V 6Ah 76.8 90*70*101*107 0.75 3 14.6 ± 0.2 6A 20A (<3S) 10V F2 IP65
12.8V 7Ah 89.6 151*65*94*100 1.06 3.5 14.6 ± 0.2 7A 20A (<3S) 10V F2 IP65
12.8V 9Ah 115.2 151*65*94*100 1.34 4.5 14.6 ± 0.2 9A 20A (<3S) 10V F2 IP65
12.8V 12Ah 153.6 151*98*95*101 1.55 6 14.6 ± 0.2 12A 30A (<3S) 10V F2 IP65
12.8V 24Ah 307.2 181*77*167*167 2.9 12 14.6 ± 0.2 24A 60A (<3S) 10V M5 IP65
12.8V 30Ah 384 168*175*125*125 3.9 15 14.6 ± 0.2 30A 60A (<3S) 10V M5 IP65
12.8V 33Ah 422.4 195*130*156*167 4.9 16.5 14.6 ± 0.2 30A 60A (<3S) 10V M6 IP65
12.8V 42Ah 537.6 197*165*170*170 5.7 21 14.6 ± 0.2 42A 60A (<3S) 10V M6 IP65
12.8V 54Ah 691.2 229*138*212*217 6.7 27 14.6 ± 0.2 54A 120A (<3S) 10V M6 IP65
12.8V 84Ah 1075.2 260*169*213*218 10.2 42 14.6 ± 0.2 60A 120A (<3S) 10V M8 IP65
12.8V 100Ah 1280 328*172*215*220 13.1 50 14.6 ± 0.2 100A 200A (<3S) 10V M8 IP65
12.8V 150Ah 1920 483*170*240*240 19.2 75 14.6 ± 0.2 100A 200A (<3S) 10V M8 IP65
12.8V 200Ah 2560 522*238*218*220 27 100 14.6 ± 0.2 100A 200A (<3S) 10V M8 IP65
