Specifications
Brand Name :
Ganfeng
Model Number :
100Ah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
negotiable
Payment Terms :
D/A, D/P, T/T,paypal
Supply Ability :
1000pcs/day
Delivery Time :
15 days
Packaging Details :
carton box
Nominal voltage :
3.2V
Nominal capacity :
100AH
cycle life :
4000 times
Internal impedence :
≤0.40mΩ
MCC :
100A
MCDC :
100A
Net Weight :
2.28±0.2 Kg
size :
72*174*204mm
Description

New Deep Cycle 4000 times 3.2V 100ah Cell 24V 48V Lithium Ion Pack Lifepo4 Battery with screw For Electric Car

Product Name
3.2v 100AH
Battery type
Lifepo4 battery
Nominal Voltage(V)
3.2v
Nominal Capacity(mAh)
100AH
Charge Voltage
3.65 V
Discharge cut-off voltage
3.65 V
Internal Resistance
≤0.40mΩ
Max charge current
100A
Max discharge current
100A
Charge Temperature(℃)
0~45Centigrade
Discharge Temperature(℃)
-20~60Centigrade
Storage Temperature(℃)
-20~45Centigrade
Cycle life
4000 times, DOD at 80%
Weight(g)
About 2.28±0.2 Kg
Size(mm)
174x48x132.2(mm)

3.2V lifepo4 100AH large capacity,aluminum housing.

Large capacity 310AH lithium ion battery parameter

4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw

Other discharge current

4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw

Connetion

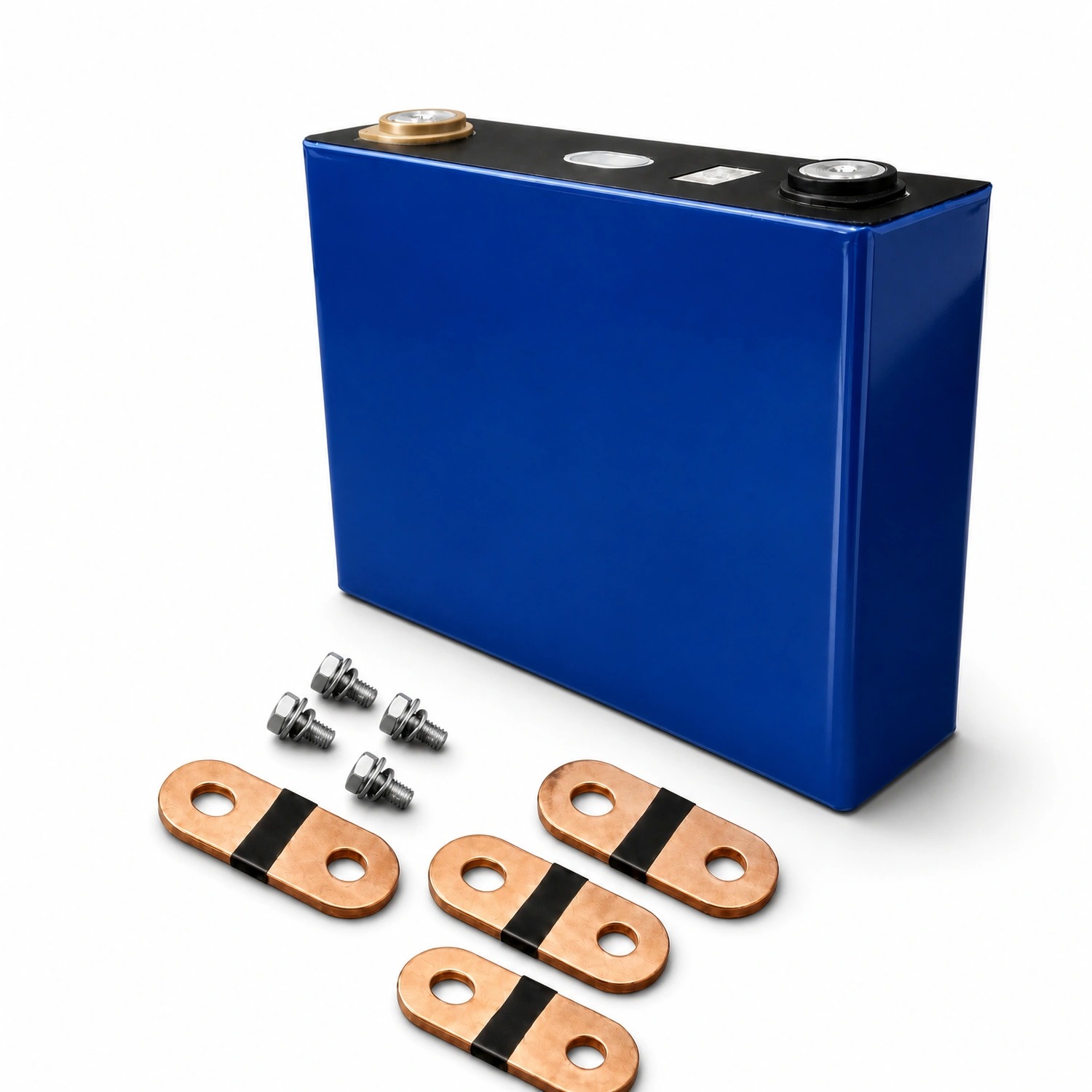

Screw connected,the prismatic battery cell can be easily mounted/connected with barbus/screws.You can handle it DIY.

4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw

When DIY,what should we do?

Exercise caution when working with all electrical equipment, wear safety glasses,gloves etc when appropriate. Sparks & Flashes can damage your eyes.

Ensure cells are within operating temperature range prior to use.

Do Not Use if cells are punctured, damaged or leaking.

Provide adequate protection to cells during assembly & use thereafter.

Dispose of properly to recycling or similar facility.

Do Not submerge in water.

Do Not allow to come in contact with direct heat, extreme temperatures or fire.

Prevent harsh impacts or extreme vibrations which can cause immediate or cumulative damage.

Deep cycle,more than 2000 times life span.Longer life than lead acid battery.

4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw

This lithium battery is available for many applications,golf cart,RV,solar storage system,E-motorcycle,Home energy storage system,powerwall etc.

4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw

4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw

About the Transportation&Delivery

1. Shippment to USA:By sea+Express(DDP,Tax free)
ETD:5-8 days
ETA:25-35 days after sailing(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 15-25 days after sailing.

2. Shipment to EU:By railway+Express(DDP,Tax free).Except Switzerland,Romania
ETD:5-8 days
ETA:30-45 working days after shipping(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 25-40 working days after shipping.

3. We can't deliver the following address directly:
USA: Military address and PO box address are not acceptable;

Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.
Portugal: Azores and Madeira
Spain:Canary Islands, hueda and melilia
Russia: Kamchatka Peninsula
Other:Some remote areas not listed,Please provide shipping address and zip code to to us to check.

About US

Changsha Deligreen Power Co.LTD,founded in 2010,is a "Green Energy Solution Service Provider".

Newest technology,new idea,heard-working and honest people.

Focus on lithium rechargeable battery,BMS,Balancer,charger and relative products.

Main application:electric bicycle,scooter,motorhome,AGV,solar/wind system,Energy storage system,truck and so on.s:

We promise"real"lithium capacity

We promise“100%“ refund for any quality problem

We promise”100%“ replacement for any shipping damage

We promise lifetime fast technical supportCustomers‘ satisfaction is our endless pursuing.

4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw

FAQ

Q: What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.

Q: 1. Where can I get the price?
A: Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get

the product specifications such as voltage capacity application etc.

Q:How can you guarantee your quality?
A: Normally we will send you a sample to confirm everything first. We will make the big order exactly

the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery


Q: What is your term for payment?
A: We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.

Q: What kind of certificates do you have?
A:We can provided CE,ROHS,MSD,SHIPPING CERTIFICATIONS.
