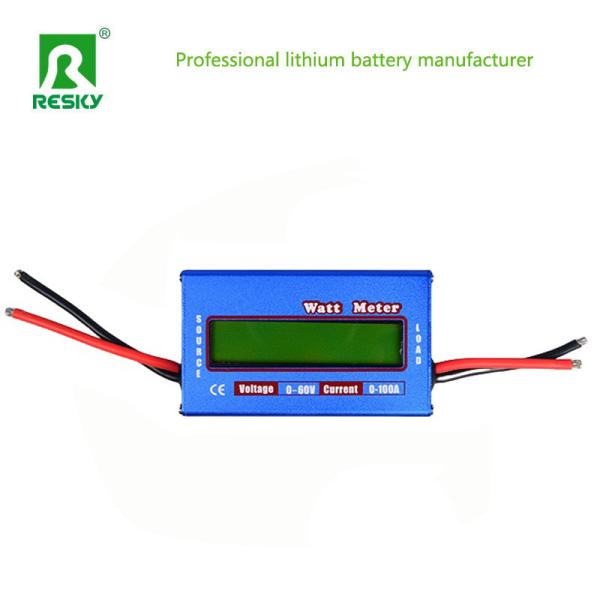

RC Accessories Power Meter DC 60V 100A Digital Wattmeter For RC Lithium Battery

Features:

Wide Measurement Range

Voltage: It can measure voltages from 0 to 60V, which is suitable for various low-voltage and medium-voltage DC power systems, such as 12V, 24V, 36V, and 48V battery bank systems.

Current: The meter can handle up to 100A peak current and 50A continuous current, meeting the measurement needs of high-current equipment.

Power, Charge and Energy: It is capable of measuring power up to 6554W, charge up to 65Ah and energy up to 6554Wh.

High Measurement Accuracy

High Resolution: It has a voltage resolution of 0.01V and a current resolution of 0.01A, which can accurately measure small changes in voltage and current.

Low Error: With high-precision components and advanced measurement technology, the measurement error is small, which can provide accurate measurement data for power consumption analysis and energy management.

Multifunctional Measurement

Basic Electrical Parameters: It can measure multiple electrical parameters such as voltage (V), current (A), power (W), energy (Wh) and charge (Ah), providing comprehensive electrical information.

Peak Value and Minimum Value Measurement: It is able to measure peak amps, peak watts and voltage minimum, helping users understand the extreme conditions of the circuit.

Fast Response and Update

Fast Sampling: With a certain signal sampling rate, it can quickly capture changes in electrical parameters and achieve real-time monitoring of the circuit.

Short Update Period: The measurement update period is 400ms, which can quickly update the measurement results and reflect the changes of electrical parameters in time.

Good Stability and Reliability

Low Power Consumption: It has extremely low power consumption, such as 36mA or 7mA, which reduces the impact on the measured circuit and improves the stability of the measurement.

Rugged Design: It can work stably under the condition of 100A peak current at 60V, and has good anti-interference ability.

User-friendly Design

Digital LCD Screen: The digital LCD screen displays clear and easy-to-read numbers, presenting measurement data intuitively.

Small Size and Light Weight: With dimensions of 82x46x17mm and weighing 2.3oz (including case), it is small and light, easy to install and carry.
