Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack
Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack
Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack
Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack
Specifications
Certification :
CE,RoHS,MSDS,Un38.3
Brand Name :
RESKY
Model Number :
HL-4810
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
500pcs/day
Delivery Time :
10-15workdays
Packaging Details :
Paper box
Electrolyte :
Li-ion
Cell Type :
18650 2600mAh Battery Cells
Motor :
Below 500W
Charging Cut-off Voltage :
54.6V
Dishcarging Cut-off Voltage :
39V
Cycle Life :
500cycles
Wh :
480wh
Warranty :
12months
HS Code :
8507600090
Structure :
13S4P
Description
Product Description

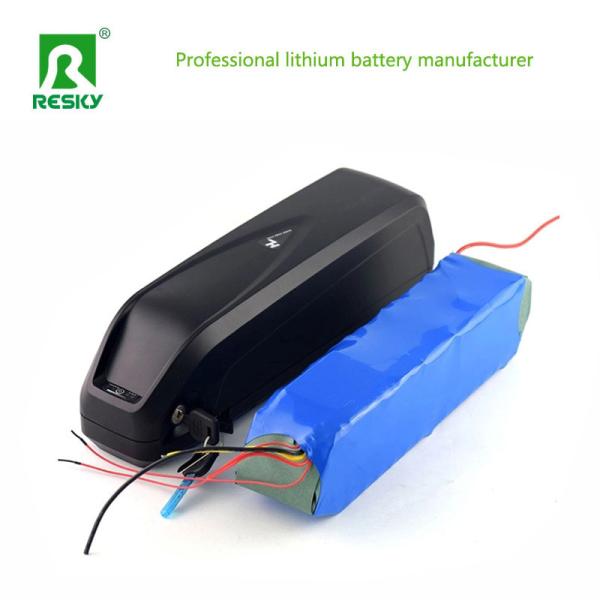

Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Lithium Li-ion Battery Pack

Specification:

Product name 48V10Ah
Model RSK-4810
Rated Capacity 10Ah
Nominal Voltage 48V
Over discharge protection voltage 39V±0.05V
Over charge protection voltage 54.6V±0.05V
AC Impedance New Cell Max.(mΩ) ≤100 mΩ
Maximum Continuous Charge Current ≤5A adjustment
Maximum Continuous Discharge Current ≤10A adjustment
Maximum Pulse discharge current ≤20A adjustment
Operation Temperature Range Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range Less than 1 year: -20~25°C
Less than 3 months: -20~40°C
Storage Temperature Range Less than 30 Days: -25°C~45°C
Less than 90 Days: -25°C~30°C
Weight Approx 3.5kg
Cycle Characteristic 500 times

Features:

High Energy Density

Large Energy Storage: It can store a large amount of energy in a relatively small and lightweight package, enabling e - bikes to travel longer distances on a single charge.

Space - Saving: It has a relatively small volume, which is conducive to the rational design of e - bike structures and offers more space for other components.

Long Service Life

Many Charge and Discharge Cycles: It can generally endure 1,000 - 3,000 charge and discharge cycles. Calculated with 70% capacity retention, the 100% charge and discharge cycle times can exceed 200 times, and the service life can reach 5 - 8 years.

Low Self - Discharge Rate: The self - discharge rate is less than 5% per month, which means it can maintain a relatively high power level even after long - term storage.

High Charging Efficiency

Fast Charging: It supports high - current charging and can be fully charged in a short time, which is very convenient for users.

No Memory Effect: It has no memory effect, so it can be charged at any state of charge without affecting the battery life and capacity.

Pictures:

Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack

Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack

Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack

Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack

Lithium Electric Bike Battery 48V 10ah 13s4p 18650 2600mAh Li-ion Battery Pack
