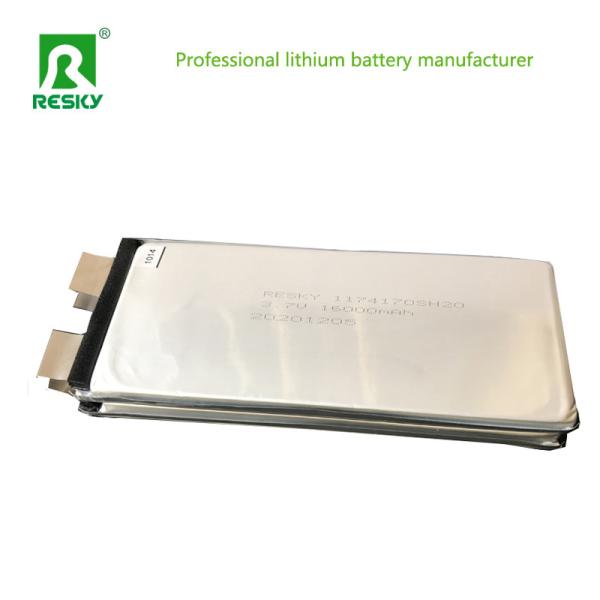

Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery
Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery
Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery
Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery
Specifications
Certification :
CE, RoHS, MSDS, Un38.3
Brand Name :
RESKY
Model Number :
LP1174170
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
10000PCS/Day
Delivery Time :
3-7days
Packaging Details :
Paper box
Rated Capacity :
16000mAh
Standard Voltage :
3.7V
Usage :
Remote Control Boat, Remote Control Plane, Remote Control Car, RC Uav, RC Drone
Weight :
342g
Connector :
Xt60, Xt90, T-Type, Anderson, Bullet
Color :
Blue, Black, Red, or Other Customized
OEM Service :
Yes
Specification :
11*74*170mm
HS Code :
8507600090
Description
Product Description

RC Lipo Battery Cell 1174170 3.7v 16000mAh Rechargeable Lithium Drone Batteries

NO. Items Specifications
1 batteries 3.7V 16000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 2.75V
4 Nominal capacity 16000mAh 20C Discharge
5 Charge current
 Standard Charging:0.2C
Rapid charge: 0.5C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
 Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 0.5C
9 Max.discharge current 40.0C
10 Discharge cut-off voltage 2.75V(0.2C)
11 Operating temperature Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length:170±2mm (not including tabs)
Width:74±0.5mm
Thickness:11±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times

Features:

Safety and Maintenance:

LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.

It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Design and Construction:

Batteries come in various shapes and sizes to fit different RC vehicles. Some models have hard cases for protection, while others are soft-packed for flexibility.

The internal structure of the battery, including the arrangement of cells (series or parallel), affects its voltage, capacity, and discharge rate.

Performance Over Time:

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.

Pictures:

Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery

Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery

Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery

Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery

Rechargeable RC Li Ion Battery Pack 1174170 3.7v 16000mAh Drone Lithium Battery
