9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane
9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane
9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane
9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane
Specifications
Certification :
CE, RoHS, MSDS, Un38.3
Brand Name :
RESKY
Model Number :
LP9059156SH35
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
10000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Nominal Capacity :
8000mAh
Charging Current :
0.2c
Continuous Discharging Current :
35c
Cycle Life :
500cycles
Warranty :
12months
Weight :
185g
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea
Connector :
Xt60, Xt90, T-Type, Anderson, Bullet
OEM Service :
Yes
Specification :
9*59*156mm
Description
Product Description

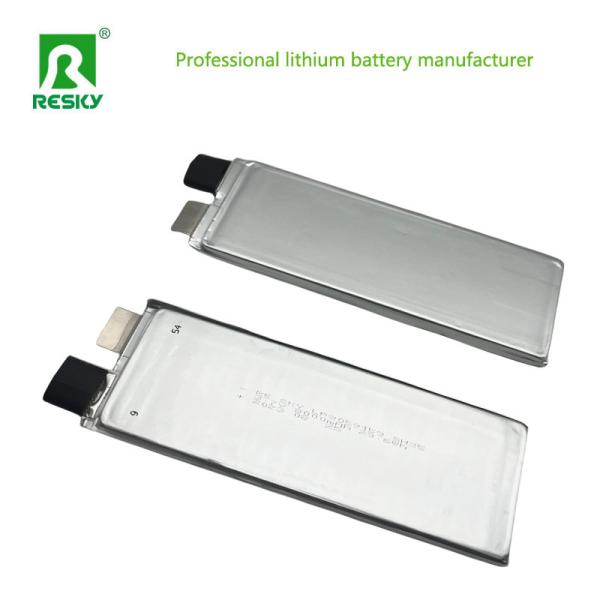

Pouch RC Lipo Battery Cell Power 8000mAh 9059156 35c For RC Car Uav Airplane

NO. Items Specifications
1 batteries 3.7V 8000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 2.75V
4 Nominal capacity 8000mAh 35C Discharge
5 Charge current
 Standard Charging:0.2C
Rapid charge: 0.5C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
 Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 0.5C
9 Max.discharge current 70.0C
10 Discharge cut-off voltage 2.75V(0.2C)
11 Operating temperature Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length:156±2mm (not including tabs)
Width:59±0.5mm
Thickness:9±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times
Features:

Lithium-Polymer (LiPo): LiPo batteries are lighter than NiMH batteries with similar capacity and voltage, contributing to a more powerful feel in RC models. They also maintain their voltage better as they discharge. LiPo batteries require specific care procedures for maximum lifespan and safe use.

Discharge Rate:

Represented by a 'C' rating, this indicates how quickly the battery can discharge its energy. A higher C rating means the battery can deliver more current, which is useful for high-performance RC models that require bursts of power.

Design and Construction:

Batteries come in various shapes and sizes to fit different RC vehicles. Some models have hard cases for protection, while others are soft-packed for flexibility.

The internal structure of the battery, including the arrangement of cells (series or parallel), affects its voltage, capacity, and discharge rate.

Pictures:

9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane

9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane

9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane

9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane

9059156 RC Lithium Battery 8000mAh 35c For RC Car Uav Airplane
