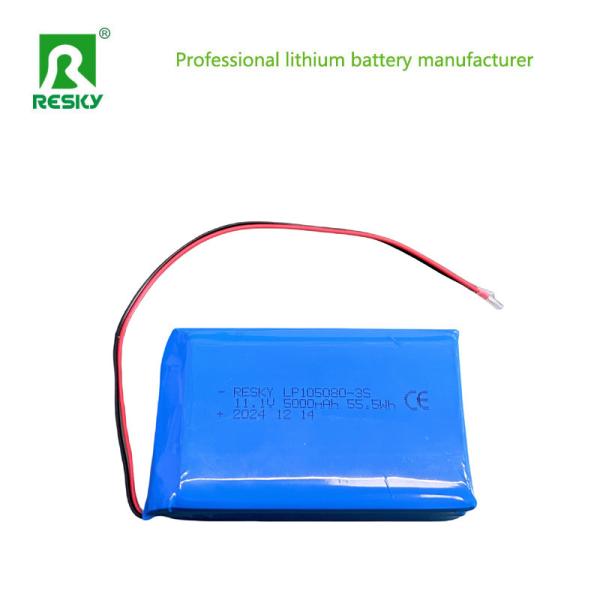

Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat
Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat
Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat
Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat
Specifications
Certification :
CE, RoHS, MSDS, Un38.3
Brand Name :
RESKY
Model Number :
LP105080-3S
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
7-10days
Packaging Details :
Paper box
Discharge Rate :
Low Discharge Rate
Standard Voltage :
11.1V
Usage :
Remote Control Boat, Remote Control Plane, Remote Control Car, Audio, Digital Camera, Vidican
Nominal Capacity :
5000mAh
Weight :
48g
Warranty :
12months
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Specification :
10*50*80mm
HS Code :
8507600090
Description
Product Description

Power Solar Lithium Polymer Battery Pack 105080 3S 11.1V 5000mAh Batteries

NO. Items Specifications
1 batteries 11.1v 5000mah lipo battery
2 Charge voltage 12.6V
3 Nominal voltage 11.1V
4 Nominal capacity 5000mAh 0.2C Discharge
5 Charge current
 Standard Charging:0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
 Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 0.5C
9 Max.discharge current 4000mA
10 Discharge cut-off voltage 2.5V 0.25V(0.2C)
11 Operating temperature Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length:85±2mm (not including tabs)
Width:51±0.5mm
Thickness:33±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times

How to Ensure the Safety of Lipo Batteries:

Battery Design and Manufacturing

Electrolyte Improvement:

  • The main heat release during lithium-ion battery fires comes from the combustion of flammable organic electrolytes. Research is ongoing to develop electrolytes with better thermal stability and lower flammability.

  • Soft solvent lithium-ion batteries, for instance, have been designed to enhance safety and performance under extreme conditions.

Cell Structure:

  • Ensure robust cell structure to prevent internal shorts and leaks.

  • Use high-quality materials for cell casing and separators.

Proper Usage

Voltage and Current Matching:

  • Ensure that the battery's voltage and current capacity match the requirements of the device it powers.

  • Over-voltage or over-current can lead to battery damage or safety hazards.

Charging and Discharging Practices:

  • Use dedicated LiPo battery chargers that provide the correct voltage and current.

  • Avoid overcharging or deep discharging, as both can shorten battery life and increase safety risks.

  • Monitor battery temperature during charging and discharging to prevent overheating.

Picures:

Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat

Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat

Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat

Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat

Solar Li Polymer Battery Cell 105080 3S 11.1V 5000mAh For Remote Control Boat
