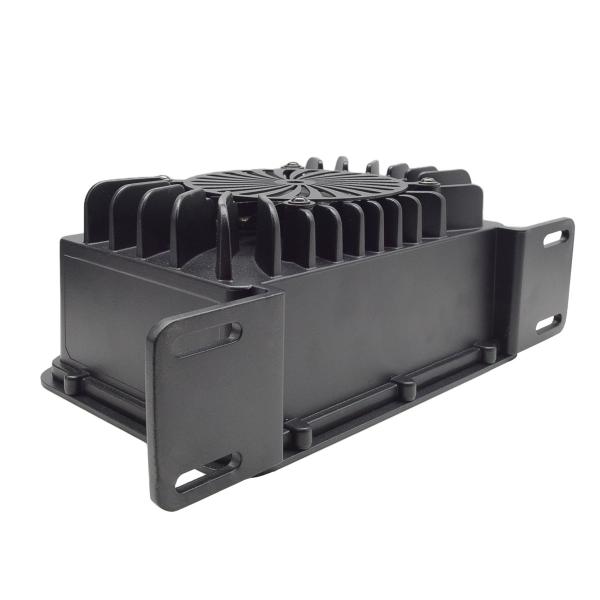

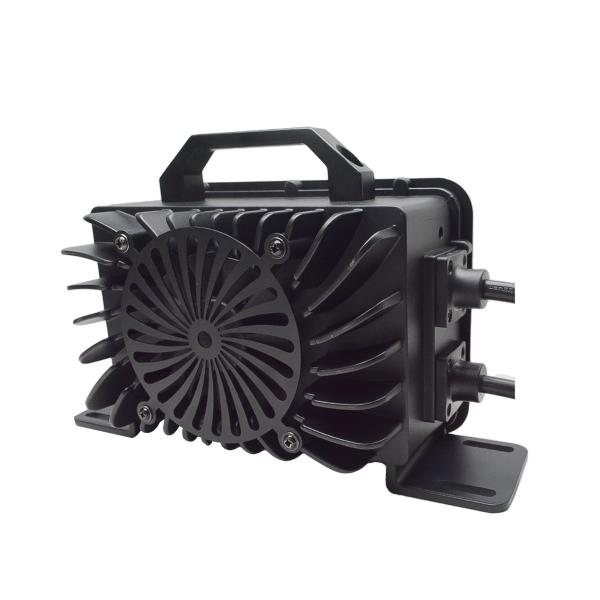

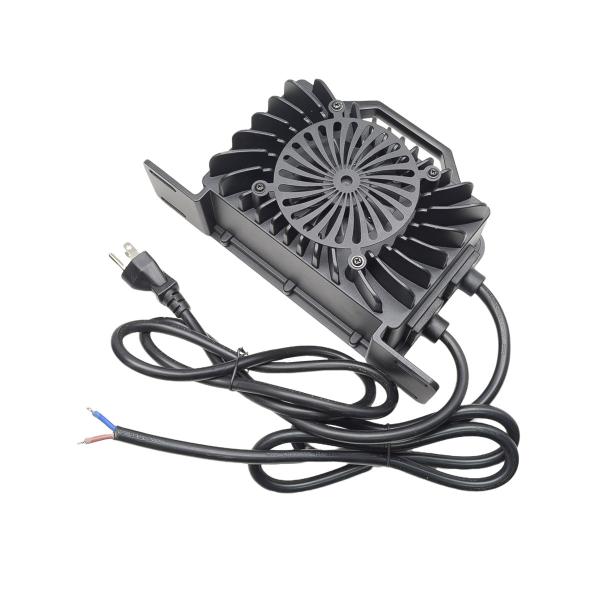

Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Specifications
Brand Name :
YEWY
Model Number :
UY900S
Certification :
CE/ROHS/LVD
Place of Origin :
GUD, China
Material & color :
Aluminum Alloy & Black/Sliver
Dimension :
262X136X89 mm
Input :
100-240VAC
Frequen :
47-63Hz
Charger type :
Lead acid/Lithium/Li-ion Battery
Fan :
Temperature + load current double control fan speed
Protection :
Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charger.
Output Voltage :
48 Volt
Adjustable voltage :
58.4V/54.6V/58.8V
Output Current :
15 Amp
DC/AC connector :
Optional connector
Efficiency :
>=92%(full load)
Warranty :
18 Months
Operating Temperature :
-4 to 104℉（-20 to +40 ℃）
Storage Temperature :
-40 to 104℉（-40 to +70 ℃）
MOQ :
Contact me
Price :
Contact me
Delivery Time :
Contact me
Payment Terms :
Contact me
Description

48V 15A Adjustable Voltage 58.4V/54.6V/58.8V Marine Waterproof Battery Charger

Product Description:

Introducing the 48V 15A Adjustable Voltage Waterproof Battery Charger, a versatile and reliable charging solution designed to meet the diverse needs of both lead-acid and lithium batteries. With its advanced features and robust design, this charger offers the ultimate convenience and protection for your batteries.

The charger's intelligent fully automatic charging system takes the guesswork out of charging. It utilizes a multi-stage charging curve that dynamically adjusts based on the battery's condition. From pre-charge and constant current to constant voltage, float charge, and more, this charger optimizes the charging process to extend battery life and ensure efficient and safe charging.

Customizability is a key feature of this charger. With three selectable charging curves (LFP/NCM/L-A), you have the flexibility to choose the most suitable charging mode for your specific battery type. Whether you're using lithium iron phosphate (LFP), lithium nickel cobalt manganese oxide (NCM), or lead-acid batteries (L-A), this charger has you covered.

Safety is a top priority. This charger incorporates multiple protection functions, including over-temperature, over-voltage, over-current, short circuit, and reverse polarity protection. These safety measures provide peace of mind, protecting both the charger and your batteries from potential risks or damage.

For added convenience and versatility, this charger offers optional communication capabilities. With CAN and RS485 interfaces, you can connect the charger to compatible devices for advanced monitoring and control. Stay connected and have full control over your charging process.

ITEM vb2430 vb3620 vb4815 vb6012 vb7210
Output Output voltage (V) LFP 29.2 43.8 58.4 73 87.6
NCM 29.4 42 54.6 67.2 84
L-A 29.4 44.1 58.8 73.5 88.2
Float voltage(V) (only L-A) 27.6 41.4 55.2 69 82.8
Max charging current (A) 30 20 15 12 10
Customizable current (A) ≤30 ≤20 ≤15 ≤12 ≤10
Max power (W) 882 882 882 882 882
Rotating lamp current(A) LFP 2.4 1.6 1.2 0.96 0.8
NCM 2.4 1.6 1.2 0.96 0.8
L-A 7.5 5 3.75 3 2.5
Ripple voltage ≤2%VOUTMAX
Input Voltage range v=W,100V~240VAC；v=H,200~240Vac；v=L,100~120Vac
Frequency range 47~63Hz
Power factor PF>0.98/115VAC, PF>0.95/230VAC at full load
efficiency ≥92%
Input current(type) v=W,12A/115VAC,5A/230VAC；v=H,5A/230VAC；v=L,12A/115VAC
Vomit (type) COLD START≤50A at 230VAC
Leakage current ＜0.75m A

Product Features:

Charger Model:
UY900S
Power:
900W
Housing:
Aluminium Alloy
Dimension:
262*88.5*161.8mm
Communication:
CAN, RS485
Waterproof:
IP65
Efficiency:
>=92%
Operating Temperature:
-20 to 40℃
Noise:

<=40dB
Storage Temperature:
-40 to 70℃
Cooling:
Temperature and load current-controlled fan
Protection:
 Over-temperature, over-voltage, over-current, short-circuit,and reverse connection protection.

Charger type:
Suitable for lead-acid batteries or lithium batteries charging.
Features:
1.Automatic multi-stage charging curve for long battery life
2.Intelligent fully automatic charging: obtains the battery status
and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge)




Charging Curve:
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8VMarine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8VMarine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8VMarine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8VMarine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
Marine 48V 15A Waterproof Battery Charger 58.4V / 54.6V / 58.8V
