Specifications
Brand Name :
YEWY
Model Number :
UYMC-3P-W1210
Place of Origin :
GUANG ZHOU,CHINA
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
5000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
593*336*325
Model :
UYMCC-3P- W1210
Material :
Aluminum Shell
Input Voltage :
100-240V
Leakage Current :
<=0.75mA
Waterproof Range :
IP65
DC/AC Connector :
Optional
Battery Types :
LiFePO4, Lithium Ion, Lead-Acid
Charging Method :

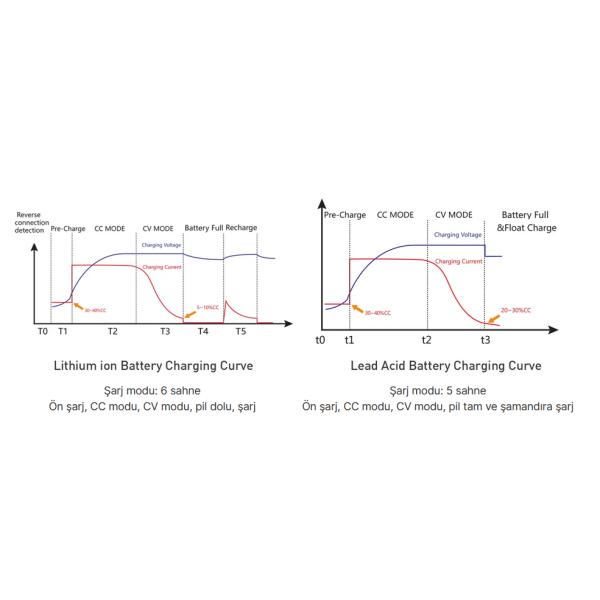

Pre-charge, CC, CV, Floating / Trickle, Shut Off
Description

Feature

3-channel multifunctional battery charger
1. LLC + active PFC.
2.Support 3 groups of batteries at the same time.
4.Charger with button function according to the button switch to adapt to different types of batteries.(LFP/NCM/L-A)
Better fit than conventional chargers.

Model: UYMC-3P-W1210 Battery Charger
Output LFP charge voltage 14.6V * 3
NCM charge voltage 12.6V * 3
L-A charge voltage 14.7V * 3
Maximum power 441W
Power 441W
Float voltage 13.8V (lead acid only)
Voltage fluctuation ± 0.3V
Constant charge current 10A ± 5%
Return lamp current Lead 2.5A/lithium 0.8A
Input Voltage range 90V ~ 260VAC
Frequency range 47 ~ 63Hz
Power factor PF>0.98/115VAC, PF>0.95/230VAC at am load
Efficiency ≥ 87%
Input current (type) 4A/115VAC 2A/230VAC
Leakage current <0.75m A

Waterproof Multi Channel Automatic 12V 10A 3 Bank Lithium Battery Charger For Boat Harbour Freight

Waterproof Multi Channel Automatic 12V 10A 3 Bank Lithium Battery Charger For Boat Harbour Freight

Waterproof Multi Channel Automatic 12V 10A 3 Bank Lithium Battery Charger For Boat Harbour Freight

Production Steps

All of our chargers are tested at least 4 times before leaving the factory and undergo 100% full power aging and baking tests. In order to reach the final result and give our customers the best quality products and services.

Waterproof Multi Channel Automatic 12V 10A 3 Bank Lithium Battery Charger For Boat Harbour Freight

About us

  • 2014 Guangzhou Yunyang Electronic Technology Co., Ltd. was established in Guangzhou, Guangdong.
  • 2016 Prepare to build a new factory (with an expanded area of 1500m ²) It passed the lSO9001lSO4001 system certification, and the product passed the TUV Rheinland CB certification for the first time.
  • 2018 Expanded the production scale again and moved to a new location. The area is expanded to 3000 m ².
  • 2019 Become a high-tech enterprise, with 12 authorized patents; In the same year, Wuxi Yunyang Electronic Technology Co., Ltd. was established.
  • 2020 Realize fine management, equipped with two fully automatic SMT production lines.
  • 2022 The UL CB CE GS KC FCC RCM DOE CQC certificates have be obtained by many products.

Waterproof Multi Channel Automatic 12V 10A 3 Bank Lithium Battery Charger For Boat Harbour Freight

Waterproof Multi Channel Automatic 12V 10A 3 Bank Lithium Battery Charger For Boat Harbour Freight

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of battery chargers with more than 15 years experience and "hi-tech Enterprise" in China.


We hold certificates in accordance with ISO 9001:2015 and ISO 14001:2015. To maintain these standards, we have implemented a robust management system that not only supports our certification, but also ensures that we adhere to the strict requirements set by these standards.

Q: What special services can you provide?

A: Product customisation (current/voltage, electrical circuit and function), appearance, label, package box and other packaging design and shipping agency.

Q: Can I request a sample order?

A: Absolutely! We welcome sample orders to cater to your specific requirements.

Our warranty time is 18 months, to regular customers we can extand the worranty time to 24 months. If product is broken in warranty, we will provide free replacment.
