Specifications
Brand Name :
Handpack
Model Number :
HPK-12-200
Certification :
CE/RoHS/MSDS/
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
15,000pcs per week
Delivery Time :
5-7 working days for sample order,7-25 working days for bulk order
Packaging Details :
Box/carton(standard package)
Model number :
HPK-12-200
Nominal Voltage :
12v
Nominal Capacity :
200AH
Application :
Medical Instrument, Rehabilitation Equipment,
Type :
LiFePO4
Cycly Life :
>2000 Times at 100% DOD
Warranty :
2 year
Certificate :
CE/UL/MSDS/ROHS/ISO9001/UN38.3
Brand :
Handack
Shipment :
By air/ by sea
Payment :
T/T
Description

12V Battery Pack 200Ah Lead Acid Battery Replacement With Built - in BMS


Quickly Details

  • Long life cycle, >2000 times at 80% DOD
  • It without heavy metals and environment friendly
  • Maintenance free,there is no memory effect
  • Internal BMS with full protection,battery has high voltage protection with higher reliability
  • super quick charge/discharge performance
  • safe pressure valve design ( no explosion, no fire)
  • low self-discharge( <3% per month,<15% per year)
  • High density: 1/3 weight & 1/2 volume of lead acid battery
  • Wider temperature range, _20~60℃.
  • Higher power, delivers twice of lead acid battery, even high discharge rate, while maintaining high energy capacity.
  • Lighter weight, about 40% of the weight of a comparable lead acid battery. A "drop in" replacement for lead acid batteries.


Battery Description

Product Name :
LiFePO4 Battery (12V 200AH)
Certification:
CE/UL/MSDS/ROHS/ISO9001/UN38.3
Nominal Voltage
12.8V
Nominal Capacity
200AH
Charge Voltage
14.6±0.2V
Max Charger Current
150A
Max. Charge Current
40A
Charge Cut-off Voltage
15.6±0.2V
Inner Resistance ≤30mΩ @1kHz AC
Recommended charge current ≤150A
Operating Temperature
Charging:0~45℃ Discharging:-20~60℃
Cycle life
2000 Cycles(100%DOD)
5000 Cycles(80%DOD)
Environmental
Charge Temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Water Dust Resistance
IP56
Mechanical
Cell & Method
3.2V25Ah 4S4P
Plastic Case
ABS
Dimensions (in./mm.)
197*165*170mm / Customized
Weight (lbs./kg.)
5.9KG

.

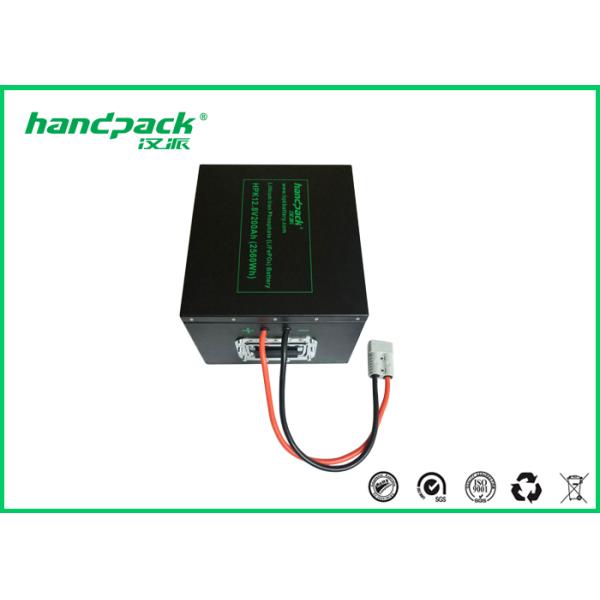

Battery Pictures

12V 200Ah Lead Acid replacement  LiFePO4  Battery for solar energy storage

Applications

♦ Electric tools, toys, robot etc
♦ Emergency light,dive flashlight,Solar lawn lamp,LED light, lawn mower.
flashlight,outdoor light,Searchlight,tactical light, solar street light
♦ Medical Instrument, Rehabilitation Equipment, Diagnosis Equipment,Medical Testing Device, Medical Monitor
♦ Detecting instrument, Prospecting instrument, Testing instrument., Air/ water testing meter,
♦ Mobile communication equipment , Scanner, Mapper
♦ Power Tool, Wireless Machine, Portable Instrument, POS Machine, Alarm Monitor etc


Warranty

  • The products will be checked everything is fine before ship out;
  • 2 year warranty. (The products could be Exchanged or Refunded if it defected in 2 year, in the case of correct operation according to the technical specification.)
  • Our products have received high reputation. and we own the best after-sale service. If any problems happen, our team will do our best to solve for customers.


Product Liability

HANDPACK is not responsible for the incident caused by not obeying the specifications. Before using the battery, you should read the specifications, usage instruction and some attentions carefully to learn its application method and areas. If the phenomenon such as error using method or wrong circuit connection, or input power data, working index are inconsistent with the specifications , cause damage to product, load and its accessories, we are not responsible for it



Packing&Shipping
12V 200Ah Lead Acid replacement  LiFePO4  Battery for solar energy storage

  • Battery will packed with small box then put into cartons.
  • We will ship the battery by express such as DHL, TNT, UPS, FEDEX etc. We can also ship by sea or air transportation for bulk large order.
  • Delivery time for production will depend on the quantity. Usually it will take 15-20 working days, the sample will be shipped out within 7-10 working days



FAQ

Q1: Are you trading company or manufacturer ?

A1: We are factory. Welcome to visit us.

Q2: How long is your delivery time?

A2: Generally it is 15-20 days, it is according to quantity.

Q3: Do you provide samples ?

A3: Yes, we could offer the sample.

Q4: What is your terms of payment ?

A4: For bulk order,30% T/T in advance ,balance 70% before shippment. For sample order,100% payment before production.

Q5: What kind of after sales service would you provide ?

A5: If you have any questions when using,just feel free to contact us,we have 24 hours service.
