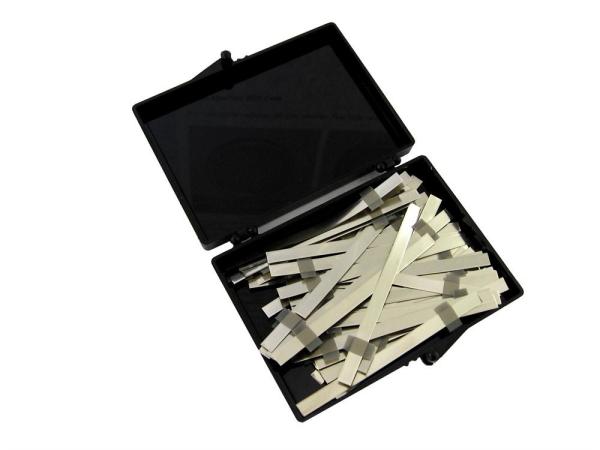

61mm Length 4mm Width Nickel Battery Tab With Adhesive Polymer Tape
61mm Length 4mm Width Nickel Battery Tab With Adhesive Polymer Tape
Specifications
Brand Name :
MRBEST
Model Number :
PLIB-NTA4
Place of Origin :
China
MOQ :
100 Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000000 sets per month
Delivery Time :
3-15 working days
Packaging Details :
Standard Export Carton Packing
Name :
4mm Width Nickel Tab with Adhesive Polymer Tape
Material :
Nickel 99.99%
Width :
4mm
Length :
61mm
Thickness :
0.09mm in Aluminum Tab/ 0.28mm in Aluminum Tab with Adhesive Polymer Tape
Max. Loading Current :
3A
Description

4mm Width Nickel Tab with Adhesive Polymer Tape as Negative Terminal for Pouch Cell, 50pcs/Box

61mm Length 4mm Width Nickel Battery Tab With Adhesive Polymer Tape

4mm Wide Nickel Tabs for use as the Negative Terminal of Polymer Li-ion Batteries 50pcs/Box

Specification

Material Nickel 99.99%
Adhesive Polymer Tape on the tab allows for immediate hot sealing
(horizontal polymer strip is made of modified polypropylene (PP) and polyethylene naphthalate (PEN))
Length 61mm
Width 4mm
Thickness 0.09mm in Aluminum Tab
0.28mm in Nickel Tab with Adhesive Polymer Tape (9.0 mm L * 5.2 mm W)
Max. Loading Current 3A
Net Weight 160mg/pcs
Gross Wight 18g (Tabs with Box)
Application 1. Connect to cathode current collector as polymer battery positive terminal
2. Suggested Sealing Method: (parameter below may vary from case to case)
- Soft type heat-sealing blade (Blade with rubber, see MR-SFZ200)
- 180-200C for upper blade
- 160-180C for lower blade
- 40PSI (0.3Mpa)
- 3 seconds heating time
Adhesive Polymer Tape on the tab allows for immediate hot sealing
