Specifications
Brand Name :
MRBEST
Model Number :
MR-BDP200-B
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Wooden Packing
Product Name :
Pouch Cell Stacking Machine
Stacking Methode :
Z fashion
Stacking Electrode Size :
200mm x 150mm Max. 44mm x 44mm Min.
Acceptable Separator Roll Size :
220mm O.D Max.
Max. Electrode Thickness :
Piled up thickness < 12mm
Aligning Accuracy :
±0.3mm for stacked electrodes
Power :
200W
 Working Voltage :
AC110V-220V 50/60Hz
Description

Semi Auto 200W Pouch Cell Assembly Battery Electrode Stacking Machine

Semi Auto 200W Pouch Cell Assembly Battery Electrode Stacking Machine

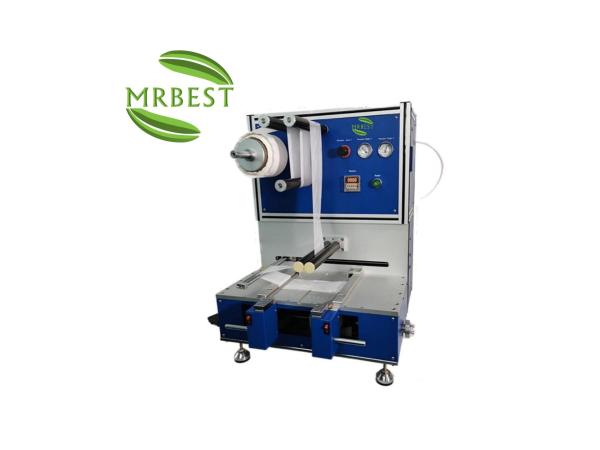

Semi-Auto Pouch Cell Stacking Machine for Battery Electrode Stacking


Model: MR-BDP200-B

It is suitable for the stacking process of battery cells. The positive and negative electrodes and the separator are Z-shaped stacked. It is a device that can be used in the process of lithium-ion battery stacking. The Pouch Cell Equipment adopts automatic tension control system of separator. The air cylinder drives the separator to move left and right to realize Z-fashion stacking. The cantilever design is easy to operate. Compared with the manual stacking machine, the equipment has the advantages of high stacking efficiency, good stacking uniformity and wide range of applicable battery size. It is an ideal choice for R&D sample production and small batch trial production equipment.

Main Features:

* The adjustment, operation and maintenance of the machine are simple and easy;

*Suitable for large size range of electrodes;

*Semi automatic stacking and weighing tension control system

*Automatic count and return to zero function

*Automatic maintenance of last used parameter state function after power failure and not in use

*The whole machine is suitable for a wide range of battery sizes

*Foot switch is used to control cylinder action

*The adjustment, operation and maintenance of the machine are simple and easy

*High efficiency, with digital display timer

*Table type, can be placed on the ordinary desktop, the appearance is exquisite and beautiful;

Technical Specifications

Product Name Semi-Auto Stacking Machine MR-BDP200-B
Working Voltage AC220V 50/60Hz
Stacking Electrode Size

200mm x 150mm Max.

44mm x 44mm Min.
Max. Electrode Thickness Piled up thickness < 12mm
Aligning Accuracy ±0.3mm for stacked electrodes
Acceptable Separator Roll Size 220mm O.D Max.

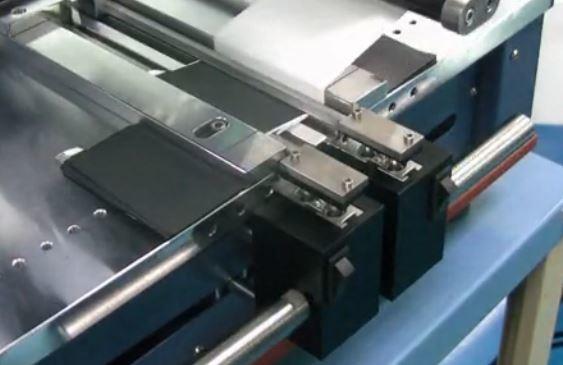

Slidable Electrode Fixture Two slidable fixtures ensure a compact, tight electrode stacking

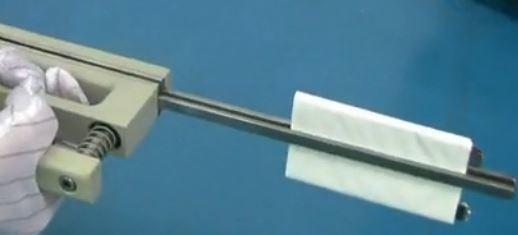

Electrode Tongs One electrode tongs are included for easy electrode pick-up
Suggested Air Pressure

0.4 – 0.6 MPa

(Air compressor is not included in the standard package.)
Product Dimensions 600mm(L) x 650mm(W) x 760mm(H)
Net Weight 50Kg
Applicable environment Ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference
Compliance CE Certified
Warranty Two Years limited warranty with lifetime support

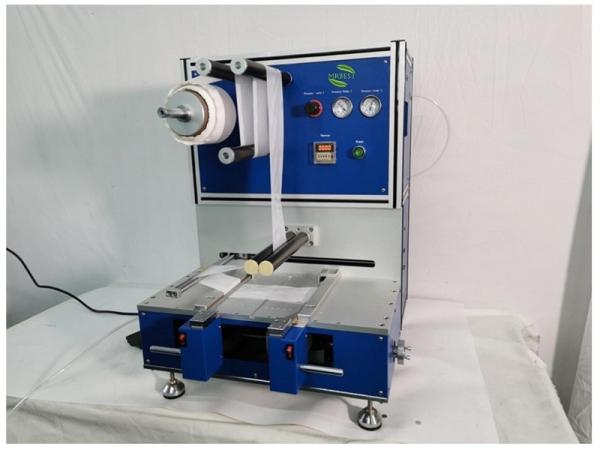

Picture for Reference
