Specifications
Brand Name :
MRBEST
Model Number :
MR-SCK250
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Wooden Packing
Product Name :
Pouch Cell Case Forming Machine
Application :
For Battery Research
Suitable Battery :
Pouch Cell
Suitable Aluminum  Film Thickness :
0.1-0.2mm
Punch Cup Dimension :
Max L250 * W150mm, Customizable
Punching Depth :
≤ 6mm Adjustable, Can Be Customized
Power :
100W
Output Pressure  :
3T
Description

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

MRBEST Automatic Battery Aluminum Laminated Film Pouch Cell Forming Machine for Battery Assembly

Model: MR-SCK250

MR-SCK250 Semi-auto Case/ Cup Forming Machine is used for preparation. It is a semi-auto pouch cell aluminum laminated films cup forming machine, the punching thickness is adjustable. The pouched case without crow’s feet and corner collapse. IR sensor, dual start buttons and protection cover are included for safety operation.

Features

* Adopting four guide pillar structure, sliding up and down smoothly and high precision;

* It is simple and quick to change the mold and adjust the depth.

* Compared with similar products, the aluminum laminated film of the same quality stretches deeper and more stable.

* Precise mold design, no crow's feet and corners at all corners and surroundings after forming;

* Use light curtain and outer cover to protect, safe to use;

* Using Japanese imported mold material and high-strength chrome steel and alloy aluminum, the surface is treated with environmentally friendly electroplating and baking paint;

* Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;

* Easy to operate, safe and reliable, small size;

Specifications

Model Pouch Cell Case Forming Machine MR-SCK250
Source voltage AC 220V/110V, 50/60HZ
Power 100W
Warranty One year limited warranty with lifetime support
Advantages

1. Structure of guide pin, slide up and down smoothly with high precision

2. Change mould, adjust tensile depth simply, quickly

3. Use screen and casing protection, guarantee safety

4. High strength of chrome steel and aluminum alloy,

surface roasts the paint processing through environmental

protection electroplating

Suitable aluminum

film thickness

 0.1-0.2mm
Suitable mold size 250*150mm(L*W), customized, with punching depth ≤6mm
Max. Cup Depth Single pit punching depth ≤6mm
Output 200-400EA/H
Output pressure 3T
Air source 0.5-0.7MPa
Mold materials SS136 Die steel

Dimension

(L*W*H)

460*320*925mm
Weight About 150kg

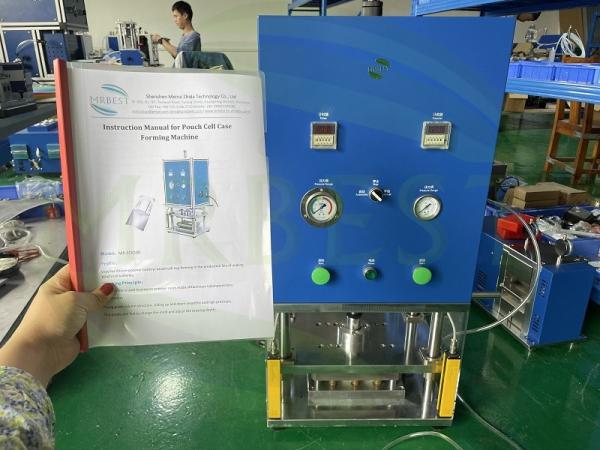

Picture for Reference

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Pouch Cell Assembly Machines

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine
Cylindrical Cell Machine
Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine
Coin Cell Machines
Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

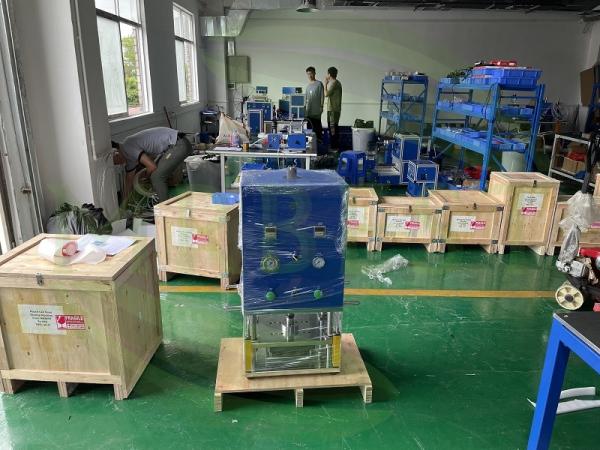

MRBEST Factory Show

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Automatic 100W Pouch Cell Assembly Aluminum Laminated Film Battery Forming Machine

Shenzhen Meirui Zhida Technology Co., Ltd


Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
