Laboratory Battery Research Equipment CR2032 Coin Cell Battery Crimper Machine
Laboratory Battery Research Equipment CR2032 Coin Cell Battery Crimper Machine
Specifications
Brand Name :
MRBEST
Model Number :
MR-QF150
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Wooden Packing
Name :
Coin Cell Battery Crimper
Application :
For Li-Ion Battery Lab Research
Standard Die :
CR20XX , Others Optional
Air Source :
Argon, Nitrogen, Or Compressed Air
Material :
High Strengthen Chrome Steel
Size :
L220 * W220 * H420mm
Weight :
28kgs
Description

Battery Research Equipment Coin Cell Battery Crimper for Crimping CR2032 Coin Cell Cases

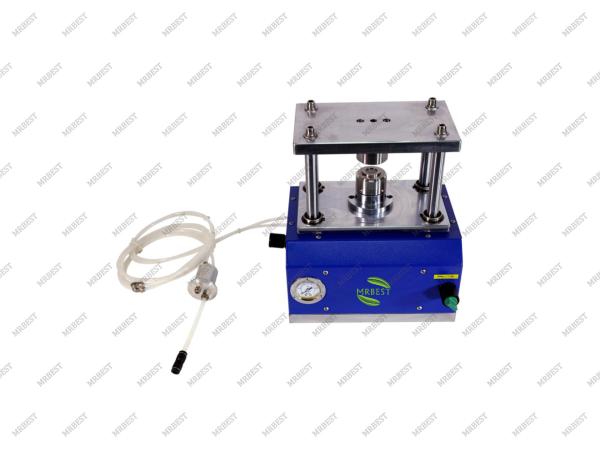

Laboratory Battery Research Equipment CR2032 Coin Cell Battery Crimper Machine

Model: MR-QF150

1. MR-QF150 Pneumatic Coin Cell Crimping Machine is a newly designed coin-cell sealing machine with lighter weight. It’s mainly used for coin cell battery material lab researching,

Capacitor sealing research, also be used in small batch trial production in factories.

equipped with different die, also used for disassemble battery, press electrode sheet, press battery powder, etc.

2. In addition, customers can easily replace the original die for disassembling purpose.

3. It can also be worked in glove box with smaller volume.

Specifications:

Machine Model Pneumatic Coin Cell Crimping Machine MR-QF150
Gas source

0.6 0. 8mpa argon, nitrogen cylinders, or compressed air

(Not suggest to use compressed air in glove box)
Exhaust design Specially designed exhaust port, can external via connected by KF40 and other devices
Gas consumption The gas consumption of single seal is about 480 ml
Crimping pressure

Manual control valve, maximum pressure 1mpa.

recommended pressure 0.7mpa. accuracy ±0.5%
Crimping stroke 30mm
Crimping die Standard crimping die is CR20xx, with optional die sets
Disassembling die

Optional or added various specifications such

as CR16, CR20, CR24,CR30, etc.
Machine size L290mm*W205mm*H330mm
N.W 25Kg
Structural material High strength chromium steel, the surface after environmental plating and spray treatment will never rust.
Remark With the function of preventing short circuit of battery crimping

Our Advantages

1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.

2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.

3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .

4. 1 year warranty plus lifetime technical support.

5.All the parts use on machine, in stock forever.

6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have

more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.

7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
