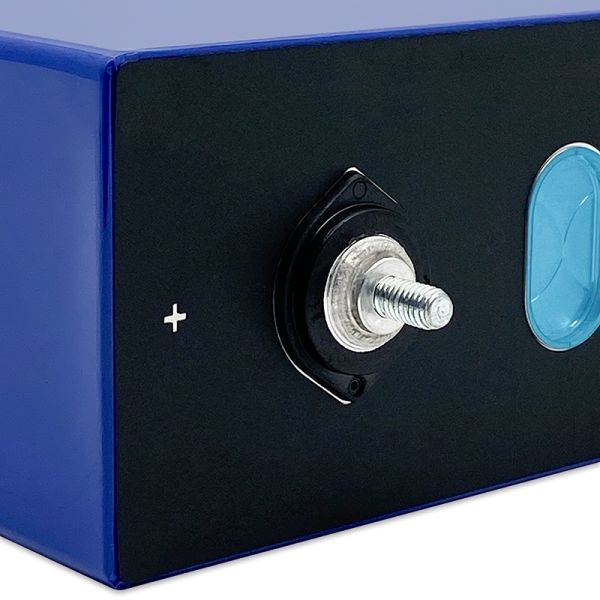

280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
Specifications
Place of Origin :
Guangdong, China
Model Number :
3.2V280Ah, 3.2V 280Ah
MOQ :
Negotiation
Price :
Negotiation
Brand Name :
BAIDUN
Payment Terms :
Credit card, T/T,PayPal
Delivery Time :
5-8 working days
Certification :
CE、FC、MSDS、ROHS
Supply Ability :
≥30000 pieces/month
Packaging Details :
The box size is 370*260*240mm, Use high-density foam to fix, one box contains two batteries
Keywords :
Lifepo4 battery
Cycle life :
6000 times
Product name :
LF280
Warranty :
3YEARS
AC Impedance Resistance :
≤0.25mΩ
Charge temperature :
0°C ~ 45°C
Max charge current :
1C（280A）
Max. Discharge Current :
1C（280A）
Weight :
5350±50g
Dimension :
174*72*205mm
Description
Lifepo4 Prismatic Battery EV 280AH Rechargeable Battery 6000 Cycles For Solar Power System
Product Description
This product is a 3.2V280AH rechargeable Lifepo4 battery, which is one of the best-selling products in my shop. K series, original brand, unique QR code, A+ grade, 6000 cycles, square aluminum shell structure, safe explosion-proof liquid leakage, high discharge rate, low internal resistance, high capacity, long cycle life, green and environmental protection, can be used for various Off-grid demand for electric vehicles, home energy storage, communication energy storage and solar energy storage. Wide range of applications, can be connected in series or in parallel to make 12V24V48V or even larger battery pack devices

Lifepo4 battery 3.2V 280ah General Technical Parameter

Item Parameter Remark
1 Nominal Capacity 280.0 Ah (25±2) °C, Standard charge and discharge
2 Typical Voltage 3.2 V
3 AC Impedance Resistance( 1 KHz) <0.25 mΩ
4 Standard charge and discharge Charge / discharge current 0.5 C/0.5 C
Cut off voltage of charge / discharge 3.65 V/2.5 V
5 Maximum charge / discharge current Continuous charge / discharge 1 C/1 C According to continuous / pulse charge and discharge ammeters
Pulse charge / discharge (30s) 2C/2C
6 Recommended scope of SOC 10% 〜90% N.A.
7 Charging Temperature 0 °C〜55 °C According to continuous / pulse charge and discharge ammeters
8 Discharging Temperature -20 °C~55 °C
9 Storage temperature Short term (within 1 month) -20°C-45°C N.A.
Long term (within 1 year) 0°C 〜35°C
10 Storage humidity range <90%
11 Self^discharge rate per month <3%/month Temperature: (25±2)°C, Storage scope of SOC: 30% 〜50%SOC


Main Performance

No. Item Requirements Measuring Procedure
1 Rate discharge performance at25°C

Discharge capacity/nominal capacity×l00%

A) 0.5C(A)>100%

B) 1.0C (A)>98%

 After standard charge and Ih rest, discharge to 2.5V cutoff with the current of 0.5 C (A), 1.0C (A), respectively. If the discharge capacity fails to meet the technical requirements, this test is allowed to be repeated three times
2 Discharge performance at different temperature

Discharge capacity/nominal capacity×100 %

A) 55°C>95% (Cutoff 2.5V)

B) -20°C>70% (Cutoff 2.0V)

 Measure the initial capacity and state of the battery: A) after standard charge and 5h rest at 55°C, discharge to 2.5V cutoff with the current of 0.5C(A)； B) after standard charge at 25±2°C and 24h rest at -20°C±2°C, discharge to 2.0V cutoff with the current of 0.5C(A).
3

The

capacity retention and recovery at 25°C

Capacity Retention ≥ nomi nal capacity×95 %

Capacity Recovery ≥ nomi nal capacity×97 %

 Measure the initial capacity and state of the battery, after standard charge and stored for 28 days, discharge to 2.5V cutoff with the current of 0.5C (A), calculate the remaining capacity the retention can be expressed as a percentage of nominal capacity. After standard charged and 30mins rest, calculate the discharging capacity (Ah), the recovery can be expressed as a percentage of nominal capacity. The recovery is measured with discharge current 0.5C (A) with 2.5V cut-off at (25±2) °C.
4

cycle life at

25 °C

 >6000 cycle @0.5C/0.5C Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (25±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the
initial capacity. The number of cycles is defined as the cycle life of the battery.
5

cycle life at

45 °C

 >2500 cycle @0.5C/0.5C Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (45±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the initial capacity. The number of cycles is defined as the cycle life of the battery.

Product Description

(1) We order batteries directly from the brand. Guarantee A grade, brand new, genuine, sufficient capacity, voltage, resistance, and data matching.

(2) There are three styles of battery terminals to choose from. They are: original terminals, punched terminals and soldered studs. Punch M6, stud M6. Generally, welding studs are easier to assemble.

(3) A battery is equipped with a bus bar and two screws as standard. [Bus size: 90*20*2mm (copper nickel plated) screw size: M6]

(4) Lithium battery modules are connected in parallel or in series

(5) Warranty period: 3years

280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles







Packing & Delivery
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles

Applications
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
Certifications

Logistics Transport
280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
Company Profile



Baidun has been deeply involved in the new energy Lifepo4 lithium battery for 12 years!
The main products are lithium iron phosphate batteries for solar energy storage systems, lithium titanate batteries, ternary lithium batteries, lithium ion battery cells, battery packs, portable power supplies, household energy storage, commercial off-grid energy storage and solar system chargers.
Product applications cover the three major areas of "power, consumption, and energy storage". Widely used in: various electric vehicles, photovoltaic energy storage, household energy storage, signal systems, emergency lighting systems, communication equipment, solar and wind energy storage systems, backup power supplies for fire-fighting equipment, UPS (uninterruptible power supply), portable digital products, etc. industry.
Baidun has always adhered to the business philosophy of high safety, high quality and environmental protection as its core values. Provide customers with the best overall power supply solutions, OEM/ODM services and comprehensive after-sales support to meet the different needs of customers! Honesty and professionalism, this is also our responsibility!

280AH EV Lithium Lifepo4 Prismatic Battery 6000 Cycles
