Specifications
Brand Name :
EA ENERGY
Model Number :
24V 18650 12000mAh
Certification :
CE MSDS UN38.3
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability :
100000pcs Per Day
Delivery Time :
1-5 Work days
Packaging Details :
72*72*10cm 100pcs / carton GW:25kg
Model :
Lithium Ion 18650 Battery Pack
Diameter :
72mm * 72mm * 70mm
Voltage :
24V
Capacity :
12000mAh
Cycle life :
>1000 cycles
Cell type :
18650 Battery cells
Standard charge current :
Constant Current 1C
Impedance :
<50mΩ
Standard discharge current :
Constant Current 1C
Certifications :
CE /UL/UN38.3/ MSDS
Description

24V Lithium Ion Battery 12Ah Lithium Ion 18650 Battery Pack With Charger

24V 12Ah Lithium Ion Battery pack for Security system

Quick details of 24V 12Ah Lithium Ion Battery pack:

Cycle life: >1000 cycles

Dimension: 72*72*70mm / Customized

Nominal Capacity: 12Ah

Charging Voltage: 24V

Constant Discharge Current: 12A

Weight: 0.65kg

Optional: Bluetooth Monitoring APP

OEM/ ODM: Accept OEM / ODM Customize

Certification: UN38.3/MSDS/KC

Specifications of 24V 12Ah Lithium Ion Battery pack:

NO Items Specification Remarks
1 Nominal Capacity 12000mAh 1C Discharge
1C Discharge
2 Nominal Voltage/shipping voltage 24V Voltage
3 Discharge Cut-off Voltage 24V 1C Discharge
1C Discharge
4 Charge Limited Voltage 24~26V 0℃~45℃
5 Standard Charge Current 1 C5A 0℃~45℃
6 Standard Discharge Current 2 C5A -20℃~ +60℃
7 Rapid Charge Current 0.5C5A 10℃~45℃
8 Rapid Discharge Current 0.5C5A -20℃~ +60℃
9 Max. Charge Current 1 C5A
Max Pulse Current 1C
10 Internal Impedance ≤50mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 650g Weight 650g
12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 24~26V
≤3 months 0℃~ +30℃ Ex-factory Voltage 24~26V
≤12 months 20±5℃

Feature Of 24V Lithium Ion Battery Packs:

1. large Capacity 12000mAh Li-ion power battery makes your vacuum run longer and more reliable

2. With Charger and universal 24VDC compatibility within allowable current rating

3. 24V12Ah-288Wh Lithium Ion Battery, PVC Soft Pack with Discharge and Charge Connectors

4. BMS integrated fully automated near-zero maintenance battery system,provides reliable multiple safety protection functions for short-circuit, over-charge, over-voltage, over-heat and over-current.

5. Longer Service Life & Low self discharge. Can be recharged up to 1,000 times with no memory effect, more economical. Can maintain 80% capacity for 12 months.

Products Details Of 24V Lithium Ion Battery Packs:

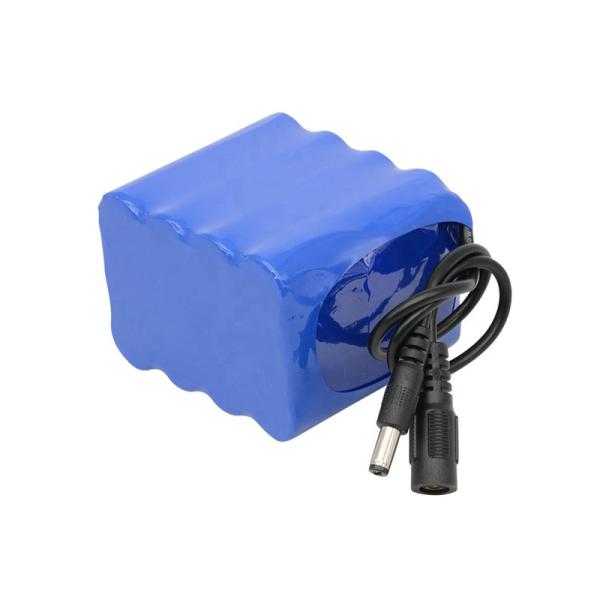

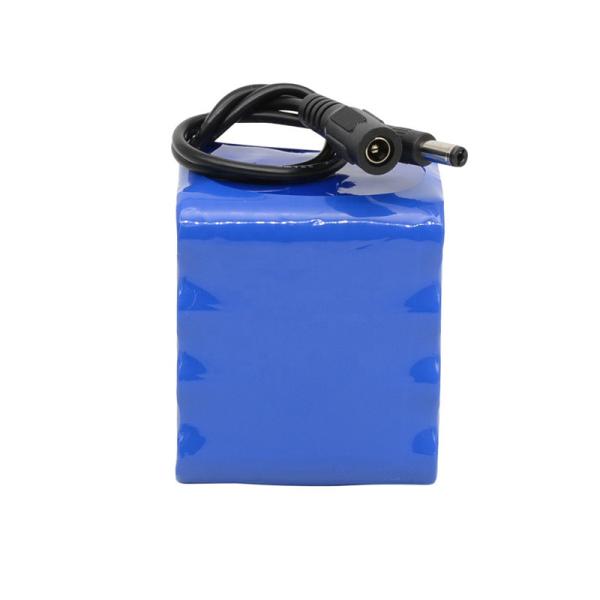

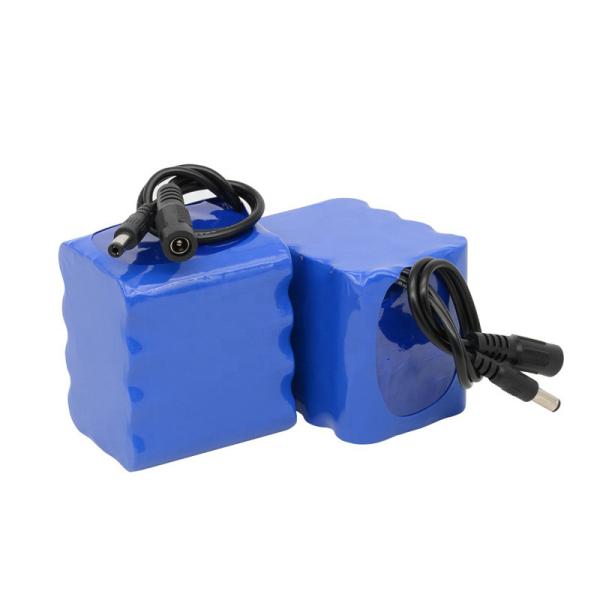

12Ah 24V Lithium Ion Battery , Lithium Ion 18650 Battery Pack With Charger

Applications Of 24V Lithium Ion Battery Packs:

UPS, Solar, Wind, Mobile generator, Back up power
Solar power bank, Solar LED lighting, Solar street light

Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
Electric drill, electric saw, lawn mower and so on
Remote control cars, boat, aircraft, toys
Medical devices, equipment and portable equipment
Bluetooth, GPS, Wearable device, Power supply, Wireless

12Ah 24V Lithium Ion Battery , Lithium Ion 18650 Battery Pack With Charger

Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
Pack design / External Case design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
100% PCM test by IQC
100% Capacity test by OQC

3. Delivery on time & excellent service:
Fast Delivery in 10 days if stock
8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
Comprehensive Battery Test Center (Safety and Reliable test)
Powerful ODM Ability to Afford Customized Design Requirement
