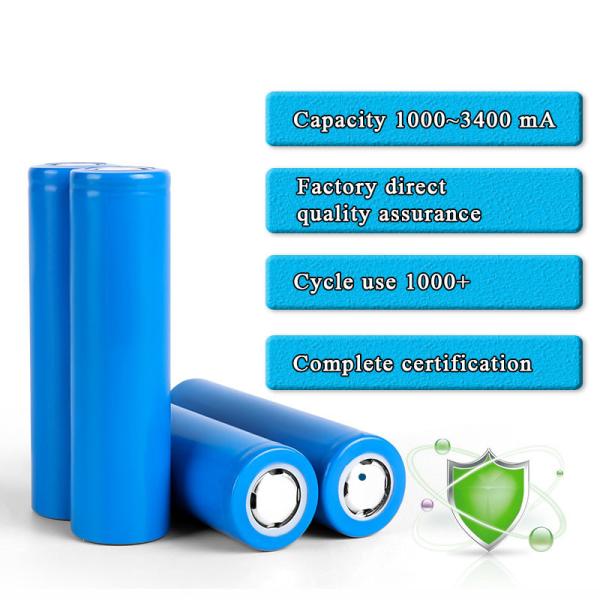

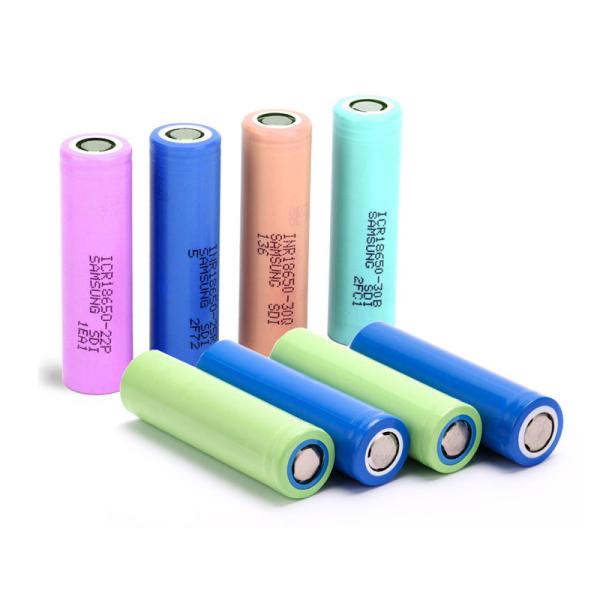

3.7V 18650 Lithium Ion Battery Cells CE UL UN38.3 MSDS Compliant
3.7V 1000mAh~3500mAh 18650 Lithium Ion Battery Cells 18650 rechargeable battery
Quick details:
1. Diameter*Height: 18*18*65mm (Lithium Ion 18650 size )
2. Nominal Voltage: 3.7V
3. Nominal Capacity: 1000-3500 mAh
4. Cycle life: 2000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable battery cell
7. CE , UL ,UN38.3 , MSDS compliant
18650 rechargeable battery Description:
Lithium Ion battery Cells have a large Scope of application :
Electric bicycle, E-bike, EV, Electric scooter, Golf carts, electric bikes, RV, Electric wheelchair
LED lamps, traffic signs, portable small appliances, electric tools, toys, robot etc
Emergency light,dive flashlight,Solar lawn lamp,LED light, lawn mower.
flashlight,outdoor light,Searchlight,tactical light, solar street light
Medical Instrument, Rehabilitation Equipment, Diagnosis Equipment,Medical Testing Device, Medical Monitor
Detecting instrument, Prospecting instrument, Testing instrument., Air/ water testing meter,
Mobile communication equipment , Scaner, Mapper
Power Tool, Wireless Machine, Portable Instrument, POS Machine, Alarm Monitor etc.
Specifications:
NO | Items | Specification | Remarks | |
1 | Nominal Capacity | 1000-3500mAh | 0.2C A Discharge | |
0.2C A Discharge | ||||
2 | Nominal Voltage/shipping voltage | 3.7V | Voltage | |
3 | Discharge Cut-off Voltage | 2V | 0.2C 5A Discharge | |
0.2C 5A Discharge | ||||
4 | Charge Limited Voltage | 5V | 0℃~45℃ | |
5 | Standard Charge Current | 1 C5A | 0℃~45℃ | |
6 | Standard Discharge Current | 2 C5A | -20℃~ +60℃ | |
7 | Rapid Charge Current | 0.5C5A | 10℃~45℃ | |
8 | Rapid Discharge Current | 0.5C5A | -20℃~ +60℃ | |
9 | Max. Charge Current | 1 C5A | ||
Max Pulse Current | 3C | |||
10 | Internal Impedance | ≤10mΩ | AC 1kHz condition | |
At AC 1kHz | ||||
11 | Weight | About 40g | Weight 40±2g | |
12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 3.7~4.2V |
≤3 months | 0℃~ +30℃ | Ex-factory Voltage3.7~4.2V | ||
≤12 months | 20±5℃ |
Products Details :
Wide range of applications .It can be used for laser pointers , strong light flashlights , children's toys ,
medical equipment , electronic digital , Luwai headlights, etc
Applications:

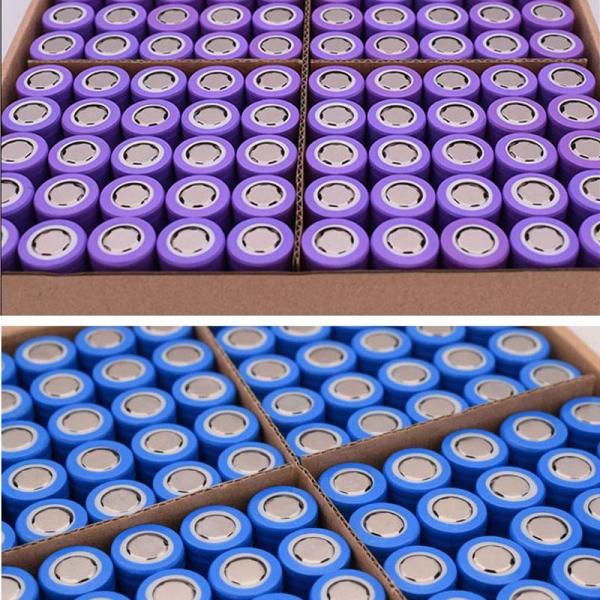

Packing details :
