Specifications
Brand Name :
EA ENERGY
Model Number :
12.8V 120A
Certification :
CE MSDS UN38.3
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability :
100000pcs Per Day
Delivery Time :
1-5 Work days
Packaging Details :
329*172*220mm 1pcs / carton GW: 15kg
Cell type :
Lithium LiFePO4 Battery Pack
Model :
12V 120Ah LiFePO4 Battery
Diameter :
329*172*220mm
Voltage :
12.8V
Capacity :
120A 1536Wh
Impedance :
<50mΩ
Standard charge current :
Constant Current 0.2C
Standard discharge current :
Constant Current 0.2C
Cycle life :
>7000 cycles
Certifications :
CE /UL/UN38.3/ MSDS
Description

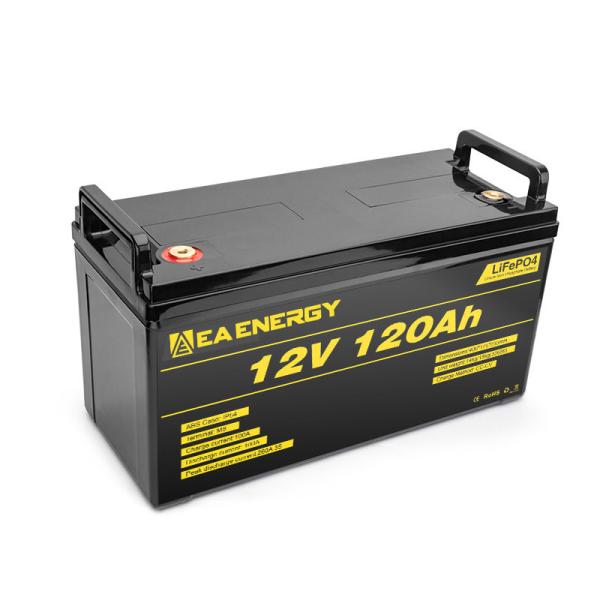

7000 Cycles 12V 120Ah LiFePO4 Battery Pack Low Self Discharge Rate

12V 120Ah Deep Cycle LiFePO4 Battery Lithium Batteries With Built-In 100AH BMS And 7000+ Cycles

Deep Cycle LiFePO4 Battery details:

1. Diameter*Height: 329*172*220mm

2. Nominal Voltage: 12.8V

3. Nominal Capacity: 120A 1536Wh

4. Cycle life: 4000 cycles

5. Standard charging ways: CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 battery

7. CE , UL ,UN38.3 , MSDS compliant

Deep Cycle LiFePO4 Battery Description:

EA ENERGY 12.8V 120Ah LiFePO4 battery can be connected in parallel & in series for larger capacity. Allow being extended up to 4S or 4P to get Max 480Ah capacity or Max 48V(51.2V) voltage. Widely used in most areas such as RV, Solar, Household Battery, Off-Grid and Electric Scooter, Electric Handicap , home backup power, RV, camping, sailboat, etc. and so on.

LiFePO4 battery can be recycled up to 4000~8000 times with 10 years of service life. The Grade A LiFePO4 Cells is with higher energy density and highest-level safety based on UL certificates for the cells. With the advantages of 1/3 lightweight, low self-discharge rate, and 3 times usable energy, EA ENERGY LiFePO4 battery can perfectly replace the lead-acid battery.

100% safe, nontoxic, renewable energy. LiFepo4 battery will not burn when overcharged, over discharged, over current or short circuit, and can withstand high temperatures without decomposition. Smart BMS inside can handle cell balancing, low & high voltage cutoff, short circuit protection and temperature protection. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.

Our 12.8V 120Ah Lithium battery builds in 100A BMS, which can prevent the LifePO4 battery from the most common issue causing of battery failure, such as overcharge, over-discharge, over-current and short circuit. Our 12.8V 120Ah LiFePO4 battery only needs a 5-hour fast charging time when charging by 14.6V 25A LiFePO4 battery charger, saving 50% time in charging compared with lead-acid battery which needs 10 hours charging time to around 70% capacity.

EA ENERGY 120Ah LiFePO4 battery built-in 100A BMS, which supports 120A max. continuous charge/discharge current, 1536W max. Load power and 3072Wh max. energy. Equipped with exceptional quality 100A BMS can also limit the continuous charge/discharge current, our 240Ah LiFePO4 battery can better protect the battery performance and prolong the cycle times. We do 100% testing for all 120ah batteries before shipping them to you.

EA ENERGY 12.8V 120Ah LiFePO4 battery provides 4000+ cycles times and 1536Wh energy, which means our 100Ah battery produces 6140kWh (1536Wh*4000 cycles times=6140kWh) in its 10-year lifespan, which means you will save 1/2 of power fees compare with using the utility power. Our LiFePO4 batteries are widely used for solar system, RV trip and outdoors activities, you could enjoy self-reliant colorful life when using the battery in solar source.

EA ENERGY provides 5-year warranty for 12.8V 120Ah LiFePO4 battery.

Deep Cycle LiFePO4 Battery Specifications:

Electrical

Characteristics

Nominal Voltage 12.8V
Nominal Capacity 120Ah@0.2C
Energy 1536Wh
Internal Resistance 45≤mΩ
Cycle Life 7000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge ≤3.5% per month at 25℃
Standard Charging Max.Charging Voltage 14.0~14.6V
Charging Mode At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, andthen,changed continuously with constant voltage of 14.6V until the current was notmore than 0.02C5A
Charging Current 25A
Max.Charging Current 60A
Standard Discharging Discharging Current 25A
Max. Continuous Current 120A
Max.Pulse Current 240A(<3S)
Discharging Cut-off Voltage 10.0V
Operating Condition Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55
Structure Cell & Format IFR32700
Casing Plastic

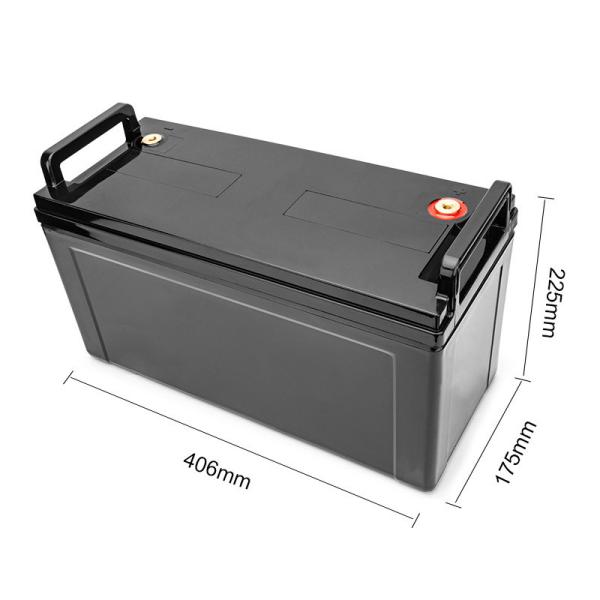

Dimension(L*W*H*TH) 329*172*243mm
Weight Approx. 13Kg
Terminal M8

Deep Cycle LiFePO4 Battery Products Details :

7000 Cycles 12V 120Ah LiFePO4 Battery Pack Low Self Discharge Rate

Deep Cycle LiFePO4 Battery Applications:

12V 120Ah LiFePO4 battery pack widely used in most areas such as RV, Solar, Household Battery, Off-Grid and Electric Scooter, Electric Handicap and so on. Note: The battery cannot be used as a starting battery .
