Solar 48V 500Ah 25kw Home Battery Storage System Stacked Off Grid
Solar 48V 500Ah 25kw Home Battery Storage System Stacked Off Grid
Solar 48V 500Ah 25kw Home Battery Storage System Stacked Off Grid
Solar 48V 500Ah 25kw Home Battery Storage System Stacked Off Grid
Specifications
Brand Name :
EA ENERGY
Model Number :
48V 500Ah
Certification :
CE MSDS UN38.3
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability :
1000pcs Per Day
Delivery Time :
1-5 Work days
Packaging Details :
603*430*1400mm 1pcs / carton GW: 290kg
Model :
Stacked Home Solar Battery
Diameter :
603*430*1400mm
Cycle life :
>6000 cycles
Voltage :
51.2V
Impedance :
＜100mΩ
Capacity :
500Ah
Standard discharge current :
Constant Current 1C
Standard charge current :
Constant Current 1C
Cell type :
3.2V LiFePO4 battery cells
Certifications :
CE /UL/UN38.3/ MSDS
Description

48V 500Ah Home Solar Battery Stacked Off Grid Home Battery Storage System

Home Solar Battery System details :

1. Diameter*Height : 603*430*1400mm
2. Nominal Voltage : 51.2V
3. Nominal Capacity : 500Ah
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With 3kw~5kw inverter
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 5 Years

Home Solar Battery System Specifications :

Performance parameters
output power
10KW
15KW
20KW
25 KW
maximum output power
3KW/4KW/5KW optional
3KW-5KW optional
3KW-5KW optional
3KW-5KW optional
Rated voltage
51.2V
51.2V
51.2V
51.2V
Rated Capacity
200AH
300AH
400AH
500AH
Continuous discharge current
100A
100A
100A
100A
Peak maximum discharge current
110A/10S
110A/10S
110A/10S
110A/10S
Standard charging current
50A
50A
50A
50A
Fast charge current
100A
100A
100A
100A
Number of expandable batteries
2~15
3-15
4-15
5-15
Optional capacity range
10.24~76.8KWH
15.36-76.8KWH
20.48-76.8KWH
25.6-76.8KWH
cooling method
self-cooling
self-cooling
self-cooling
self-cooling
Battery Type
Lithium Iron Phosphate
Lithium Iron Phosphate
Lithium Iron Phosphate
Lithium Iron Phosphate
design life
＞15 years@25℃
＞15 years@25℃
＞15 years@25℃
＞15 years@25℃
cycle life
≈10000 times
≈10000 times
≈10000 times
≈10000 times
≈10000 times
50HZ/60HZ auto detect
50HZ/60HZ auto detect
50HZ/60HZ auto detect
50HZ/60HZ auto detect
grid voltage range
230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%
230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%
230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%
230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%
PV maximum input power
4200W
4200W
4200W
4200W
MPPT voltage range
60-115Vdc
60-115Vdc
60-115Vdc
60-115Vdc
The charging and discharging efficiency of the whole machine
>92%
>92%
>92%
>92%
battery voltage range
40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be
set)
40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be
set)
40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be
set)
40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be
set)
Warranty
Battery (10 years) Inverter (5 years)
Battery (10 years) Inverter (5 years)
Battery (10 years) Inverter (5 years)
Battery (10 years) Inverter (5 years)
size/weight
602*403*750mm
131KG
602*403*950mm
200KG
602*403*1350mm
255KG
602*403*1550mm
311KG
Installation method
Stacked
Stacked
Stacked
Stacked
Certified Specifications
certified product
CE, UN38.3, MSDS, Shipping, Dangerous Package
Cell certification
CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3

Home Solar Battery Features:

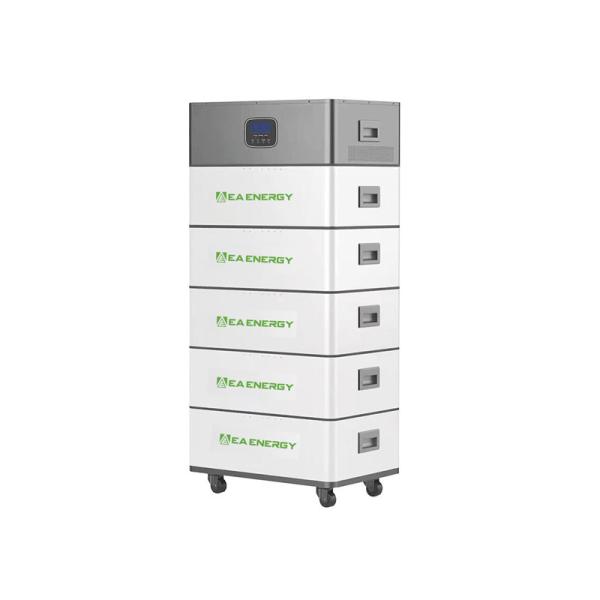

EA ENERGY W500 25kWh Home Battery Storage System

A cover is added to the back of the product to hide the interface, which can cover up the messy wiring and make your room look neater.

There is an indicator light on the front of the product, you can directly see the operating status and remaining power of the battery.

A cover is added to the back of the product to hide the interface, which can cover up the messy wiring and make your room look neater.

Modular design Easy installation and compact, without extra cables .Save installation time and labor. WiFi App Management Optional. Longer Cycle Life:6000 Cycle Life @80%DOD.

Built in MPPT solar controller , high efficiency ,multiple DC output ports , support charging different devices simultaneously

Easy to move with wheels.Compact and portable design,indoor and outdoor workable. Double input:Solar energy charging adn Utility Grid charging.

Adopt high safety, long life, excellent performance LiFePO4 battery

OEM Supported with low MOQ


Flexible configuration, multiple battery modules can be stacked for expanding output and Capacity.



Home Solar Battery System Products Details :
Solar 48V 500Ah 25kw Home Battery Storage System Stacked Off Grid
Solar 48V 500Ah 25kw Home Battery Storage System Stacked Off Grid

Home Solar Battery System Applications :
The battery storage system can be applicated with solar panels ,mountain communication base station ,communication base station energy storage ,backup power , outdoor micro station , wind power system etc...


Solar 48V 500Ah 25kw Home Battery Storage System Stacked Off Grid
