Specifications
Brand Name :
EA ENERGY
Model Number :
24V 60Ah
Certification :
CE MSDS UN38.3
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability :
100000pcs Per Day
Delivery Time :
1-5 Work days
Packaging Details :
130*145*340mm 1pcs / carton GW: 5kg
Model :
24V LiFePO4 Battery Pack
Cell type :
3.2V LiFePO4 Battery Cells
Voltage :
25.6V
Capacity :
60Ah
Standard charge current :
Constant Current 0.2C
Impedance :
<50mΩ
Standard discharge current :
Constant Current 0.2C
Diameter :
130*145*340mm
Cycle life :
>5000 cycles
Certifications :
CE /UL/UN38.3/ MSDS
Description

24V 60Ah LiFePO4 Lithium Ion Battery Pack 25.6V Deep Cycle Battery For Scooter

Description of 24V 60Ah LiFePO4 Battery:

1. Diameter*Height : 135*140*340mm

2. Nominal Voltage : 25.6V

3. Nominal Capacity : 60Ah

4. Cycle life : 5000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 battery cell

7. CE , UL ,UN38.3 , MSDS compliant

Specification of 24V 60Ah LiFePO4 Battery:

NO Items Specification Remarks
1 Nominal Capacity 60Ah 0.2C Discharge
0.2C Discharge
2 Nominal Voltage/shipping voltage 24V Voltage
3 Discharge Cut-off Voltage 24V 0.2C Discharge
0.2C Discharge
4 Charge Limited Voltage 26V 0℃~45℃
5 Standard Charge Current 12A 0℃~45℃
6 Standard Discharge Current 60A -20℃~ +60℃
7 Rapid Charge Current 0.5C 4A 10℃~45℃
8 Rapid Discharge Current 0.5C 4A -20℃~ +60℃
9 Max. Charge Current 1C 60A
Max Pulse Current 3C
10 Internal Impedance ≤100mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 3kg Weight 3kg
12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 24~26V
≤3 months 0℃~ +30℃ Ex-factory Voltage 24~26V
≤12 months 20±5℃


Feature Of 24V 60Ah LiFePO4 Battery:

1. 24V 60Ah LiFePO4 battery Life expectancy is 8-10 times that of lead-acid batteries.The weight is more lighter.

LiFePO4 battery provides 5000+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. The weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity.

2. No memory effect and rechargeable.the battery life is more longer

Our LiFePO4 lithium battery provides 5000+ cycles, 10 Years Lifetime. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. 100Ah lithium battery can be recycled without producing harmful elements to the environment.

3. Safer and more environmentally friendly, No heavy metals and hazardous substances.

4. Built-in IC chip will prevent battery pack over charge, over discharge, over-current,

over-heat, short circuit .

LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, overcurrent, and short circuit with excellent self-discharge rate. Operating Temp: Charge: 0°C~50°C; Discharge: -20°C~60°C. Our battery is IP65 waterproof, setting you free from worrying to install indoors or outdoors.

5. ≥80% Capacity After 2000 Cycles

Our LiFePO4 battery have ≥80% Capacity After 2000 Cycles .this excellent performance ensures that my battery does not need frequent maintenance.and wider application such as solar home, RV, campers, golf cart, motor homes, off-grid applications.

6. We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..

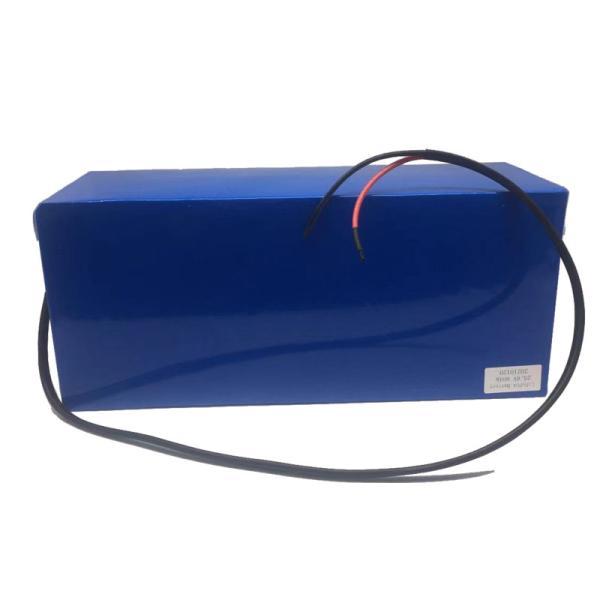

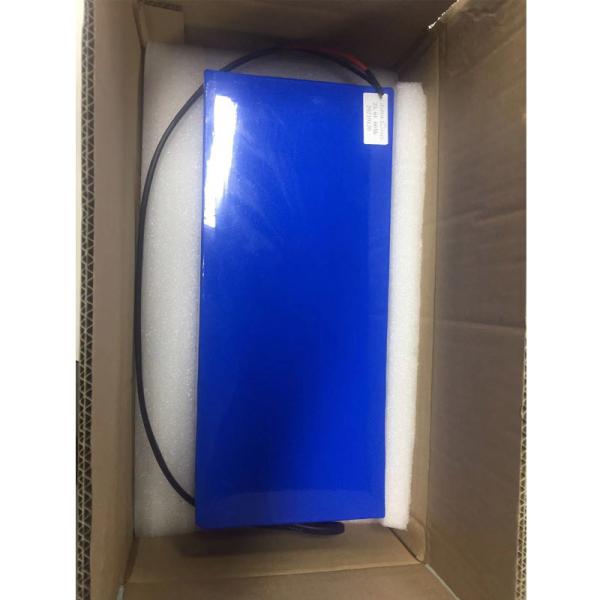

24V 60Ah LiFePO4 Battery Details :

24V 60Ah LiFePO4 Lithium Ion Battery Pack 25.6V Deep Cycle For Scooter

24V 60Ah LiFePO4 Battery Applications:

24V 60Ah EA ENERGY Deep Cycle LiFePO4 battery has 5000-8000 cycles and 10 years lifetime. Stable and excellent performance makes it very suitable for DIY loud speaker, air pump, fish finder, golf car, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and off-grid ,UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, applications.

24V 60Ah LiFePO4 Lithium Ion Battery Pack 25.6V Deep Cycle For Scooter
