36v Electric Vehicle Motorcycle Battery Pack 6AH 9AH 12AH 13AH
Electric Vehicle Motorcycle Battery details :
1. Diameter*Height : 190*67*86mm (Lithium Ion 18650size 10S)
2. Nominal Voltage : 36V
3. Nominal Capacity : 6AH 9AH 12AH 13AH
4. Cycle life : 500 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion rechargeable battery cell 18650
7. CE , UL , UN38.3 , MSDS compliant
Electric Vehicle Motorcycle Battery Specifications :
Model | 36v 18650 |
Rated capacity | 6.AH 9AH 10.4AH 12AH 13AH |
Rated voltage | 36 V |
Technical Description | 3.7 V / 18650 cells |
Combination | 4-parallel 10-series |
Battery size | 190*67*86mm |
Discharge voltage | 27 +/- 1 V |
Charging voltage | 42 V |
Rated discharge current | 15A |
Instantaneous maximum discharge current | 30A |
Maximum continuous discharge current | 15A |
Charge Mode | CC / CV |
Standard charging current | 2A |
Charging time under standard charging current | 4 hours |
Maximum continuous current charge | 5A |
With current fast charging charging time | 2 hours |
Temperature range | 0-45°c |
Exhaust temperature range | 20°c |
Battery weight | 1.7 kg |
Electric Vehicle Motorcycle Battery Description :
Brand New grade A batteries cell. Fit for 100W to 1000W Electric Vehicle , e-bike/scooter
Electric Vehicle Motorcycle lithium battery built-in BMS Protective Board fuse and battery cell fixactor, prevent over charge, and short circuit, prevent over charge, and short circuit, prevent over charge, and short circuit
Our experienced team utilizes proven technology and innovative engineering to design, assemble, and test rechargeable Electric Vehicle Motorcycle batteries. We support high and low volume manufacturing for a diverse customer base that includes some of the most recognized companies in the world. Whatever the power requirements of your mobile or portable Equipment, we have the ideal batteries solution.
Products through UL, CE, FCC, RoHS certificated.
Notes for Electric Vehicle Motorcycle Battery operation:
1. No charge and discharge: it is forbidden for batteries to charge and discharge around inflammable and explosive objects (such as sofa, bedding, cigarette lighter, etc.).
2. Do not touch aluminum foil packaging materials with sharp objects, do not bend the top sealing edge, do not open or break the folding edge, do not bend the fragile ear, do not fall, impact or bend the battery, do not use the battery with short circuit or reversed positive and negative electrode at any time.
3. Other matters: prevent short circuit in the battery packaging, do not remove the battery, do not put the battery into fire, do not immerse the battery in the liquid (such as water, beverage, juice, coffee), do not replace the protection plate, do not use the damaged (such as: leakage, puncture, bulge, etc.) battery.

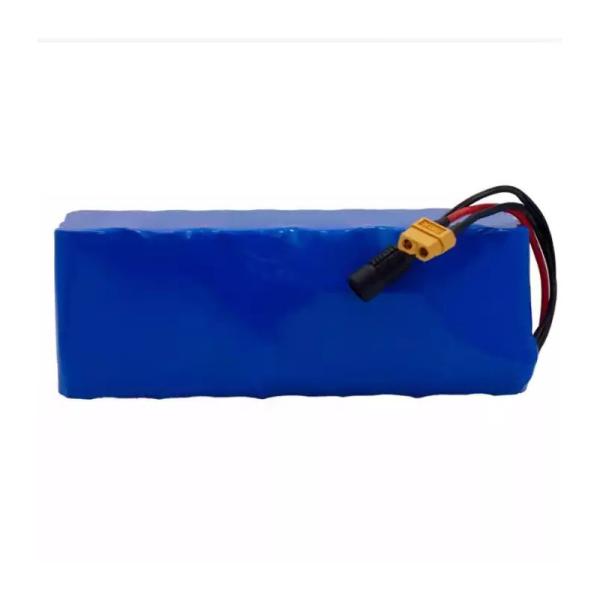

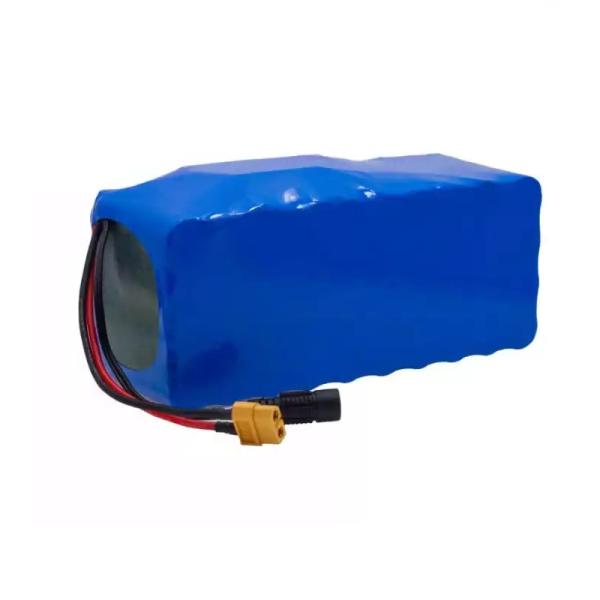

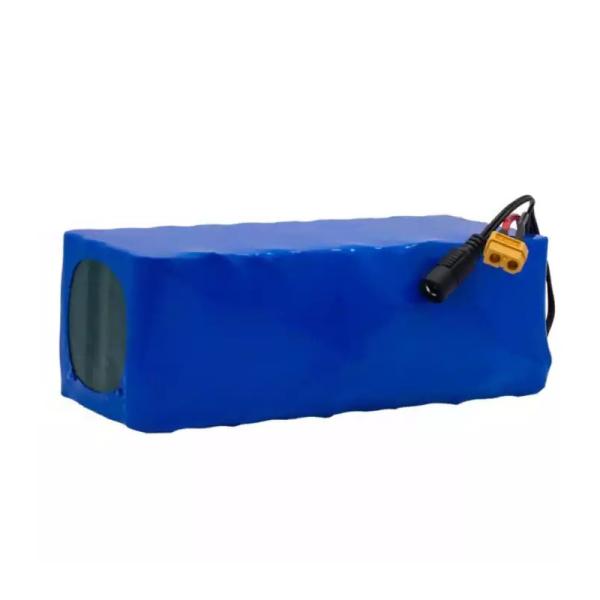

Electric Vehicle Motorcycle Battery Products Details :
Electric Vehicle Motorcycle Battery Applications :
36V Electric Vehicle Motorcycle Battery can compatible with electric scooter,ebike,electric motorcycle,electric tricycle,solar panel.In addition, If you are specialize in refitting ebike, the battery is very suitable.
