4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
Specifications
Brand Name :
/OEM
Model Number :
4/5A2150
Certification :
UL IEC EN61951
Place of Origin :
CHINA
MOQ :
3000pks
Price :
negociate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300000pcs/day
Delivery Time :
3-30days according the qty
Packaging Details :
20pcs/box, 480pcs/ctn
Material :
NI-MH
SIZE :
4/5A
Capacity :
2150mAh
Voltage :
1.2V
Type :
NI-MH rechargeable battery
Application :
Power Tools
Description

NIMH 4/5A2150mAh 1.2V battery with UL IEC/EN61951 certification.

  • Ready To Use and low self discharge technology to keep high capacity retention

  • OQC report and Lab testing offered before battery delivery to keep tracking records

  • Safety battery struction and maintenance free cyle life more than 500 cycles

  • MSDS UN38.3 CB IEC DG License for overseas air sea and courier delivery

1. Specification of the battery pack:

Description(项目)Specification(规格)
Model(产品号)H-4/5A2150
DimensionsSize4/5A
Diameter/(mm)17.0+0/-0.7
Typical Diameter/(mm)16.8
Height/(mm)43.0+0/-1.5
Typical Height/(mm)41.6
Weight/(g)Approx. 32.5
Nominal Voltage/(V)1.2
Nominal capacity/(mAh)2150
Internal Iedance/(test after full charging)(mΩ)≤35
Discharge Cut-off Voltage/

1.0V

Ambient teeratureChargeStandard 0℃ to 40℃
Fast 0℃ to 40℃
Discharge -10℃ to 50℃
Storage＜1 year/-10℃ to 30℃
＜3 months/月-10℃ to 40℃
The relative humidity should keep with in 65±20%

Sale delivery: 3 -4days.
Mass production period: 7-10days


2. Discharge characteristic
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
3. Safety test

Over discharge: 0.1C charge for 48hrs No conspicuous deformation and/or leakage.
Charge reserve: Standard charge Storage: 28 days Standard discharge (0.2C) ≥180min
Humidity: Standard charged, stand for 10 days at 33±3℃ and 80±5% of relative humidity No leakage
External Short Circuit: After standard charge, short-circuit the cell at 20 ℃ ± 5 ℃ until the cell teerature returns to ambient teerature.(cross section of the wire or connector should bemore than 0.75mm2) No fire and no
explosion
Vibration Resistance: Charge of voltage should be under 0.08V/pack, change of iedance should be under20milli-ohm/cell.
Drop Test: △V<0.02V/cell △Ri<5%/cell Charge at 0.1C for 16hrs,and then leave for 24hrs,check battery before / after drop

Height: 50 cm
Thickness of wooden board: 30mm
Direction is not specified
Test for 3 times
IEC Cycle Life Test: ≥500 cycle IEC61951-2(2003)7.4.1.1
4. Ni-Mh battery we have the size of AAA, AA, A, SC,C,D,F.
Capacity from 250mAh to 15000mAh.
SizeModel No.Nominal Voltage (V)Nominal Capacity (mAh)Dimension with Tube
Diameter (mm)Height(mm)
AH-2/3A9001.29001729.2
H-2/3A1100P1.211001729.2
H-2/3A1200P1.212001729.2
H-2/3A1250P1.212501729.2
H-4/5A18001.218001743
H-4/5A21501.221501743
H-4/3A37001.237001767
H-A18001.218001750
H-A21001.221001750
H-A22001.222001750
H-A23001.223001750
H-A25001.223001750

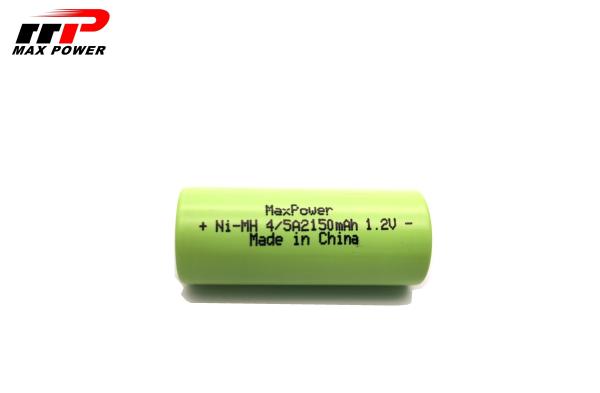

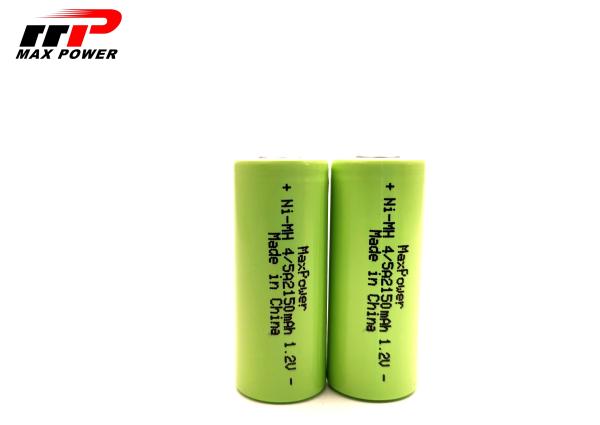

5.More pic of the 4/5A2150mah
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification

6. Q&a;A
Q: How to give the quality garantee?
A: We give 1y garantee for our battery packs. As the faulty allowance is less than 0.2%. For more we will give
replacement in the next order.
Q: How long will be the delivery date?
A: Normally one month if have cell stock,15 days will be ready.
Q: How to start the cooperation?
A: You can take our sale and confirm the quality and packing details. Then start to order from small order.
7. Wish 13years experience in battery field can help you out from your project.
4/5A2150mAh 1.2V NIMH Rechargeable Batteries High Capacity With UL CE KC Certification
