4/3A3800mAh 1.2V Rechargeable Nimh Battery For Industrial Pack Vocuum Cleaner with BIS,UL,EN61951
4/3A3800mAh 1.2V Rechargeable Nimh Battery For Industrial Pack Vocuum Cleaner with BIS,UL,EN61951
4/3A3800mAh 1.2V Rechargeable Nimh Battery For Industrial Pack Vocuum Cleaner with BIS,UL,EN61951
4/3A3800mAh 1.2V Rechargeable Nimh Battery For Industrial Pack Vocuum Cleaner with BIS,UL,EN61951
4/3A3800mAh 1.2V Rechargeable Nimh Battery For Industrial Pack Vocuum Cleaner with BIS,UL,EN61951
4/3A3800mAh 1.2V Rechargeable Nimh Battery For Industrial Pack Vocuum Cleaner with BIS,UL,EN61951
Specifications
Brand Name :
/OEM
Model Number :
4/3A3800
Certification :
BIS UL IEC EN61951
Place of Origin :
CHINA
MOQ :
3000pks
Price :
negociate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300000pcs/day
Delivery Time :
3-30days according the qty
Packaging Details :
40pcs/box, 480pcs/ctn
Material :
NI-MH
SIZE :
4/3A
Capacity :
3800mAh
Voltage :
1.2V
TOP CAP :
FLAT
Application :
Industrial pack
Description

NIMH 4/3A3800mAh 1.2V battery for industrial pack vocuum cleaner
with BIS UL IEC/EN61951 certification

1. Specification of the battery pack:

Desription Specification
Model 11PH-H-4/3A3800-W-T
Size 4/3A
Dimensions Length (mm) Max 51.5mm
Width(mm) Max 47.5mm
Height(mm) Max137.0mm
Weight(g) Approx.545 g
Nominal Voltage(V) 13.2
Nominal capacity(mAh) 3800
Internal Iedance(Ω) ≤0.5
Discharge Cut-off Voltage 11.0V
Ambient teerature Charge standard 0℃ to 40℃
fast 10℃ to 40℃
Discharge -10℃ to 50℃
Storage ＜1 year -10℃ to 30℃
＜3 months -10℃ to 40℃
The relative humidity should keep with in 65±20%


2. Safety test

Test item Condition Specification
1. Charge Standard Charge at 0.1C for 16 hours
Fast Charge at 0.5C to -△V=55mV
2. Discharge At 0.2C to 11.0V
3. Discharge cut-off voltage 11.0V
4.Capacity Minimum Standard charge/discharge 3700
(mAh) Typical Standard charge/discharge 3800
5. Internal resistance After fully charge,rest 1 hour, measured at 1000Hz ≤0.5Ω
6. Self-Discharge The charged battery is stored for 28days at 20±5℃. And the discharge time is measured at standard discharge ≥180minites
7. High teerature test Store at 40℃,50℃,60℃ for 2 hours then charge/discharge No leakage
8. Low teerature test Store at 0℃ for 2 hours then charge/discharge No leakage
9. Short circuit test Short circuit after fully charge No explode
10. Drop test Free fall on the concerte from 1 meters after fully charged No leakage
No short-circuit
11.Cycle life Charge Rest Discharge Capacity retention
1 0.1C for 16h 0 0.25C for 2h20min ≥60% after 500cycles
2~48 0.25C for 3h10min 0 0.25C for 2h20min
49 0.25C for 3h10min 0 0.2C to 11.0V
50 0.1C for 16h 1~4h 0.2C to 11.0V

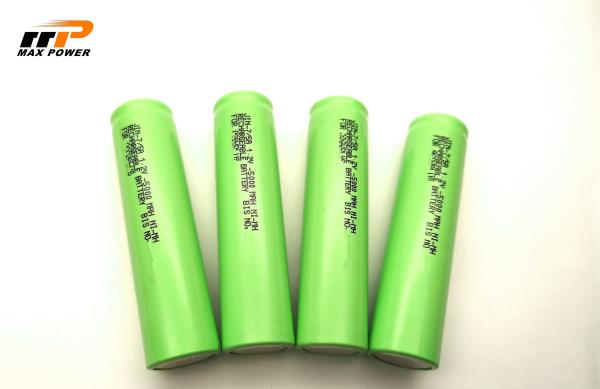

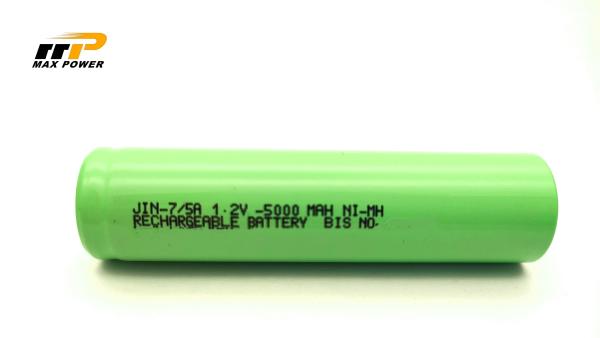

3.Pics of battery pack
4/3A3800mAh 1.2V Rechargeable Nimh Battery For Industrial Pack Vocuum Cleaner with BIS,UL,EN61951
4. Related models of NI-MH battery
Size Model No. Nominal Voltage (V) Nominal Capacity (mAh) Dimension with Tube Weight Approx.(g)
Diameter (mm) Height(mm)
AAAA H-AAAA350 1.2 350 8.5 40.5 9
BBB H-1/3BBB200B 1.2 200 11.0 15.5 6
AAA H-2/3AAA300 1.2 300 10.5 29.0 8.5
H-2/3AAA350 1.2 350 10.5 29.0 9
H-AAA650A 1.2 650 10.5 44.5 12
H-AAA700A 1.2 700 10.5 44.5 12.5
H-AAA900 1.2 900 10.5 44.5 14
H-AAA1000 1.2 1000 10.5 44.5 16
AA H-2/3AA600 1.2 600 14.5 29.0 13
H-2/3AA700 1.2 700 14.5 29.0 14
H-7/5AA1800 1.2 1800 14.5 67.0 28
H-AA300A 1.2 300 14.5 50.5 16
H-AA400A 1.2 400 14.5 50.5 17
H-AA800A/B 1.2 800 14.5 50.5 21
H-AA2000A 1.2 2000 14.5 50.5 30
H-AA2100A 1.2 2100 14.5 50.5 29.5
H-AA2500A 1.2 2500 14.5 50.5 31.6
H-AA2700A 1.2 2700 14.5 50.5 31.6
A H-2/3A1100P 1.2 1000-1100 14.5 50.5 21
H-4/5A1800 1.2 1800 17.0 43.0 33
H-4/3A3800 1.2 3800 17.0 67.0 55
H-A2300 1.2 2300 17.0 50.0 36
C H-C1500A 1.2 1500 25.8 51.0 42
H-C2700A 1.2 2700 25.8 51.0 67
H-C3300A 1.2 3300 25.8 51.0 75
H-C4500A 1.2 4500 25.8 51.0 85
D H-D1500 1.2 1500 33.0 61.8 78
H-D2700A 1.2 2700 33.0 61.8 80
H-D7000A/B 1.2 7000 33.0 61.8 145
H-D8000A/B 1.2 8000 33.0 61.5 155
H-D9000A/B 1.2 9000 33.0 61.5 160
8.4V H-8.4V 120 8.4 120 17.5(T)*26.5(W)*48.5(H) 36
H-8.4V 200 8.4 200 17.5(T)*26.5(W)*48.5(H) 44
H-8.4V 250(5A) 8.4 250 17.5(T)*26.5(W)*48.5(H) 46
SC H-SC2000P 1.2 2000 23.0 43.0 55
H-SC3100P 1.2 3100 23.0 43.0 61
H-SC3300P 1.2 3300 23.0 43.0 62
H-SC3500P 1.2 3500 23.0 43.0 64


5. Q&a;A
Q: How to give the quality garantee?
A: We give 6m-1y garantee for our battery packs. As the faulty allowance is less than 0.2%. For more we will give
replacement in the next order.
Q: How long will be the delivery date?
A: Normally one month if have cell stock 15-20days will be ready.
Q: How to start the cooperation?
A: You can take our sale and confirm the quality and packing details. Then start to order from small order.
5. Wish 13years experience in battery area can help you out from your project.
