1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical
1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical
1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical
1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical
Specifications
Brand Name :
Maxpower/OEM
Model Number :
103450
Certification :
CB, CE, KC, ROHS, UN38.3
Place of Origin :
Made in China
MOQ :
3000pcs
Price :
negociate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000pcs/day
Delivery Time :
10-30days according stock situation
Packaging Details :
12pcs/blister palet, 20bllister pallet/ctn
Material :
lithium polymer,pure cobalt
Voltage :
3.7V
Capacity :
1950mAh
contant discharge current :
5C
Dimensions(T.W.H.) :
Thickness: 4.2 mm max, Width: 20 mm max, Length: 25 mm max
inner resistance :
cell ≤58mΩ pack ≤220mΩ
Description
653050 1250mah 3.7V Lithium Ion Polymer Battery for Medical use coly With UL CE KC IEC62133 ,UN38.3


1. Battery pack info and draw.

1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical

No. Item Type Qty
1 Cell 653050 1
2 PCM DW01+8205*2+NTC 1
3 CONNECTOR JST XHP 3P opposite
4 UL1571 22AWG black ,yellow, red 1set


2. battert pack specification

  • Typical capacity: 1250 mAh
  • Min. capacity: 1250 mAh
  • Iedance : ≤160mΩ
  • Maximum Continuous Discharging Current: 4A
  • Over Current: 4-8A
  • Operating Consution Current: 7uA (Max)
  • NTC Resistor: 7~13KΩ
  • ESD Test: ±4KV

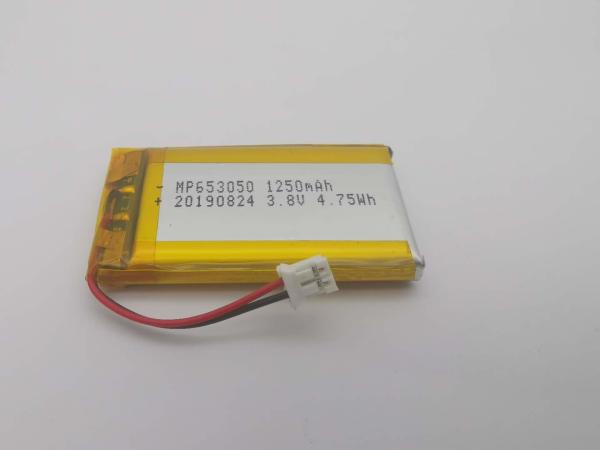

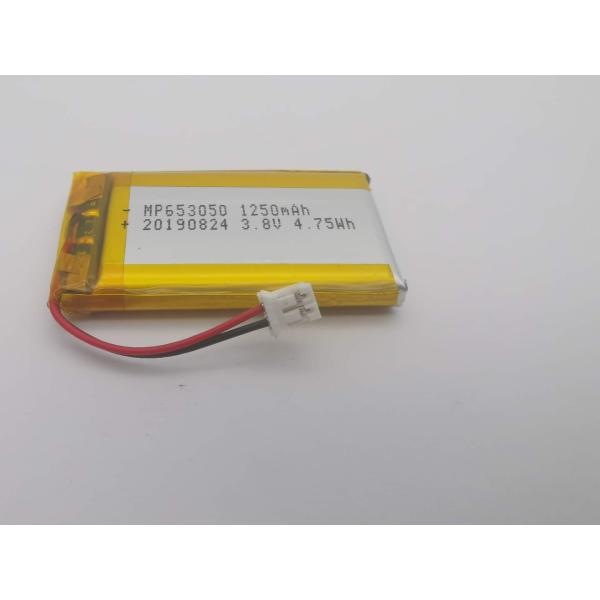

3. More PIC of 653050 battery.

1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical



The packing of the polymer battery:
1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical


Waranty for customer:

We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.



1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical
