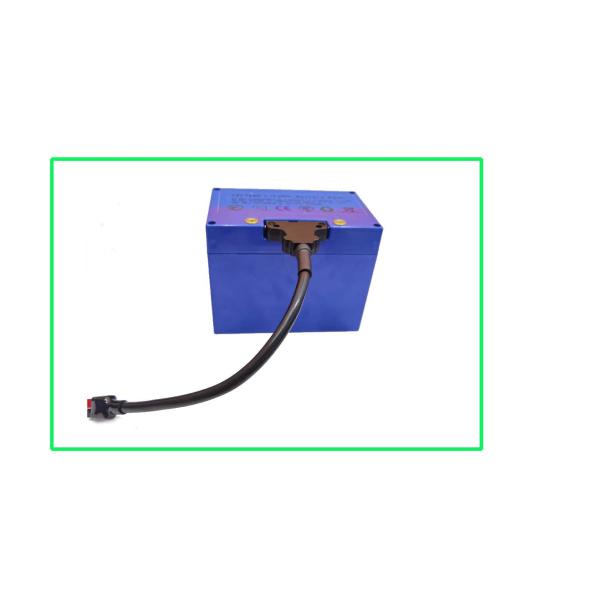

12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3
12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3
12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3
12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3
Specifications
Brand Name :
MaxPower
Model Number :
12V 24.5Ah
Certification :
UN38.3 MSDS CB CE IEC
Place of Origin :
China
MOQ :
one pack
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,paypal,xtransfer
Supply Ability :
10000PCS PER Day
Delivery Time :
8-10 working days
Packaging Details :
UN carton, customized package ,export carton
Battery Type :
LiFePo4 Battery Pack
Voltage :
12.8V
Capacity :
24.5Ah
Dimension :
168*128*102mm
Weight :
3KG
life cycle :
More than 2000 cycles
Description

Lithium Golf trolley battery pack 12V 16Ah 22Ah 24.5Ah long cycle life

Original lithium battery long life desigh and deep cycle more than 2000 cycles

T-bar connector and Golf trolley battery bag included to be full set package

Customized design with build in BMS and standard battery house and case

Stable discharge and charge function with over 2 years quality guarantee

OQC report and full age testing data offered before battery delivery

MSDS UN38.3 and DG license support air sea and courier service

Golf Cart LiFePo4 battery pack Golf trolley battery pack 12V 22Ah 24.5Ah Specification :

12V 22Ah golf trolley LiFePo4 Battery Long life golf lithium battery Specification
LiFePo4 Battery Manufacture MaxPower Industrial Co.,Ltd
H.S. Code 850600090
Normal Capacity 22Ah 24.5AH
Normal Voltage 12.8V
Energy 281.6wh 313.6wh
Dimension (168±1)mm *(128±1)mm *(103±1)mm
Internal Resistance Less than 40mOhms
Charging Voltage 14.6V
Charging Method CC-CV(Constant voltage with limited current )
Weight 2KG (12.8V 22Ah ) 3KG(12.8V 24.5AH)
Charge current less than 5A
Continuous discharge Current 16A
Discharge Cut Off Voltage 10.0V
passive protection function over charge Protection ,over discharge protection ,temperature and balance function
Operation Temperature -20-60 degree
Quality Guarantee Two years
Application Golf Trolley ,golf car ,Storage system ,RV, ESS,Golf Cart Battery,
Solar System battery , EV ,EBIKE UPS,RV Camper ,marine ,overland/Van,golf cart ,lighting
Sample lead time 6-8 working days
Mass Production lead time 10-15 working days

12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3

12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3

Golf trolley Lithium battery charge and discharge curve :

12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3

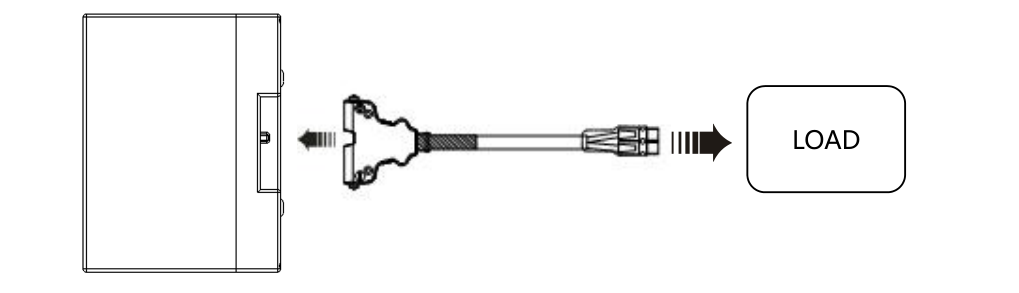

The battery pack Discharge terminal is T-anderson connectors or T aviation plug ect.

12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3

More customized battery pack and Lithium battery models, contact MaxPower Lucy directly for data sheet

and Battery solution.
