BMS RS232 Lithium LiFePO4 Battery 12V 20Ah Capacity For Solar System SOC XT60
BMS RS232 Lithium LiFePO4 Battery 12V 20Ah Capacity For Solar System SOC XT60
BMS RS232 Lithium LiFePO4 Battery 12V 20Ah Capacity For Solar System SOC XT60
BMS RS232 Lithium LiFePO4 Battery 12V 20Ah Capacity For Solar System SOC XT60
Specifications
Brand Name :
Energy
Model Number :
12V 20Ah
Certification :
IEC CB CE MSDS UN38.3
Place of Origin :
China
MOQ :
50 PKS
Price :
Negotiation
Delivery Time :
5-8 working days
Packaging Details :
Export Carton
Material :
LiFePo4 Battery
Voltage :
12V
Capacity :
20Ah
Cycle Life :
2000 Cycles
Weight :
2KG
Guarantee :
2 years
Description

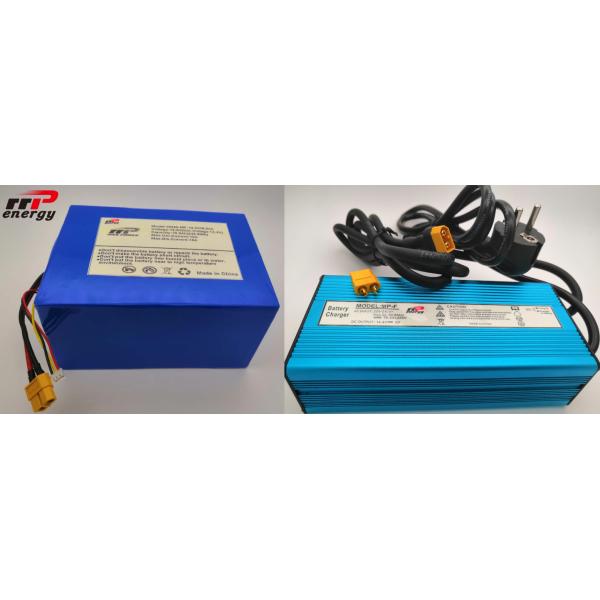

12V 20Ah Lithium LiFePo4 Battery BMS RS232 for Solar system XT60 Plug

Lithium LiFePo4 Battery Pack 12V 20Ah with Smart BMS RS232 communication system

designed for Solar System with microcontroller

1. LiFePo4 cylindrical cell 32700 3.2V 3P4S coact designed

2. Long Cycle life with over 2000 cycles and 2 years quality guarantee

3. Over charge and discharge protection with cell balance function

4. Communication Serial port protocal RS232 in english version be available

5. 14.4V 6.5A LiFePo4 charger be matched with 12V 20Ah battery pack with

3-4 hours fully charged

6. UN38.3 MSDS IEC62133 CB certificate to support overseas market

Air delivery , Sea delivery and courier door to door service keep safety delivery

Specification for the 12V 20Ah Lithium LiFePo4 battery pack with XT60 plug

Index.

 12V 20Ah battery Specification info

Parameter
1 Charging Method CC-CV
2 Charging Voltage 14.4±0.05V
3 Over Charging Protect 3.650±0.025V
4 Standard Charging Current 3.9A (0.2C)
5 Max. Charging Current 15A
6 Cut-off Charging Current 0.39A (0.02C)
7 Standard Discharging Current 3.9A(0.2C)
8 Max. Discharging Current 15A
9 Max Peak Discharging Current 30A(1S)
10 Discharging cut-off Voltage 10V
11 Over Discharging Protect 2.5±0.08V
12 Over Charge Current 40±5A
13 Over Discharge Current 40±5A
14 Cell balancing voltage 3.60±0.05V
15 Cell balancing current 36±5mA
16 Internal Resistance <180mOhm
17 Standard Charge Teerature 0~45℃
18 Standard Discharge Teerature -20~60℃
19 Storage Humidity 65%RH not condensed

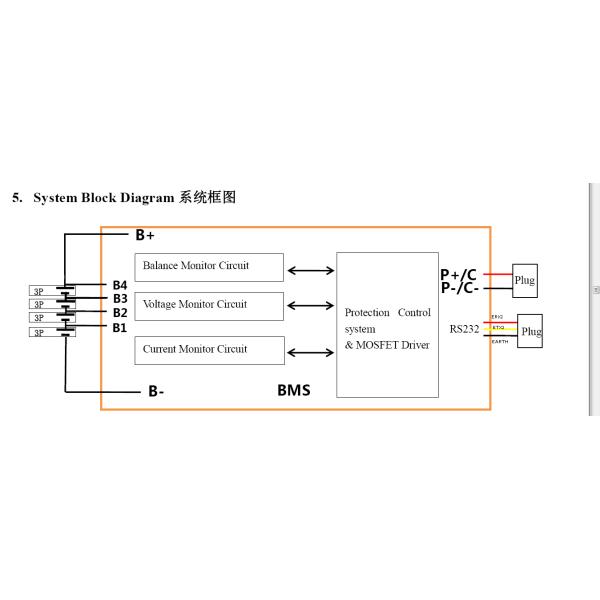

LiFePO4 12V 20Ah System Block Diagram
