11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL
11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL
11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL
11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL
11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL
11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL
Specifications
Brand Name :
Maxpower/OEM
Model Number :
804764 3100mAh
Certification :
CB, CE, KC, ROHS,UN38.3
Place of Origin :
Made in China
MOQ :
3000pcs
Price :
negociate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000pcs/day
Delivery Time :
10-30days according stock situation
Packaging Details :
8pcs/blister palet, 20bllister pallet/ctn
Material :
lithium polymer,pure cobalt
SIZE :
804764
Voltage :
3.7V
Watt :
11.47
Description

804764 3100mah 3.7V lithium polymer battery with connector used for electrical device

1. Products info.

NO Items Units: mm
1 Thickness 8
2 Width 47.5
3 Height 64.5
4 L1 18±2
5 L2 22±2
6 L3 3±0.1

11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL

2. Cell specification and safty performance.

No. Items Specifications Remark
1 Nominal Capacity 3100mAh 0.2C standard charge and discharge
2 Minimum Capacity 3100mAh 0.2C standard charge and discharge
3 Nominal Voltage 3.7V Mean Operation Voltage
4 Delivery voltage 3.8~4.05V Within 10 days from Factory
5 Charge Voltage 4.2V±0.03V By standard charge method
6 Standard charging method 0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C Time 6.5h around
7 Charge current 0.2C 620mA Standard charge, charge time:6.5h(Ref)
1C 3100mA Rapid Charge, charge time:2.5h(Ref)
8 Standard discharging method 0.2C constant current discharge to 3.0V 　
9 Cell Internal Impedance ≤40mΩ Internal resistance measured at AC 1KHZ after 50% charge
10 Max charge current 1.0C For continuous charging mod
11 Peak discharge current 2.0C Max Continuous discharge current 1C

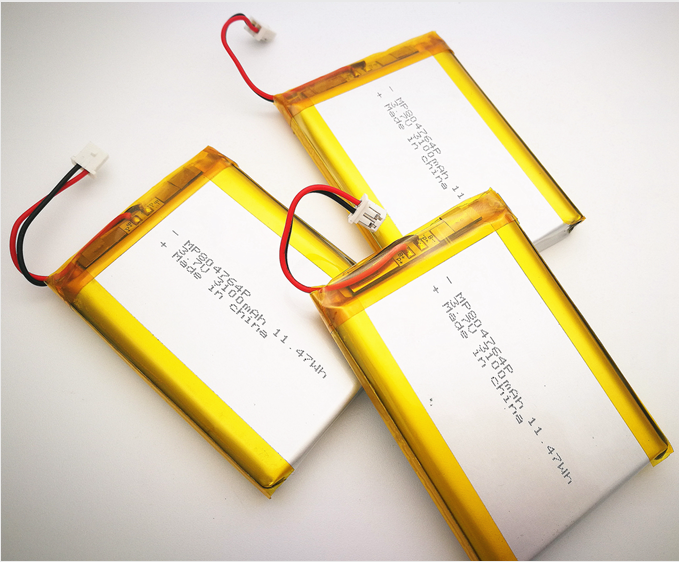

3. PIC of battery.


11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL

11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL

11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL

11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL

The application of the polymer battery.

11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL

Part of factory view:

11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL

Waranty:

We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement.

Q&A:

1. Q:How to start the cooperate?

A: Lets start with our sample orders. In 3-5days will be ready the samples, then you test.We make the standard according

the data sheet which we give.Once you confirm the quality, we can talk for further.

2. Q: How long to make the cargos?

A: Need 30day around if we dont have the stock of that model. Coz need strict test and high temperature,high voltage life ageing as well in every single pc,

3. Q: What will be the packing?

A: We are using blister pallet packing in each battery.

For more please contact me freely, wish my 12years in battery area experience can help you in your project.

11.47 Watt Lithium Ion Polymer Battery Pack 804764 3100mah 3.7V With Connector with KC CB UL
