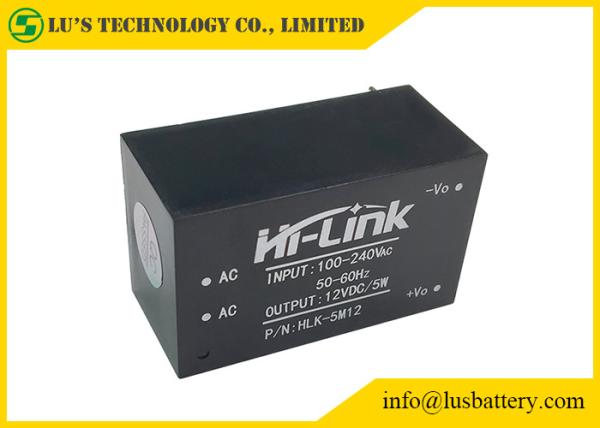

PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules
PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules
PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules
PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules
PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules
PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules
Specifications
Brand Name :
HLK or OEM
Model Number :
5M12
Place of Origin :
China
MOQ :
1 pcs
Price :
bargain
Payment Terms :
L/C, T/T
Supply Ability :
50000 pcs per month
Delivery Time :
3-5 workingdays
Packaging Details :
PP bag+ Carton
Product Name :
AC DC switch power supply
Material :
PCB Board
Protection :
SCP OVP OTP OCP
Output Current :
450mA, 0A-1A
Output Frequency :
50-60HZ
Output Voltage :
12V DC / 5W
Description
Product Description

5W Ultra small series power module

5M03/5M05/5M09/5M12/5M24

Model NO. Size (mm) Weight (g) Output Power (w) Output Voltage (v) Output Current (mA) Efficiency %(TYP)
HLK-5M03 38*23*18 32g 5W 3.3 1500 72
HLK-5M05 5 1000
HLK-5M09 9 560
HLK-5M12 12 450
HLK-5M24 24 208

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply .

It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation.
It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
Input features

PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules

Output features
Items Technical Parameters Units Notes
No-load rated output voltage 12.0±0.1 Vdc 　
Full-load tated output voltage 12.0±0.2 Vdc 　
Short time maximum output current ≥540 mA 　
Long time maximum output current 450 mA 　
Voltage regulation ±0.2 % 　
Load regulation ±0.5 % 　
Input low voltage efficiency Vin=115Vac, Output full load≥69 % 　
Input high voltage efficiency 3Vin=230Vac, Output full load≥70 % 　
Output ripple and noise (mVp-p) ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test mV 　
Switching on/off overshoot amplitude (Rated input voltage, output plus 10% load)≤5 %Vo 　
Output over-current protection Output maximum load 110-150% A 　
Output short circuit protection Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit 　 No-damage to the whole device
Dimensions

PCB Board Hilink 5M12 12v 3a 5W 450mA Power Supply Modules

Product features


1. Ultra-thin, ultra-small, smallest volume;


2. Global universal input voltage(90~265Vac)


3. Low power consumption, green environmental protection, no-load loss<0.1W


4. Low ripple, low noise


5. High output short circuit and over-current protection and self recovery


6. High efficiency, high power density


7. Input and output isolation voltage 3000Vac


8. 100% full load aging and testing


9. High reliability, long life design, continuous working time is greater than 100,000 hours;


10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;


11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and
dust to meet IP65 standards


12. Economic solutions, cost-effective


13. Work without external circuit


14. 1 year quality guarantee period

Hilink intelligent module:

Type Description Inputvoltage Efficiency
HLK-2M03 Powermodule2W3.3V 90-245Vac 69%
HLK-2M05 Powermodule2W5V 90-245Vac 69%
HLK-2M09 Powermodule2W9V 90-245Vac 69%
HLK-2M12 Powermodule2W12V 90-245Vac 69%
HLK-2M15 Powermodule2W15V 90-245Vac 69%
HLK-2M24 Powermodule2W24V 90-245Vac 69%
HLK-PM01 Powermodule3W5V 90-265Vac 72%
HLK-PM03 Powermodule3W3.3V 90-265Vac 72%
HLK-PM09 Powermodule3W9V 90-265Vac 75%
HLK-PM12 Powermodule3W12V 90-265Vac 75%
HLK-PM15 Powermodule3W15V 90-265Vac 75%
HLK-PM24 Powermodule3W24V 90-265Vac 75%
HLK-5M03 Powermodule5W3.3V 90-265Vac 72%
HLK-5M05 Powermodule5W5V 90-265Vac 72%
HLK5M09 Powermodule5W9V 90-265Vac 75%
HLK-5M12 Powermodule5W12V 90-265Vac 75%
HLK-5M15 Powermodule5W15V 90-265Vac 75%
HLK-5M24 Powermodule5W24V 90-265Vac 75%
HLK-10M03 Powermodule10W3.3V 90-265Vac 72%
HLK-10M05 Powermodule10W5V 90-265Vac 72%
HLK-10M09 Powermodule10W9V 90-265Vac 78%
HLK-10M12 Powermodule10W12V 90-265Vac 78%
HLK-10M15 Powermodule10W15V 90-265Vac 78%
HLK-10M24 Powermodule10W24V 90-265Vac 78%
HLK-20M05 Powermodule20W5V 90-265Vac 80%
HLK-20M09 Powermodule20W9V 90-265Vac 80%
HLK-20M12 Powermodule20W12V 90-265Vac 80%
HLK-20M15 Powermodule20W15V 90-265Vac 80%
HLK-20M24 Powermodule20W24V 90-265Vac 84%
HLK-30M09 Powermodule30W9V 90-265Vac 90%
HLK-30M12 Powermodule30W12V 90-265Vac 90%
HLK-30M15 Powermodule30W15V 90-265Vac 90%
HLK-30M24 Powermodule30W24V 90-265Vac 90%
HLK-40M09 Powermodule40W9V 90-265Vac 90%
HLK-40M12 Powermodule40W12V 90-265Vac 90%
HLK-40M15 Powermodule40W15V 90-265Vac 90%
HLK-40M24 Powermodule40W24V 90-265Vac 90%
