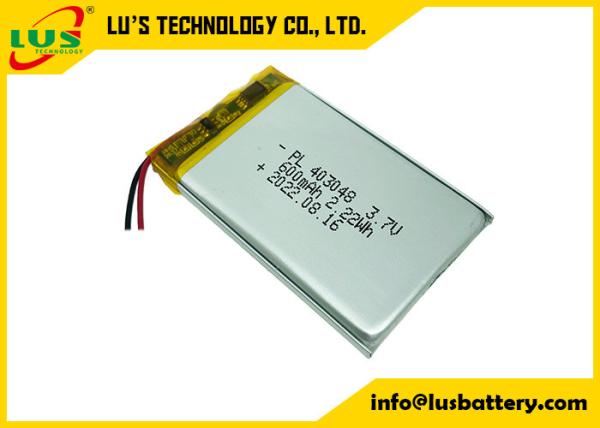

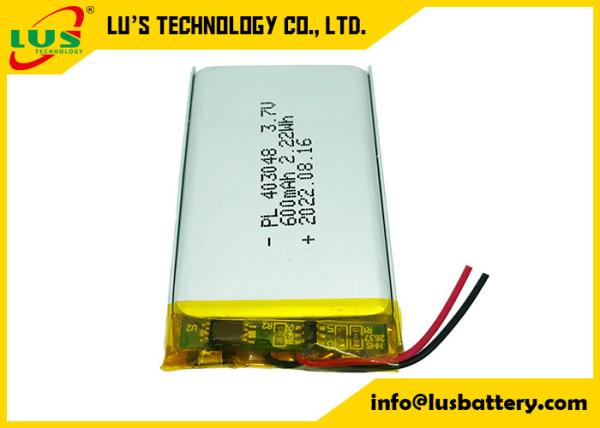

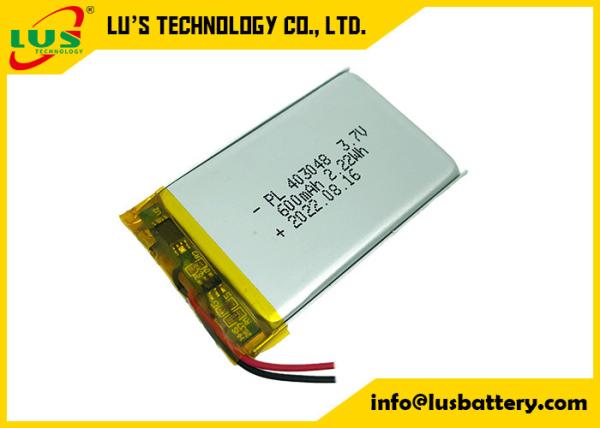

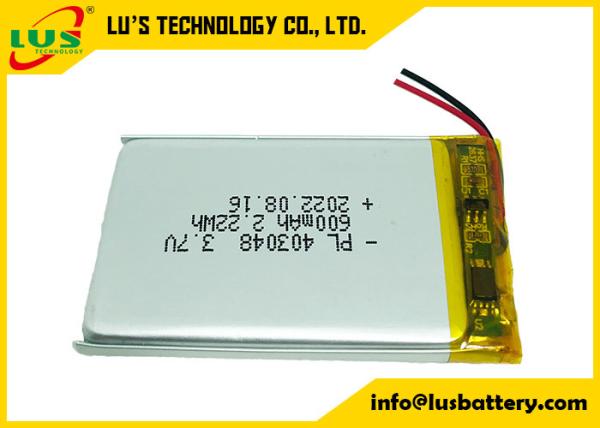

LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device
Specifications
Brand Name :
OEM
Model Number :
Li ion PL403048
Certification :
Meet UL
Place of Origin :
China
MOQ :
10 pcs
Price :
Bargain
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000000 pcs per month
Delivery Time :
7-10 days
Packaging Details :
PP and cartons
Protect control :
Yes, it can be customized
Terminals :
Pins/ wires / connector etc
Shape :
Pouch rechargeable cell
Package :
PP+Cartons
Pringting :
Welcome customized
Small order :
Acceptable
Description

Lp403048 3.7v Flexible Li-polymer Battery 600mah with PCBA protection board for portable device

About Li-Polymer battery

1) Environmental friendly

2) High density of energy

3) Light weight

4) Low self-discharge

5) Low internal resistance

6) Long cycle life, chargeable up to 500 or 1000 times

7) No memory effect

8) Doesn’t contain Mercury, No fire, No explosion, No leakage

9) Very good and quick charge, capability can be charged to 90% within 10 min.

10) Thickness can be adjusted while width and height keep the same

Major Application:

1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products

2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.

Descriptions
Battery part number LP403048 name by the size
Voltage 3.7V Normal Voltage
Capacity 600mah 0.2C discharge
Dimension 4*30*48mm Max, without PCM
End voltage 2.75V Load Voltage when discharge ended
Charge current 0.25A to 0.5A CC charge to 4.2 V, then CV charge till
current declines to less than 0.01C
Charge temperature 0 to 45
Discharge current 0.25A to 0.5A
Discharge temperature -20 to +60
Weigth 10.5g
Terminals Pins, wires, connector etc
Logo Customized
OEM and ODM Welcomed
LIpo Application

Communications equipment: Interphone, PHS phone, Bluetooth earphones


Audio-visual equipment: Digital cameras, Camcorders, Portable DVD, Portable television


Portable Devices: GPS, PMP, PSP, PDA, E-book, Shaver, Portable medical device etc.


Illuminate Devices: Miner lamp, Search light.


Others: RC models, Toys

LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device

Company Info

Lu’s Technology Co., Limited is a Hi-Tech enterprise in China, Which is specialized in the research, design, production and sale of primary lithium battery and rechargeable batteries. Depending on the creative R&D center, the production base and the sale, service net, the company are offering its customers excellent products and services.

More product from LUS battery:

LP403048 3.7V Flexible Li Polymer Battery 600mah PCBA Protection Board For Portable Device

3.7V lithium polymer battery list:

Model Capacity Model Capacity
102050 1000 602248 650
102540 1100 603030 550
103030 900 603040 750
103035 1000 603048 970
103040 1200 603443 850
103048 1500 603450 1200
103443 1500 604050 1500
103450 1800 605080 3000
103450 2000 606090 4000
103665 3000 626090 5000
104050 2500 654060 2000
123555 2500 702831 630
124065 4000 703035 750
303450 500 703040 800
307095 2500 703048 1100
317090 2200 703450 1300
327090 2000 703450 1350
327090 2200 704268 2200
337093 2500 752040 600
357095 2800 755060 3000
383450 750 755590 5000
402030 180/200 802025 350
402247 450 802035 500
454854 1500 802048 800
454261 1500 802530 550/600
493964 1500 802535 750
502030 200/250 802540 850
502535 420 803030 740
503035 580 803035 800
503040 600 803040 1000
503048 730 803048 1200
503048 750 803160 1800
503759 1200 803440 1200
505050 1500 803450 1500
505060 2000 804050 2000
505068 2000 804558 2500
505573 2000 805080 4000
505573 2500 902030 500
523450 1000 902535 800
602030 300 902530 700
602530 450 903035 1000
602535 550 903048 1500
602040 450 903450 1800
974058 3000 903659 2500
