SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery
Specifications
Brand Name :
OEM
Model Number :
ER17505 3.6v 3400mah
Place of Origin :
Guangdong,China
MOQ :
10pcs
Price :
Bargain
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs/Month
Delivery Time :
5-8 working days
Packaging Details :
cartons
Certification :
UL
Operating Temperature Range :
-55～85℃
Weight :
Approx 25 g
Storage temperature (recommended) :
+30C
Discharge characteristics :
23±2℃
LOGO :
Can be customized
Terminals :
Pins, tabs, wires, connector
Description

SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery

3.6V battery ER17505 Technical data:

Name Lithium Thionyl Chloride Battery
Model ER17505
Size A
Nominal capacity (3mA~2V) 3.4 Ah
Rated voltage 3.6 V
Max constant current of discharge 120 mA
Max discharge current(pulse) 200 mA
Weight 25 g
Operating temperature range -55℃~+85℃
Storage temperature (recommended) +30℃

ER17505 lithium battery Drawing:

SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery


Application:
SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery

3.6V Primary Battery Product list:

Lithium Thionyl Chloride cells
Model voltage (v) capacity(mAh) demension(mm) Nominal Discharge Current(mA) weight (g)
Diameter Height
　
ER10250 3.6 400 10.5 25 0.5 5
ER10280 3.6 450 10.5 28 0.5 6
ER10450 3.6 700 10.5 45 1 8
ER14250 3.6 1200 14.5 25.4 1 10
ER14335 3.6 1600 14.5 33.5 1 12
ER14505 3.6 2400 14.5 50.5 2 19
ER17335 3.6 1800 17.5 34 3 18
ER17505 3.6 3200 17.5 50.5 3 26
ER18505 3.6 3600 18.7 50.5 3 28
ER26500 3.6 9000 26.2 50 4 52
ER34320 3.6 8000 34.2 32.5 4 58
ER34615 3.6 19000 34.2 61.5 5 100
ER341245 3.6 36000 34.2 124.5 10 195
ER14250M 3.6 800 14.5 25.4 2 10
ER14335M 3.6 1300 14.5 33.5 3 13
ER14505M 3.6 2200 14.5 50.5 4 19
ER17505M 3.6 2800 17.5 50.5 5 27
ER18505M 3.6 3200 18.7 50.5 5 28
ER26500M 3.6 6500 26.2 50 10 52
ER34615M 3.6 14000 34.2 61.5 15 100
ER13150S 3.6 300 13.2 15 0.5 6
ER14250S 3.6 750 14.5 25.2 1 10
ER14505S 3.6 1600 14.5 50.5 2 20
ER26500S 3.6 4100 26.2 50 4 60
ER34615S 3.6 10500 34.2 61.5 5 106
ER2450 3.6 500 24.5 5.9 1 9
ER32100 3.6 1700 32.9 10 1 25
ER3265 3.6 1000 32.9 6.5 1 17
ER9V 10.8 1200 17*26.3*48.5 1 30
EF651615 3.6 400 16.8*15.8*6.8 1 5
EF651625 3.6 750 16.8*25.8*6.8 1 8
Remark: 1)"M"-Power Type; 2)"S"-High Temperature;

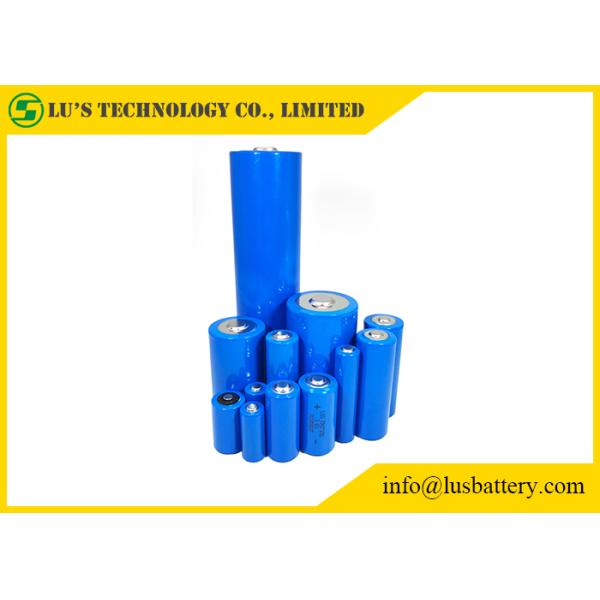

Picture:

SMT PCB 3400mah Lithium Thionyl Chloride Battery ER17505 3.6V Bobbin Structure 3.4Ah Non-rechargeable Battery

Li-Socl2 Feature

1) With high-operating voltage and stable

2) Performance independent from cell orientation

3) Superior shelf lifespan and reliability: over 10 years at room temperature and self-discharge rate <1% of nominal capacity per year

4) Bobbin structure energy type and best suited for low and discharge current

5) May require depassivation before medium currents

6) Typical values relative to cells stored for one year or less at 30°C

7) Adding the spot, welding wire, welding plug, label are OK
