3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries
3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries
3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries
3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries
Specifications
Model Number :
UNM384860
Certification :
MSDS , RoHs
Place of Origin :
Guangdong, China
MOQ :
1000PCS
Price :
1.45-3USD/PCS
Payment Terms :
T/T , Western Union , MoneyGram , Paypal, L/C
Supply Ability :
4500.00PCS/Day
Delivery Time :
7-30 days
Packaging Details :
Plastic trays, Carton
Type :
Custom Lithium Battery
Battery Model Name :
UNM384860
Voltage :
3.7V
Capacity :
1150mAh
Battery Pack Dimension(Max.) :
4.0*49*63mm
Warranty :
1 Year
Brand Name :
UNEMETECH
Description

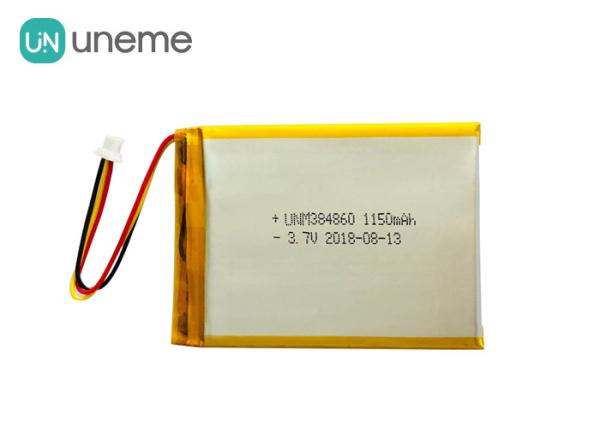

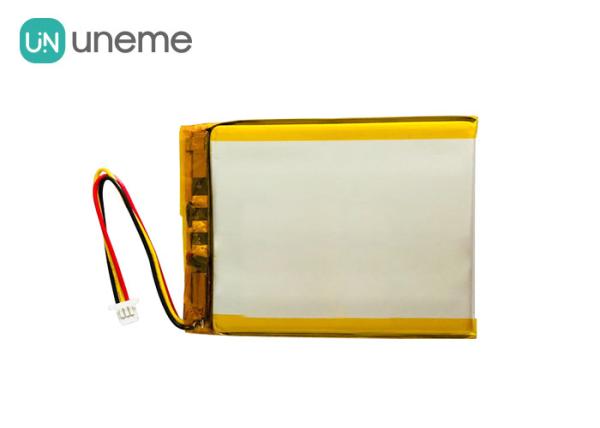

Custom Rechargeable Polymer Lithium Battery 3.7V 1150mAh 384860 for Bank Payment Machine

1.Cell Type and Model

1.1 Cell Type : Lithium Ion Polymer Battery

1.2 Cell Mode: UNM384860

1.3 Cell Outer Dimension: 3.6±0.2 mm (T)×48.0±0.5 mm (W)×60.0±0.5mm (L

2.Cell Performance

Item Specification Remark
2.1 Typical Capacity 1150mAh 0.2C discharge
Minimum Capacity 1100mAh 0.2C discharge
2.2 Nominal Voltage 3.7V
2.3 End Voltage 2.75V

2.4 Charging Current (Std.)

 0.2CA(=230mA)

Ambient temperature

0~+45℃

2.5 Charging Current (Max.)

 0.5CA(=575mA)

Ambient temperature

0~+45℃
2.6 Charging Voltage 4.2±0.03V
2.7 Charging Time (Std.) 6~7.0 hours

2.8 Charging Time (Max.)

 2~3.0 hours

2.9 Discharging Current (Std.)

 0.2CA(=230mA)

Ambient temperature

-20~+50℃

2.10 Discharging Current (Max.)

 1.0CA(=1150mA)

Ambient temperature

-20~+50℃
2.11 Cell Internal Resistance <60mΩ

AC Impedance

1KHz
2.12 Weight About 21.0g Battery only

2.13Temperature

range for storage

less than 1 month

 -20~+40℃ Percentage of recoverable capacity 80﹪

less than 3 month

 -10~+35℃

less than 1 year

 -0~+30℃

3.Pack Performance

3.1 Pack Electron Performance

Item Specification Remark※
3.1.1 Typical Capacity 1150mAh 0.2C discharge
Minimum Capacity 1100mAh 0.2C discharge
3.1.2 Nominal Voltage 3.7V
3.1.3 End Voltage 2.4V±0.05V

3.1.4 Charging Current (Std.)

 0.2CA(=230mA)

Ambient temperature

0~+45℃

3.1.5 Charging Current (Max.)

 0.5CA(=575mA)

Ambient temperature

0~+45℃

3.1.6 Charging Voltage

 4.30±0.05V

3.1.7 Charging Time (Std.)

 6~7.0 hours

3.1.8 Charging Time (Max.)

 2.0~3.5 hours

3.1.9 Discharging Current (Std.)

 0.2CA(=230mA)

Ambient temperature

-20~+50℃
3.1.10Suggested Continuous Discharging Current (Max.) 1.0CA(=1150mA)

Ambient temperature

-20~+50℃
3.1.11 Suggested Peak Discharging Current (Max.) 1.5A

<2 seconds

<2s
3.1.11 Soft Pack Internal Resistance <160mΩ

AC Impedance

1KHz
3.1.12 Soft pack Weight About 22.0g

3.1.13Temperature range for storage

 less than 1 month -20~+40℃ Percentage of recoverable capacity 80﹪
less than 3 month -10~+35℃
less than 1 year -0~+30℃

3.2 Battery Pack Dimension(MAX): 4.0 mm (T)×49.0mm (W)×63.0mm (L)

3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries

3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries

About Packaging Details

  • Standard export package with Inner Tray + Carton or Custom-made Package
  • Mode of Transport​

3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries

About Battery Samples

  • For small lithium polymer battery(capacity< 1000mAh), we can provide 5pcs free samples and buyers pay the shipping cost, for the model in our stock, we can send out within 5 days.
  • Making the sample until you are satisfied with it.


About Battery Production Date


7~10 days for stock , 25 ~35 days for customized or modified batteriers

Notice:

1) Check the battery for wear and damage every time you handle it. If in any doubt please dispose off the battery.

2) Always handle the batteries with great care. Do not drop the batteries.
3) Store the batteries on a safe and dry place and make sure that the battery cannot get into contact with metal items.
4) Do not dispose the batteries to temperature above 100 degrees Celsius.
5) Only use chargers designed for charging Lithium-lon batteries.
6) When charging keep the charger away from items that can cause fire.
7) If you are not going to use the battery for a period longer than 6 months, please make sure that it is charged first.
