Rechargeable Bluetooth Lithium Battery 350926 / 3.7V 60mAh LiPo Batteries with UN38.3
Our Advantages
1. We have our own factory with professional LiPo Batteries for over 10 years
2. We have a strong R&D team
3. Offering competitive price, good after-sales service
Bluetooth Lithium Battery 350926 Description
Cell Size : 3.4*9.0*24.0mm
Battery Size : 3.5*9.0*26.0mm (With PCB)
Item | Specification | Remark | |
Typical Capacity | 60mAh | 0.5C charge 0.2C discharge | |
Minimum Capacity | 55mAh | ||
Nominal Voltage | 3.7V | ||
End Voltage | 3.0V | ||
Charging Current (Std.) | 0.2CA=(12mA) | Ambient temperature | |
Charging Current (Max.) | 1.0CA=(60mA) | Ambient temperature | |
Charging Voltage | 4.2V | ||
Charging Time (Std.) | 6~7.0 hours | ||
Charging Time (Max.) | 2.0-3.0hours | ||
Discharging Current (Std.) | 0.2CA=(12mA) | Ambient temperature | |
Continuous Discharging Current (Max.) | 1.0CA=(60mA) | Ambient temperature | |
Cell Internal Resistance(25℃) | ≤600mΩ | AC Impedance 1KHz | |
Battery Weight | About 1g | ||
Temperature range for storage | less than 1 month | -5~+45℃ | 80﹪ of recoverable capacity |
less than 3 month | 0~+35℃ | ||
less than 1 year | 23±5℃ | ||
Open Circuit Voltage | TBD | Measure with voltmeter. |

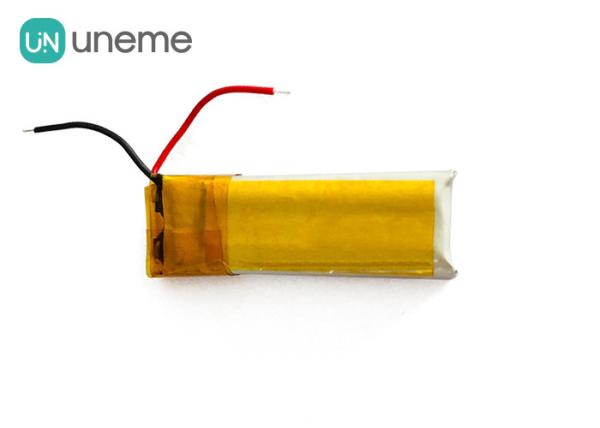

Bluetooth Lithium Battery 350926 Pictures
.
