5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133
Specifications
Model Number :
UNM502025
Certification :
CB(TUV) , IEC62133 , UN38.3 , MSDS , 1.2M Drop Test
Place of Origin :
Guangdong, China
MOQ :
3000PCS
Price :
1-2.5USD/PCS
Payment Terms :
T/T, Western Union, MoneyGram,Paypal, L/C
Supply Ability :
1,500,000,00PCS/Month
Delivery Time :
7-30 days
Packaging Details :
Plastic trays, Carton
Brand Name :
UNEMETECH
Product Name :
Rechargeable Li-polymer Battery
Model :
UNM502025
Nominal Capacity :
210mA
Nominal Voltage :
3.7V
Cycle Life :
500 times
Soft Pack Weight :
5.0g
Cell Size :
5.1*19.5*24mm
Warranty :
1 Year
Description

Custom 502025 3.7V 210mAh Lithium Polymer Battery with CB , IEC62133 and UN38.3 Reports

Our Cells or Batteries Advantages

1) Environmental friendly

2) High density of energy

3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 times

7) No memory effect

8) Doesn’t contain Mercury, No fire, No explosion, No leakage

9) Thickness can be adjusted while width and height keep the same.

502025 Lithium Battery Description

Item Specification Remark
1.1.1 Nominal Capacity 200mAh

0.5C charge

0.2C discharge
1.1.2 Nominal Voltage 3.7V
1.1.3 End Voltage 3.0V

1.1.4 Charging Current (Std.)

 0.2CA=(40mA)

Ambient temperature

0~+45℃

1.1.5 Charging Current (Max.)

 1.0CA=(200mA)

Ambient temperature

0~+45℃

1.1.6 Charging Voltage

 4.2V

1.1.7 Charging Time (Std.)

 6~7.0 hours

1.1.8 Charging Time (Max.)

 2-3.0hours

1.1.9 Discharging Current (Std.)

 0.2CA=(40mA)

Ambient temperature

-20~+60℃

1.1.10 Continuous Discharging Current (Max.)

1.0CA=(200mA)

Ambient temperature

-20~+60℃
1.1.11 Cell Internal Resistance(25℃) ≤180mΩ

AC Impedance

1KHz
1.1.13 Soft pack Weight About 5.0g

1.1.14Temperature range for storage

less than 1 month

 -5~+45℃ Percentage of recoverable capacity 80﹪

less than 3 month

 0~+35℃

less than 1 year

 23±5℃

1.1.15 Open Circuit Voltage

 ≥3.80V

Measure with voltmeter.

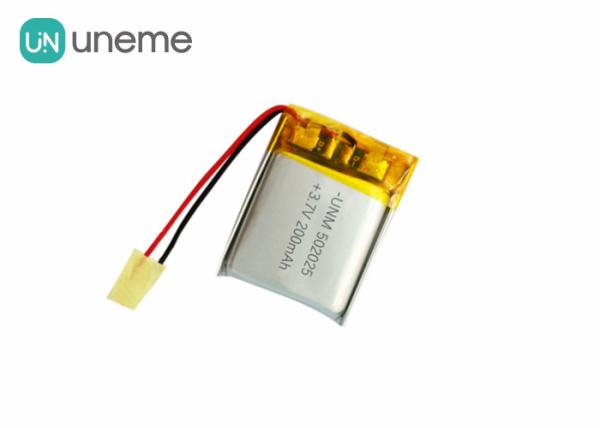

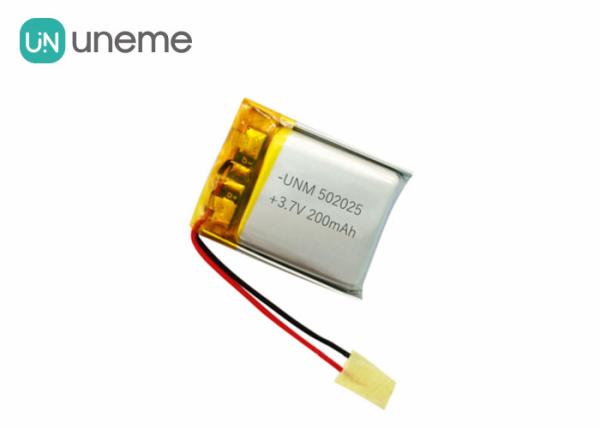

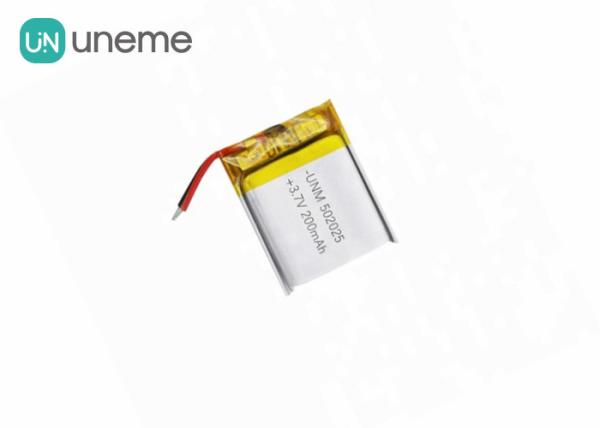

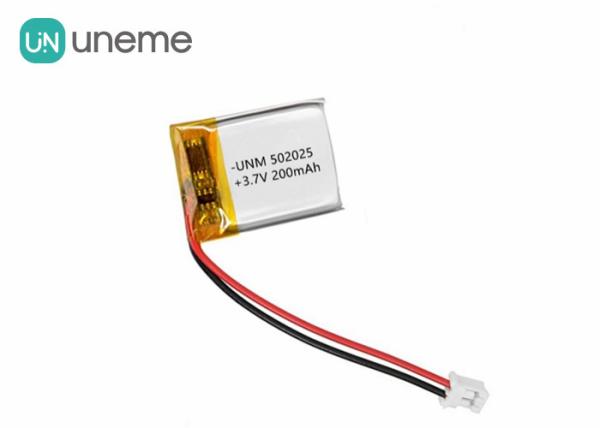

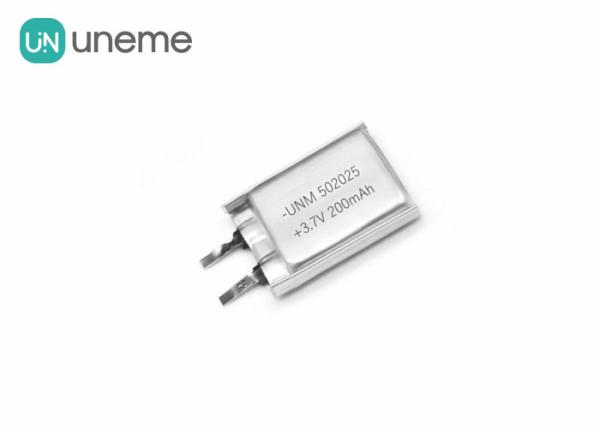

502025 Battery Picture

5.1*19.5*24mm Custom Lithium Polymer Battery 502025 3.7V 210mAh with CB IEC62133

Battery Packaging & Shipping

  • Standard export carton packaging or Custom-made Package
  • Mode of Transport:

By UPS/DHL/FEDEX/TNT (It takes 3-5 days to arrive) ,
By air cargo (It takes about one week to arrive) ,
By sea shipment (It takes about one month to arrive) .

​Delivery Time: 10-13days for cell or battery samples; 30-35 days for mass production .
