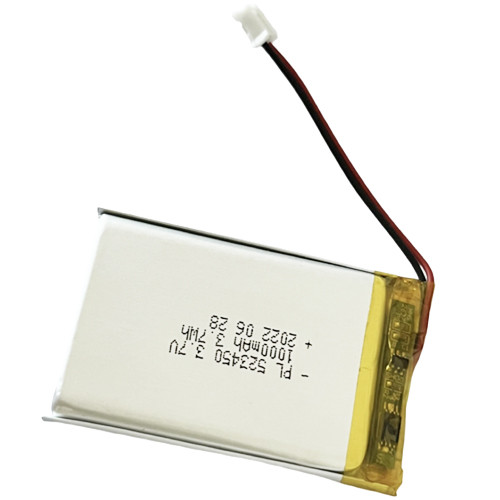

3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
Specifications
Model Number :
523450
Certification :
KC, UL, CB , PSE, CE, FCC, RoHs , MSDS , UN38.3 ...
Place of Origin :
CHINA
MOQ :
3000 PCS
Price :
$1.3～$2.5
Payment Terms :
T/T , Western Union , MoneyGram , Paypal , Alipay
Supply Ability :
10,0000.00PCS/Day
Delivery Time :
7-30 days
Packaging Details :
Plastic trays, Carton
Battery Type :
Rechargeable Lithium Polymer Battery
Nominal Capacity :
1000mAh
Nominal Voltage :
3.7V
Cycle Life :
500 Times (0.2C)
Warranty :
1 Year
Sample :
Support
Application :
Available
Brand Name :
UNEMETECH
Description

3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application

3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application

Battery Type: Rechargeable Lithium Polymer Battery

Configuration: 1S1P

Part Number: 523450

Nominal Capacity: 1000mAh

Nominal Voltage: 3.7V

Weight: appr. 18.0g

Protection Circuit(PCM): Yes

Thermistor(NTC): No(Available)

Lead wires: UL1571-AWG#26, length: TBD

Connector: JST-PHR-2P(Replaceable)

Pack size Max.: 5.3x34x 52.5mm (T*W*L)

Certificates and Reports: UN38.3, MSDS

Product Detail

3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application

Item Description Dimension
T Battery pack Thickness max. Initial 5.3mm
After 300 Cycles 5.8mm
W Battery Pack Width max. 34mm
H Battery Pack Height max. 52.5mm
A Wire Length TBD
Connector JST-PHR-2P(Replaceable)
Battery Pack Impedance ≤180mΩ
Item Parameter
Battery Model 523450
Design Scheme DW01+8205A(Replaceable)
Nominal Voltage 3.7V
Nominal Capacity 1000mAh(0.2C discharge)
Typical Capacity 1050mAh(0.2C discharge)
Min Capacity 1000mAh(0.2C discharge)
Charging Voltage 4.2V

Discharging cut-off Voltage

 2.75V
Standard Charging Current 0.2C
Rapid Charging Current 0.5C
Standard Discharging Current 0.2C
Rapid Charging Current 1.0C

Cell Weight

 Appr: 18.0g

Shipment Voltage

 ≥3.8V

Cell Impedance

 ≤60mΩ

Operating Temperature

Charging: 10°C ~ 45°C

Discharging: -20°C ~60°C

Visual Inspection

 Do not appear such as tear, corrosion, deformation, gas bulge, leakage and other harmful phenomena that damage commercial value.

Product Certificates and Reports

3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application 3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application

Product Applications

3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application

Product Packaging and Delivery

3.7V 1000mAh Rechargeable Lithium Polymer Battery 523450 for Home Application
