Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
Specifications
Model Number :
UNM102540
Certification :
KC , CQC , UL1642 , CB , RoHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
10 Pieces
Price :
USD1.0～2.0/Piece
Payment Terms :
T/T , Western Union , Paypal
Supply Ability :
200,000,00 Pieces Per Day
Delivery Time :
3～30 Days
Packaging Details :
Plastic Trays，Carton
Battery Type :
Li-ion Polymer Battery
Nominal Voltage :
3.7V
Nominal Capacity :
1200mAh
Min Capacity :
1150 mAh
Limited Charge Voltage :
4.2 V
Cut-off Voltage :
2.75 V
Discharging Temperature Range :
-20 ～ 60℃
Charging Temperature Range :
10～ 45℃
Battery Pack Size :
10*25*42
Battery Weight :
About 22g
Brand Name :
UNEMETECH
Description

Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment

Part Number/Battery Model: UNM102540

Nominal Capacity: 1200mAh

Min Capacity: 1150mAh

Nominal Voltage: 3.7V

Battery Pack Dimension: 10*25*42mm(Max.)

PCM: DW01+8205(Others are Available)

Application: Bluetooth bracelet lithium battery, portable wifi devices, portable router, LED flash lighting, medical equipment, bluetooth printer, barcode printer, label printer, thermal printermobile printer, thermal invoice printer, POS terminal...

Lead time: 3-30 days after order confirmation

Packing: Standard export package for batteries

Drawing of 102540 Battery Cell

Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment

Item

Description

Dimension
T

Cell Thickness max.

 10mm
W

Cell Width max.

 25mm
H

Cell Height max.

 40.5mm

Basic Performance

No.

Item

Specification

Note
1

Rated Capacity

 1200 mAh

0.2C discharge
2

Nominal Capacity

 1200 mAh

0.2C discharge
3

Min. Capacity

 1150 mAh

0.2C discharge
4

Cell Weight

 ≈ 21g
5 Cell Initial Impedance ≤ 80mΩ

3.7V AC 1KHz measured
6

Normal Voltage

 3.7 V
7

Initial Voltage

 ≥3.8V
8 Limited Charge Voltage 4.2 V

Voltage of CC charge to CV charge

9

Standard Charging Method

0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C

10

Cut-off Voltage

 2.75 V

Load Voltage when discharge ended
11 Standard Charging Current 240mA (0.2C)

CC charge to 4.2 V, then CV charge till current declines to less than 0.01C
12 Standard Charging Time 6 hours
13 Rapid Charging Current 1200 mA (1C)
14 Rapid Charging Time About 2 hours
15 Standard Discharging Current 240mA (0.2C)

CC discharge to 2.75 V
16 Max. Discharging Current 1200 mA (1C)
17 Operating Temperature Range Charging: 10～ 45℃ Discharging: -20 ～ 60℃
18 Operating humidity Range ≤ 90%RH

Drawing of 102540 battery pack

Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment

Item

Description

Dimension
T

Battery pack Thickness max.

 10mm
W

Battery pack Width max.

 25mm
H

Battery pack Height max.

 42mm
A

Wire Length

 100± 3mm

Pack Impedance

 ≤ 180mΩ

Battery Weight

 About 22g

Pack List

No. Item Quantity Material Specification
1 Li-ion polymer cell 1 UNM 102540 1200mAh
2 PCB 1 Fiber glass polymer compound circuit board Pass RoHS
3 wire 2 Polythene and copper UL1007 26AWG
4 connector

Electrical Characteristics

No.

Item

Min

Typ

Max

Unit
1 Over-charge Protection Voltage 4.230 4.280 4.330 V
2

Over-charge Release Voltage

 4.050 4.100 4.150 V
3 Over-charge Protection Delay Time / 200 ms
4 Over-discharge Protection Voltage 2.300 2.400 2.500 V
5 Over-discharge Release Voltage 2.900 3.000 3.100 V
6 Over-discharge Protection Delay Time / 100 ms
7 Over-current Protection for Discharge 2 3.3 4.5 A
8

Internal Resistance

 / / 65 mΩ
9

Operation Static Current

 1.0 / 7.0 µA
10 Current consumption(Power down) / / 1 µA
11

Short Circuit Protection

Available
12 Short Circuit Protection Delay Time / / 600 µs

Circuit Diagram

Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment

PCB Parts List

No. Location

Part Name

 Specification Pack Type Quantity Maker/Remark
1 U1 Battery protection IC DW01 SOT-23-6 1
2 Q1 MOS 8205 TSSOP-8 1
3 R1

Resistor

 100Ω±5% 0603 1
4 R2

Resistor

 1KΩ±5% 0603 1
5 C1

Capacitor

 0.1μF 0603 1
6 PCB Print circuit board / / 1
7

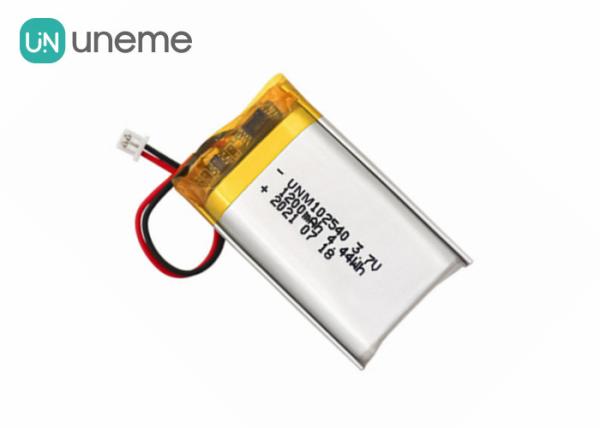

Lipo Battery 102530 Battery Picture

Customized Lithium Polymer Battery 102540 3.7V 1200mAh Battery for Beauty Equipment
