1. Battery Characteristic

• High Voltage

Each cell nominal voltage up to 3.6V, the working voltage varies with the load, generally between 3.3V ~ 3.6V

• High Energy Density

We provide the specific energy density up to 510Wh/kg

• Wide Operating Temperature Range

We provide a wide operating temperature range, from -55℃ to +85℃

• Stable Operating Voltage

Battery voltage is very stable during work, more than 90% of the capacity could be output on a fixed high voltage platform

• Long Shelf Life

Under the condition of normal temperature, the battery self -discharge rate of no more than 2% per year

Hermetic welding sealing to reduce the leakage for extending the shelf life to more than 10 years

2. Main Applications

• Security & alarms

Smoke detectors, security alarms, seismometers, locking system, monitoring system, etc.

• Military & defense

Ground force (individual soldier system, infantry fighting vehicles, robot soldier), navy (submarine, underwater robot), air force (fighters, unmanned surveillance drones), aerospace (satellites, shuttles), etc.

• Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.

3. Manufacturing Advantages

• The technology in HCB is advanced and automatic;
• There is excellent control of passivation in HCB;
• There are variety of solutions such as high power, high capacity or low temperature etc;
• We can provide multiple cascade and parallel connection ways and combining suggestions with our customers if they need;
• The safety designs are multiple.
• Since 1995, we have started to produce the Li-SOCl2 batteries and we have much experience in it.

4. Company Advantages

• The quality management system in HCB is accord with GB/T19001-2008/ISO9001:2008 standard;
• Environment Management System of HCB is conformity with GB/T24001-2004/ISO14001:2004;
• Drop test package can be provided to your ordered battery if you need;
• The package of HCB battery is very safe and we can show you the report for safe transport of the goods to you;
• CE test is available for HCB Battery;
• Rosh test is available for HCB Battery;
• We can provide you with the UL certificate if you need;

5. FAQS of General Safety Instructions

• How about the storage environment of the battery?

Storage environment should be as dry as possible.

• When the abnormal heat release or leakage occurs, what should we do?

When the abnormal heat release or leakage occurs, the battery is not able to be continued to use.

• If you have children at home, what should you pay attention when we use our battery?

You need to keep battery out of the children. Please call to a physician immediately if it is swallowed by children.

• What is the effect of the signs + and - on the battery?

Follow the signs + and - shown on the batteries and appliances. Do not reverse battery. If batteries are put in the wrong way they are bound to become hot very quickly. This can lead to gas or toxic material leakage and/or to a violent rupture.

• Can the batteries be deformed?

The batteries are able to be deformed or drilled into or damaged because the toxic materials or gas leakage may lead a big rupture.

• When the batteries are changed, what should you pay attention to?

When changing batteries be aware that batteries of different electrochemical system, grades, or brands should be not mixed. If different batteries are used or in case of using old and new batteries together this can discharge batteries due to different voltage or capacity. This can cause toxic material or gas leakage and/or violent rupture.

• Can the primary batteries be charged?

The primary batteries can’t be charged. This can cause gas leakage and will lead to violent rupture or fire.

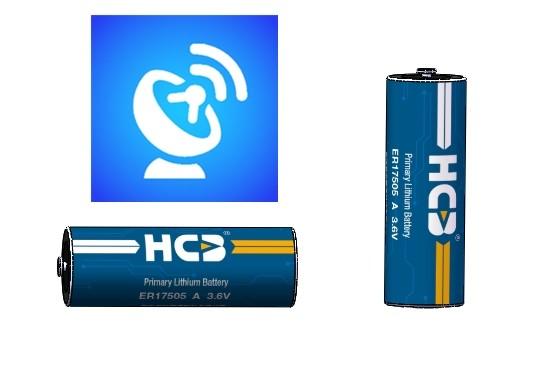

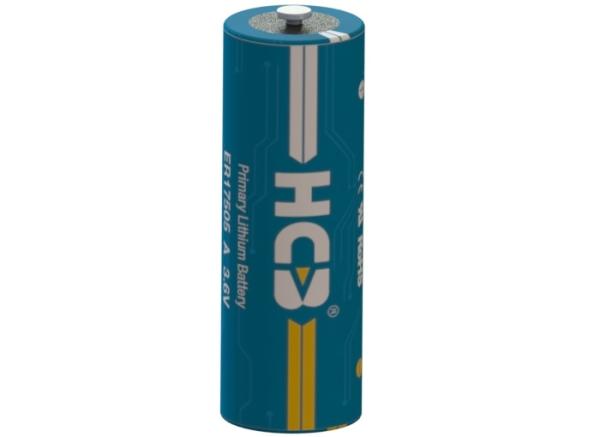

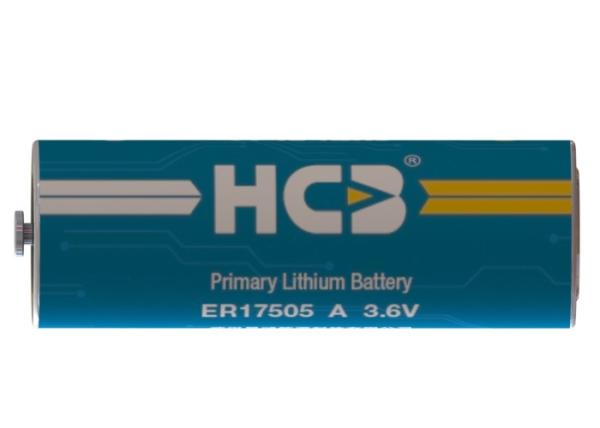

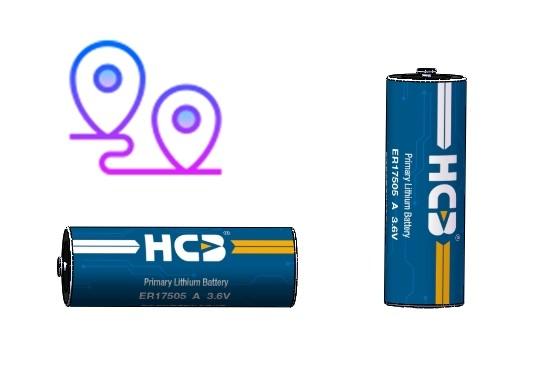

ER17505 3600mAh Li SOCl2 Battery , Stable Voltage Custom Lithium Battery Non-rechargeable NB IOT LORA GSM
