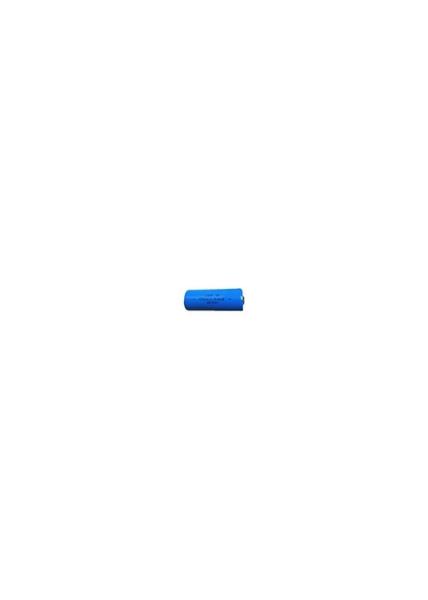

ER17450 Li-SOCl2 Industrial Lithium Batteries For Wireless Electric Power Tools
Nominal Capacity | 2800mAh |
Battery discharged at continuous current 1.5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃ | |
Nominal Voltage | 3.6 V |
Maximum Continuous Current | 120mA |
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ | |
Maximum Pulse Discharge Current | 240mA |
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ | |
Storage Condition | Temperature ≤ 30℃ Humidity ≤ 75%RH |
Operating Temperature | -55℃ to +85℃ |
Battery Dimension | See drawing on pag |
Max Weight | 22.0g |
Self-discharge Rate | 2% |
Max self-discharged rate at ambient temperature 23±2℃ | |
Shelf Life | 10 years |
Ambient temperature 23±2℃ |
1. Battery Characteristic
We offer the nominal voltage up to 3.6V, the working voltage varies with the load, generally between 3.3V ~ 3.6V
We provide the specific energy density up to 458Wh/kg

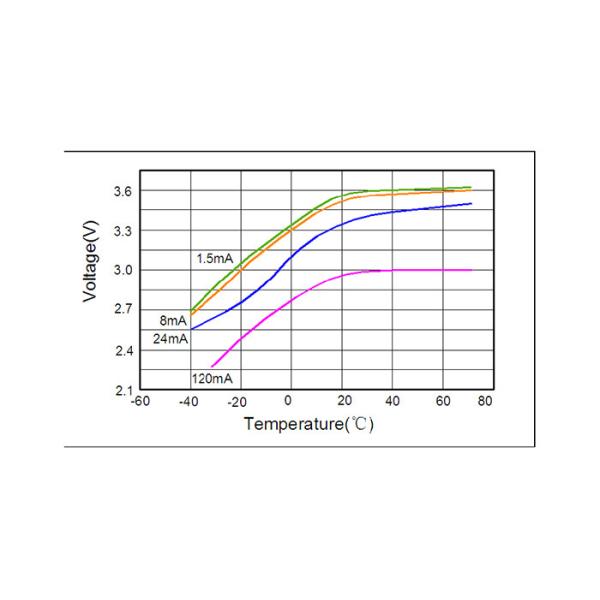

The battery with a strong adaptability to temperature can be in work between -55℃ ~ +85℃
Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage
The battery self-discharge less than 2% per year at room temperature
Hermetic welding sealing to reduce the leakage for extending the shelf life to more than 10 years
2. Main Applications
Wireless telecommunication devices
Wireless electric power tools, computer RAM & COMS, UPS, CNC machine tools, (TPMS), camera, video camera, timer, calculator, electric toys, lighting equipment, etc.
Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.
3. Manufacturing Advantages
4. Company Advantages
5. FAQS of General Safety Instructions
The Battery should be stored in dry environment.
The manual should be read before the battery is used.
The battery should be kept out of the children firstly. If swallowed by children, please contact a physician at once.
Follow the signs + and - shown on the batteries and appliances. Do not reverse battery. If batteries are put in the wrong way they are bound to become hot very quickly. This can lead to gas or toxic material leakage and/or to a violent rupture.
They are going to be hot in very short time and it will lead the leakage of gas and toxic materials which may cause a big rupture.
When changing batteries be aware that batteries of different electrochemical system, grades, or brands should be not mixed. If different batteries are used or in case of using old and new batteries together this can discharge batteries due to different voltage or capacity. This can cause toxic material or gas leakage and/or violent rupture.
If you charge the primary batteries, it can lead to toxic material or gas leakage and maybe cause big rupture or fire.
