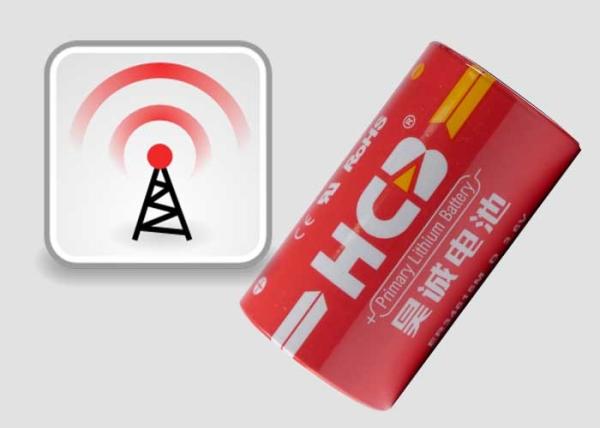

Non rechargeable Li-SOCl2 3.6 V battery for smart metering, high power and high voltage ER34615M lithium battery
Non rechargeable Li-SOCl2 3.6 V battery for smart metering, high power and high voltage ER34615M lithium battery
Non rechargeable Li-SOCl2 3.6 V battery for smart metering, high power and high voltage ER34615M lithium battery
Non rechargeable Li-SOCl2 3.6 V battery for smart metering, high power and high voltage ER34615M lithium battery
Specifications
Brand Name :
HCB
Model Number :
ER34615M
Certification :
UN/CE/UL
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Two millions unit per month
Delivery Time :
35 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Type :
Primary Battery
Sealing Type :
Hermetic Sealing
Nominal Capacity(mAh) :
14000
Standard Discharge Current(mA) :
20
Self-discharge Rate :
≤2%/year
Maximum Continuous Current :
2000mA
Maximum Pulse Discharge Current :
4000mA
Model Name :
ER34615M
Description

Non rechargeable Li-SOCl2 3.6 V battery for smart metering, high power and high voltage ER34615M lithium battery

Nominal Capacity 14000mAh
Battery discharged at continuous current 20mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.6 V
Maximum Continuous Current 2000mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 4000mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -55℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 108.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

We offer the rated voltage of 3.6V, the working voltage varies with the load, generally between 3.3V ~ 3.6V

  • High Energy Density

We offer the specific energy density of 466Wh/kg

  • Wide Operating Temperature Range

We provide a wide operating temperature range, from -55℃ to +85℃

  • Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage

  • Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

Battery sealing using the fully sealed structure to reduce the leakage of the battery, make the battery can be stored at room temperature for more than 10 years

2. Main Applications

  • Marine & signaling

Life jacket, signal light, buoy, etc.

  • Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.

  • Tracking

RFID products, road toll transponder, IC cards, etc.

Non rechargeable Li-SOCl2 3.6 V battery for smart metering, high power and high voltage ER34615M lithium battery
