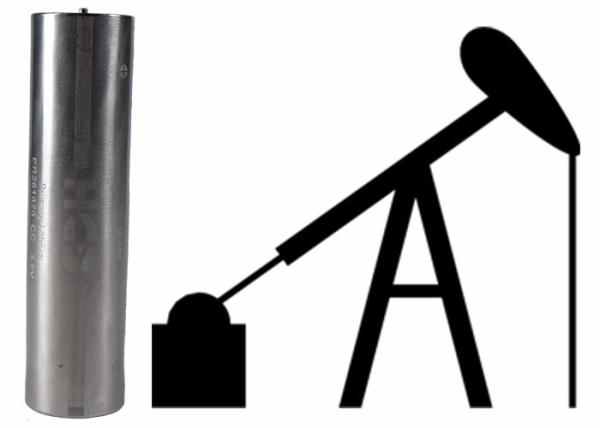

ER261020 Li-SOCl2 Cell High Power Lithium Battery 15000mAh With Low Self Discharge GSM LORA GPRS NB-IOT
ER261020 Li-SOCl2 Cell High Power Lithium Battery 15000mAh With Low Self Discharge GSM LORA GPRS NB-IOT
ER261020 Li-SOCl2 Cell High Power Lithium Battery 15000mAh With Low Self Discharge GSM LORA GPRS NB-IOT
ER261020 Li-SOCl2 Cell High Power Lithium Battery 15000mAh With Low Self Discharge GSM LORA GPRS NB-IOT
ER261020 Li-SOCl2 Cell High Power Lithium Battery 15000mAh With Low Self Discharge GSM LORA GPRS NB-IOT
ER261020 Li-SOCl2 Cell High Power Lithium Battery 15000mAh With Low Self Discharge GSM LORA GPRS NB-IOT
Specifications
Brand Name :
HCB
Model Number :
ER261020
Certification :
UN/CE/UL/RoHS
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
Two millions unit per month
Delivery Time :
5 working days
Packaging Details :
Special design for Air/Sea/Courier transportation
Automatic discharge rate :
≤2%
Peak pulsing current :
500mA
Storing temperature :
≤30℃
Operating Temperature :
-55℃ ~ +85℃
Time of Storage :
10 years at room temperature
Ambient Humidity in Storage :
≤ 75%RH
Nominal Capacity :
15000mAh
Maximum Continuous Current :
250mA
Description

ER261020 Li-SOCl2 Cell High Power Lithium Battery With Low Self Discharge 15000mAh Video camera Timer Calculator COMS

Nominal Capacity 15000mAh
Battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃2℃
Nominal Voltage 3.6 V
Maximum Continuous Current 250mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 500mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -55℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 100.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

The nominal voltage of single cell up to 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V

  • High Energy Density

We offer the specific energy density of 540Wh/kg

  • Wide Operating Temperature Range

The battery with a strong adaptability to temperature can be in work between -55℃ ~ +85℃

  • Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage

  • Long Shelf Life

Under the condition of normal temperature, the battery self -discharge rate of no more than 2% per year

Battery sealing using the fully sealed structure to reduce the leakage of the battery, make the battery can be stored at room temperature for more than 10 years

2. Main Applications

  • Infrastructures

Automatic meters (water meter, electric meter, gas meter), conventional meters, etc.

  • Medical devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

  • Tracking

RFID products, road toll transponder, IC cards, etc.

3. Manufacturing Advantages

  • The technology in HCB is advanced and automatic;
  • The passivation in HCB is very excellently controlled;
  • High power, high capacity or high temperature batteries are produced in HCB;
  • We can provide multiple cascade and parallel connection ways and combining suggestions with our customers if they need;
  • We have more than 20 years experience in the industrial technology of Li-SOCl2 batteries.
  • We have designed multiple safety solutions for Li-SOCl2 Battery.
