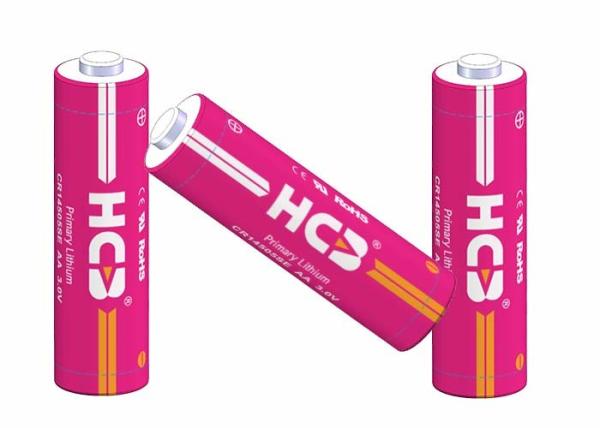

Bobbin Glass to metal Seal 3V Primary Li-MnO2 Battery AA 1800mAh CR14505SE
Bobbin Glass to metal Seal 3V Primary Li-MnO2 Battery AA 1800mAh CR14505SE
Specifications
Brand Name :
HCB
Model Number :
CR14505SE/AA
Certification :
UL/RoHS/UN/CE
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Two millions unit per month
Delivery Time :
35 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Type :
Non-Rechargeable
Classification :
Bobbin/Glass-to-metal Seal
Max Pulse Current(mA) :
100mA
Max Size(mm) :
Φ14.5×50.5
Nominal Capacity :
1800mAh
Maximum Continuous Current :
10mA
Description

Bobbin Glass-to-metal Seal 3V Primary Li-MnO2 Battery AA 1800mAh CR14505SE

Nominal Capacity 1800mAh
Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.0 V
Maximum Continuous Current 10mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 100mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -40℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 22.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

Single cell rated voltage 3.0V

  • High Energy Density

The specific energy density of each battery is 245Wh/kg

  • Wide Operating Temperature Range

We provide a wide operating temperature range, from -40℃ to +85℃

  • Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

2. Main Applications

  • Security

Smoke detectors, security alarms, seismometers, digital door lock system, etc.

  • Internet of Things

Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.

3.HCB Battery Co., Ltd. was founded in 2001. As a leading primary lithium battery manufacturer and solution provider in China, HCB remains dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.

With every improvement that is made, HCB continues to pursue perfection. Technological development & innovation are of great importance to HCB. We have been focusing on providing reliable products & services to the customers worldwides for more than 22 years.

Bobbin Glass to metal Seal 3V Primary Li-MnO2 Battery AA 1800mAh CR14505SE
