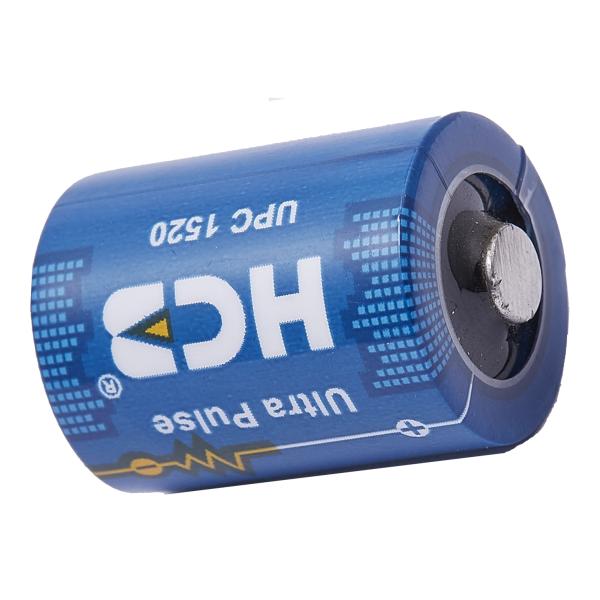

Ultra Pulse Capacitors UPC1520 Capaticy at 3.67V 140As Hermetically Sealed Up to 5A pulse

Wide Operating Temperature Range
• -40°C to +85°C
High Pulse Capability
• Up to 5A pulse
High Reliability
• The UPC is parallel connected with a battery or several batteries to
eliminate voltage delay and to increase the pulse current capability
• Low leak current 1~15μA

2. Main Applications:

• Medical Devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

• Marine & Lifesaving

Life jacket, signal light, buoy, etc.

• Oil & Gas

Well pressure meters, float meters, logging while drilling(LWD), measure while drilling(MWD), etc.

3. Electrical Cha racteristics(T emperature 23±2℃)

Capaticy at 3.67V 140As
Cut-off Voltage 2.5V
Maximum Continuous Discharge Current 0.5A

Maximum Pulse Discharge Current(1s) 2.0A
Maximum Charge Voltage 3.95V
Maximum Charge Current 25mA
Internal Resistance(1kHz@RT) ≤200mΩ
Leakage Current@RT 3μA
Leakage Current@80℃ 6μA
